Instructions for the user

29

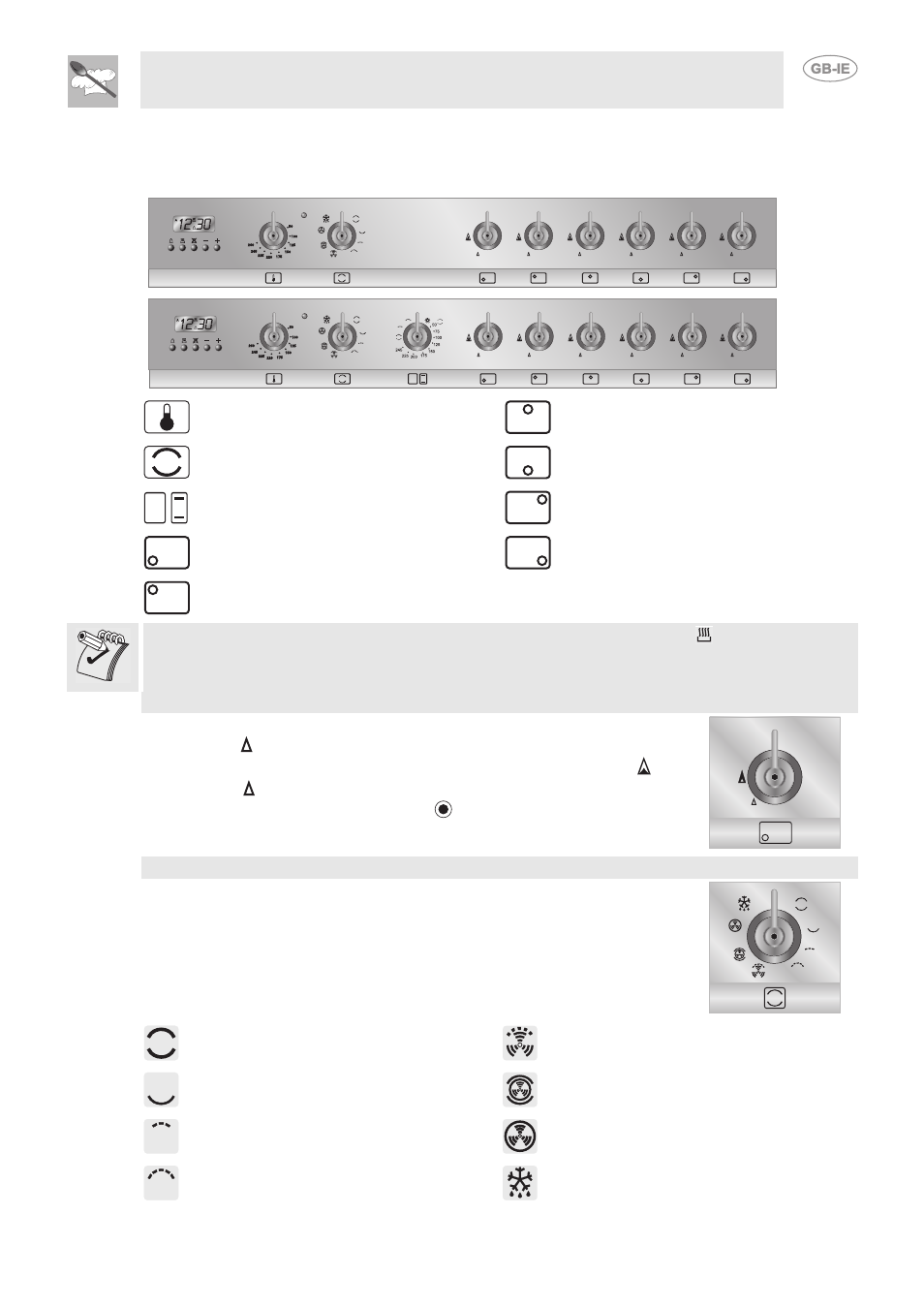

7. DESCRIPTION OF FRONT PANEL CONTROLS

All the control and monitoring devices are clearly in view on the front panel. The symbols used are
described in the table below.

OVEN THERMOSTAT

CENTRAL RIGHT-HAND BURNER

FUNCTION SELECTOR KNOB

FRONT CENTRAL BURNER

FRONT LEFT-HAND BURNER

REAR RIGHT-HAND BURNER

FRONT LEFT-HAND BURNER

FRONT RIGHT-HAND BURNER

REAR LEFT-HAND BURNER

Before using the oven/main oven, check that the display is showing the symbol (see paragraph “11.
ELECTRONIC PROGRAMMER”.

HOB BURNER CONTROL KNOB

To light the flame, press the knob and turn it anti-clockwise to the minimum

flame symbol .

To adjust the flame, turn the knob to the zone between the maximum (

) and

the minimum ( ) settings.
To turn off the burner, turn the knob to the

position.

FUNCTION SELECTOR KNOB

The electric oven's various functions are suitable for different cooking modes.
After selecting the function required, set the cooking temperature using the
thermostat knob.

TOP AND BOTTOM HEATING ELEMENTS

GRILL ELEMENT + VENTILATION

BOTTOM HEATING ELEMENTS

TOP + BOTTOM HEATING ELEMENTS +
VENTILATED HEATING ELEMENT

WIDE GRILL ELEMENT

VENTILATED HEATING ELEMENT

GRILL ELEMENT

DEFROSTING
