Instructions for the installer
42
15.2 Burner and nozzle characteristics table
Burner
Rated heating
capacity (kW) LPG – G30/G31 28/37 mbar
Nozzle
diameter 1/
100 mm
By-pass
1/100
mm
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary 1.0 50 30 400 73 71
Semi rapid 1.8 65 33 500 127 125
Rapid 3.0 85 45 800 218 214
Ultra-rapid 4.0 100 65 1600 291 286
Burner
Rated heating
capacity (kW)
NATURAL GAS – G20/G25 20/25 mbar
Nozzle diameter
1/100 mm
Reduced flowrate
(W)
Auxiliary 1.0 72 (X) 400
Semi rapid 1.8 97 (Z) 500
Rapid 3.0 115 (Y) 800
Ultra-rapid 4.0 135 (K) 1600

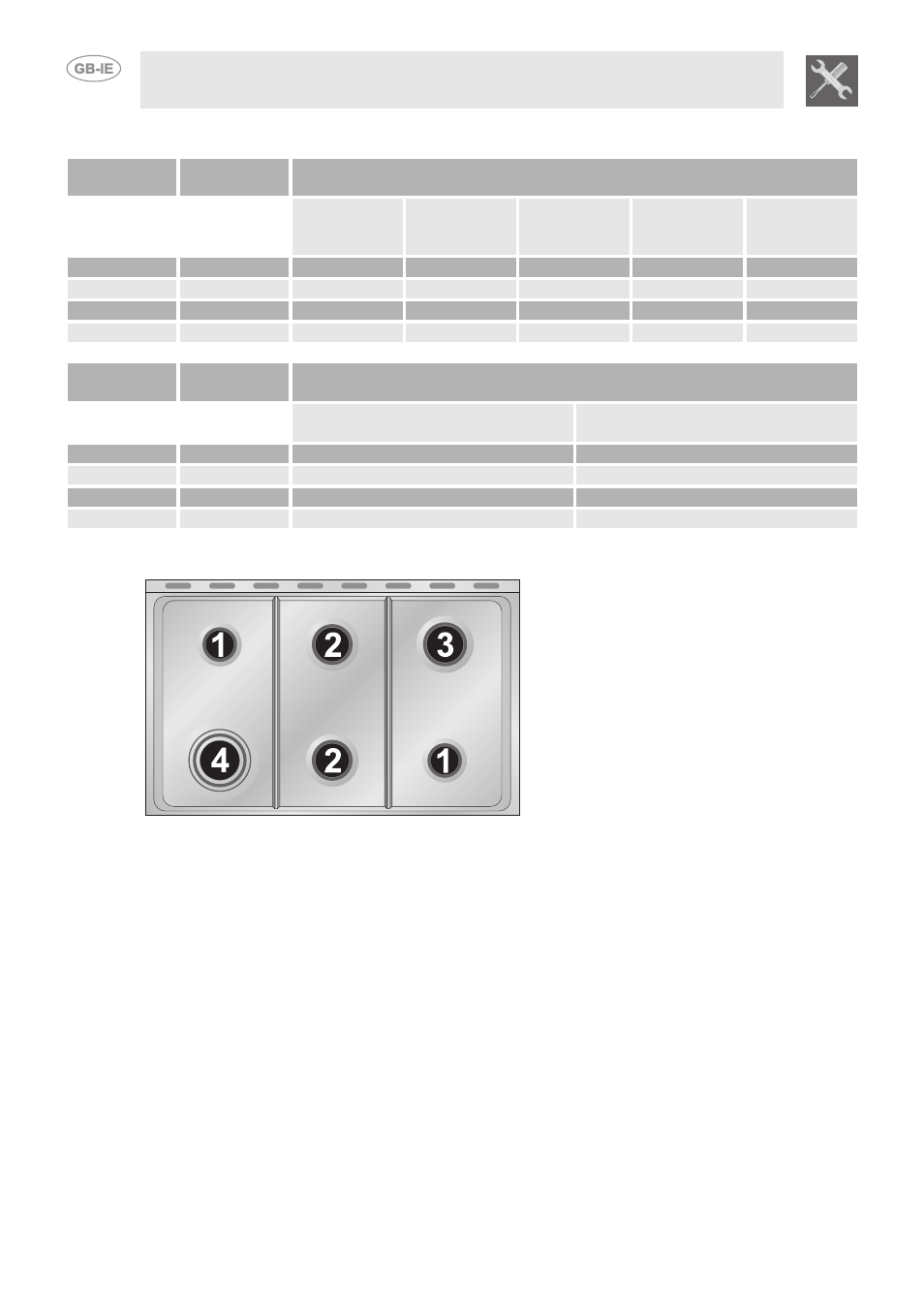

15.3 Arrangement of the burners on the hob
BURNERS
1. Auxiliary
2. Semi-rapid
3. Rapid
4. Ultra-rapid
min. and max. Ø (in
cm)
12 - 14
16 - 24
18 - 26
18 - 26
