Instructions for the installer
40

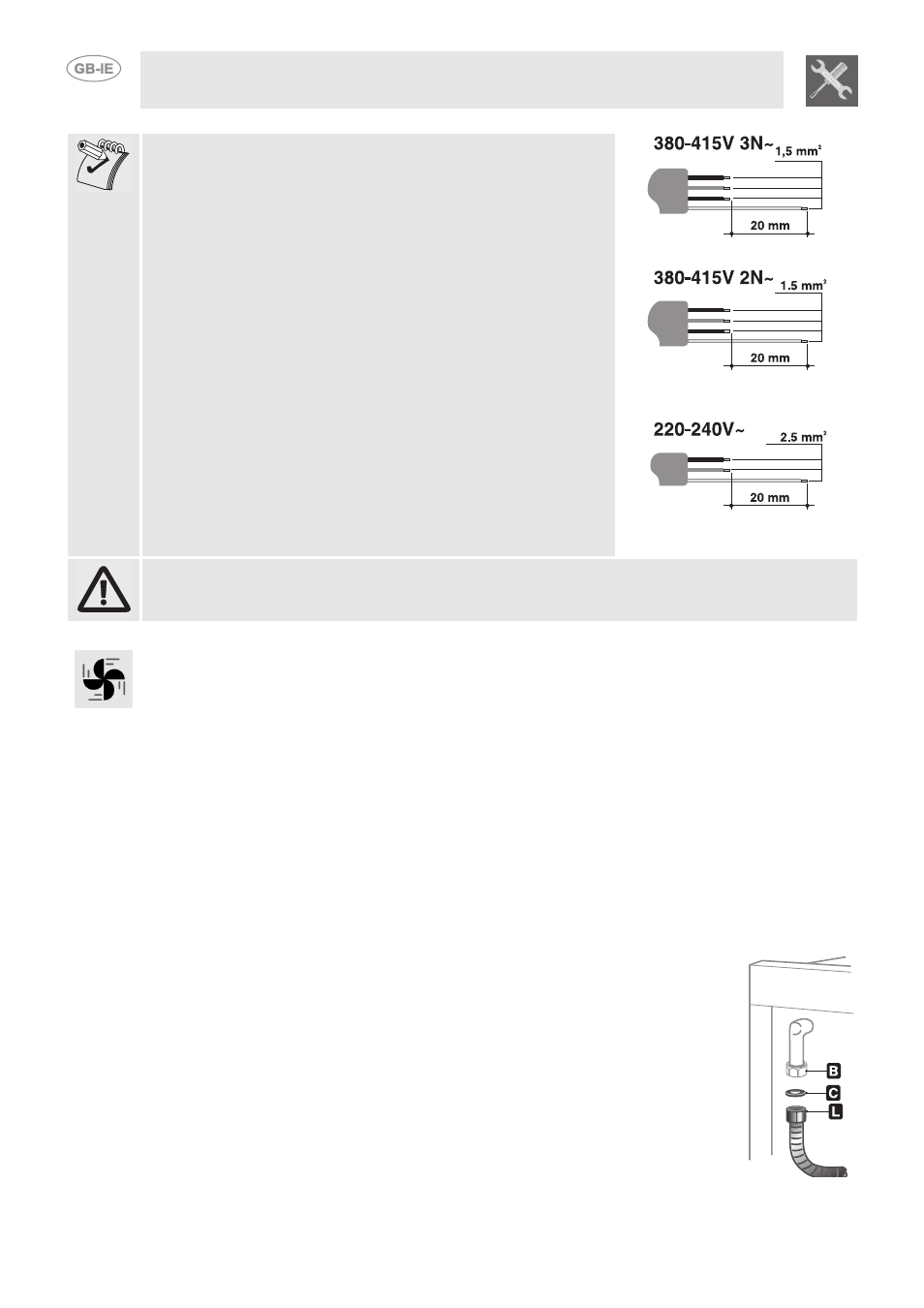

For operation on 380-415V 3N~: use an H05V2V2-F type five-core
cable (5 x 1.5 mm
2
).
For operation on 380-415V 3N~: use an H05V2V2-F type four-core
cable (4 x 1.5 mm 2 ).
For operation on 220-240V~: use an H05V2V2-F type three-core
cable (3 x 2.5 mm 2 ).
The earth wire (yellow-green) must be at least 20 mm longer than
the other wires at the end for connection to the appliance.
The manufacturer declines all responsibility for damage to persons or things caused by non-
observance of the above prescriptions.
14.2 Ventilation requirements
The room containing the appliance should have an air supply in accordance with B.S. 5440 part 2 1989.
1 All rooms require an opening window or equivalent, and some rooms will require a permanent vent as
well.
2 For room volumes up to 5 m
3
an air vent of 100 cm
2
is required.
3 If the room has a door that opens directly to the outside, and the room exceeds 1 m
3
no air vent is
required.
4 For room volumes between 5 m
3
and 10 m
3
an air vent of 50 cm
2
is required.
5 If there are other fuel burning appliances in the same room B.S. 5440 part 2 1989 should be
consulted to determine the air vent requirements.
6 This appliance must not be installed in a bed sitting room of less than 20 m
3
or in a bathroom or
shower room.
Windows and permanent vents should therefore not be blocked or removed without first consulting a
Corgi gas installer. Failure to install appliances correctly is dangerous and could lead to
prosecution.
14.3 Connecting to natural and LPG gas (Please see connection diagram)
Make the connection to the appliance using flexible bayonet style hose in
accordance to B.S. 669. The hose connection at the rear of the appliance
has a ½” BSP internal thread. Please use seal C between the flexible
connection L and the appliance supply tube B. When making the connection,
make sure that no stress of any kind is applied to the cooker and that the
hose does not touch any sharp edges. If connecting to LPG the bayonet
hose must have red bands on it.
