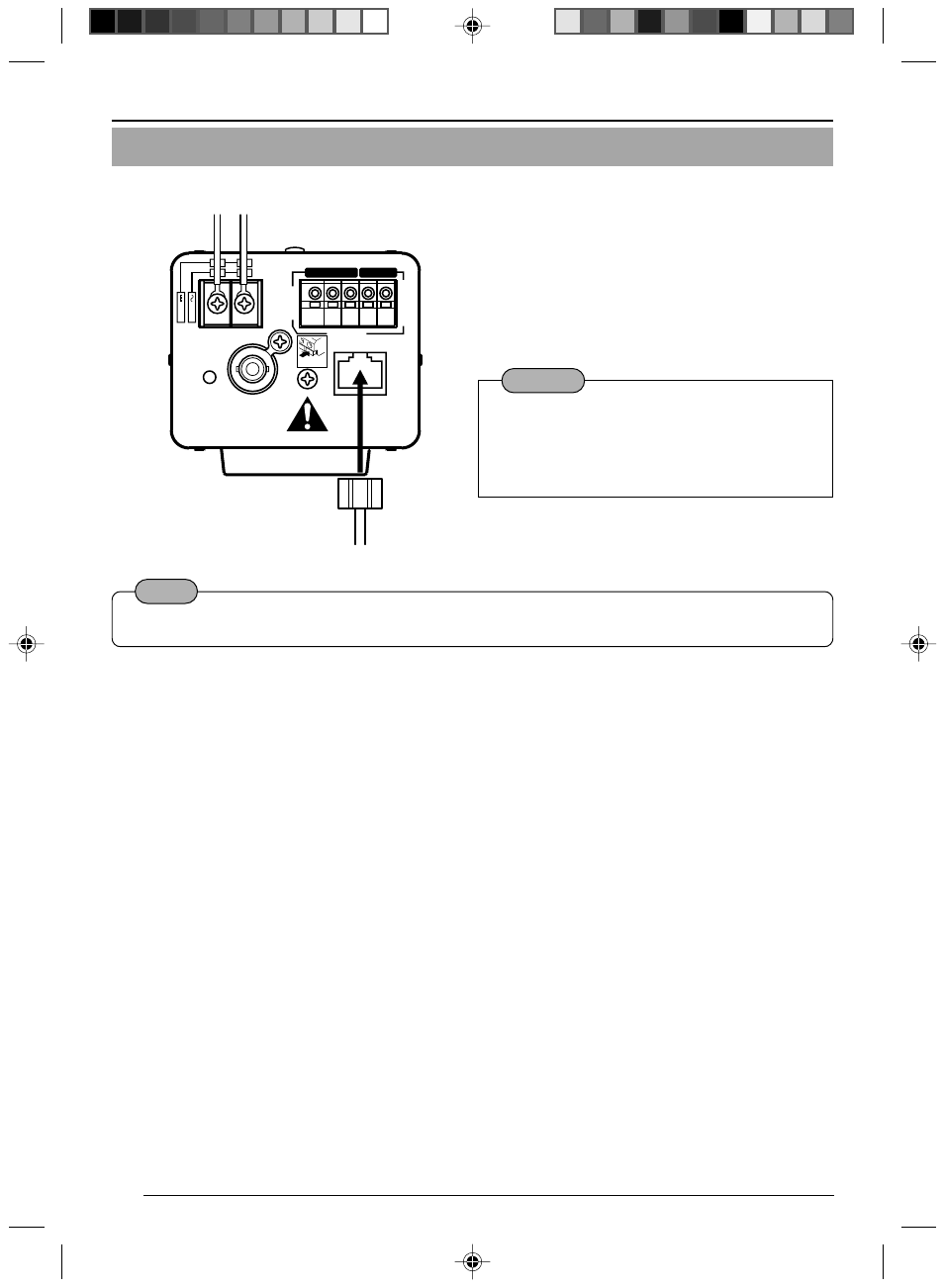

Connecting a LAN Cable
Connect the camera to a hub or a PC by using a LAN cable.
Note
For 100 BASE-TX, use a CAT-5 cable.
2 1
CLASS
2
ONL
Y
Fo
r
USA
ISOLA
TED
PO
WER
ONL
Y
For EUR
OPE
POWER MONITOR OUT 10BASE-T/100BASE-TX
For USA
DO NOT CONNECT TO THE
TELEPHONE NETWORK
G 2 1 OUT COM
ALARM
DC12V A
C24V
OUTPUT
INPUT
PUSH
• For hub connection
Use a straight cable.
• For PC connection
Use a cross-over cable.
Caution
There are a few types of LAN board for
which a cross-over cable cannot be used.
Check the specifications of the LAN board
to be used before performing connection.
