INSTALLING YOUR NEW VCR
INSTALLING YOUR NEW VCR

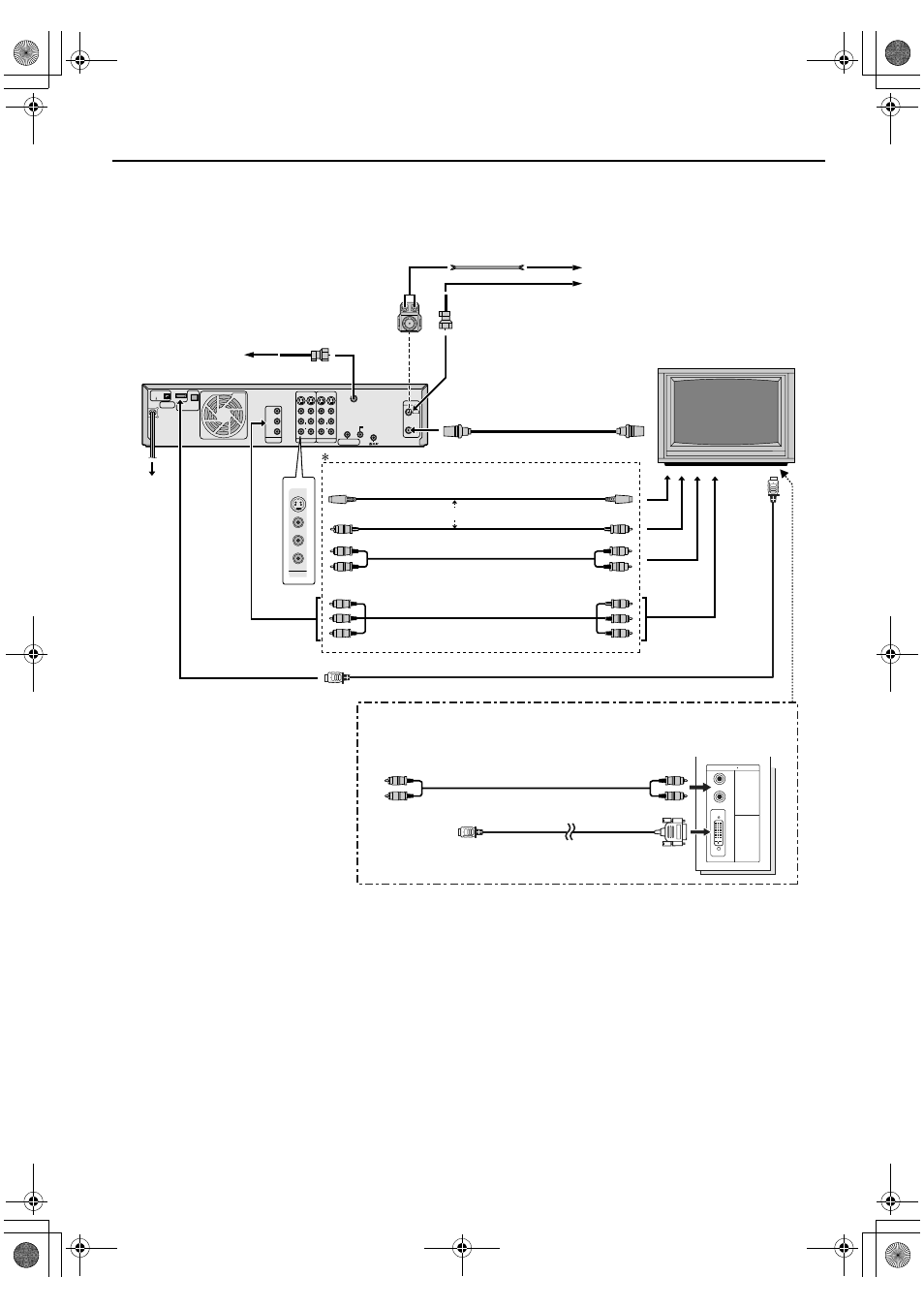

Connections
NOTES:
•
VCR video output is not possible through RF connection. To view a tape or broadcast program, either analog (Component Video, S-
Video or Video) or digital (HDMI) video output must be connected.
•
HDMI will be automatically activated (HDMI-ON) when a HDMI connection has been made. To de-activate (HDMI-OFF), press
[HDMI] on the front panel and the [HDMI] LED will turn off.
During HDMI-ON ([HDMI] LED on), the image format output to the TV connected via the HDMI connector will be in accordance to
the image format of the TV. During HDMI-OFF ([HDMI] LED off), the image format output to the TV is in accordance to this VCR’s
“IN/OUT FUNCTION” menu settings “TV OUTPUT 1” and “TV OUTPUT 2” (
page 67). If the picture cannot be properly
displayed on the TV when using the HDMI to DVI connection, try setting HDMI to OFF.
If your TV is not High-Bandwidth Digital Content Protection (HDCP) compatible, the pictures will not be properly displayed on the
TV. In this case, use the component video, s-video or video connection.
•
If you have made a component video connection and your TV’s component video connectors support only high definition signal
format, connect also the S-VIDEO or VIDEO connectors between the VCR and TV in order to view the picture of 480i image format
output from the VCR.
•
To ensure that you can record one show while watching another (
page 38), you must also connect the VCR to the TV using the
RF cable.
•
For full identification of the VCR’s rear panel, refer to the Index (
REMOTE PAUSE/
AV COMPULINK
CABLE BOX
ATSC IN
VHF/UHF
IN
ANTENNA
ANTENNA
L-2
PCM/STREAM
DIGITAL AUDIO OUT
OPTICAL
P
B
/C
B
P
R
/C
R
Y
COMPONENT
VIDEO OUT
OUTPUT
HDMI OUT
D-THEATER
REGION 1
i.LINK IN/OUT
DV IN
L-1
S400
INPUT
S-VIDEO
VIDEO
L
AUDIO
R
S-VIDEO
VIDEO
L
AUDIO
R
OUT
OUTPUT
S-VIDEO
VIDEO
L
AUDIO
R
DIGITAL IN
AUDIO
VIDEO
R
L
TV (HD Ready)
Back of VCR
To 75K terminal
OR
AC Outlet
To [HDMI OUT]
To [HDMI OUT]
HDMI to DVI conversion cable
(commercially available, not
supplied)
When your TV has only DVI input, you can use a commercially available HDMI
to DVI conversion cable to connect between the VCR and your TV.
Also, connect the VCR’s [AUDIO OUTPUT] to the TV’s audio input connectors.
To DVI
connector
To Audio Input Connectors
Antenna or Cable
Coaxial Cable
Flat Feeder
Matching Transformer
(not supplied)
To [S-VIDEO OUTPUT]
RF Cable (supplied)
To [ANTENNA OUT]
To [AUDIO OUTPUT]
To [ANTENNA IN]
(Antenna or cable input)
To [VIDEO OUTPUT]
To [COMPONENT
VIDEO OUT]
HDMI Cable (not supplied)
S-Video Cable
(supplied)
Video Cable
(not supplied)
Audio Cable
(supplied)
To HDMI
Connector
To S-Video Input
Connector
To Video
Input Connector
Component Video Cable (not supplied)
To Component Video Connectors
Antenna or Cable for
digital broadcast
Coaxial Cable
To [ATSC IN]
To Audio Input Connectors
Audio Cable (supplied)
To [AUDIO OUTPUT]
