7
SPECIFICATIONS
Type : Color video monitor
Color system : NTSC
Picture tube : 9" measured diagonally,
90 ° deflection, in-line gun,
vertical stripe phosphor pitch
0.5 mm
Screen size (W x H) : 6-13/16" x 5-3/8" (173 x 136 mm)
Scanning frequency : (H) 15.734 kHz
(V) 59.94 Hz
Horizontal resolution : 280 TV lines or more
Video input : 1 line, BNC x 2 (with 1 bridge-
connected output),
1.0 V p-p, 75 Ω , negative sync,
bridge connection possible (termi-
nation switch provided)
Audio input : TM-A9U only
1 line (monaural), RCA x 2 (with 1
bridge-connected output), 0.5 V
rms, high impedance, bridge
connection possible
Audio power output : TM-A9U only
(effective) 1 W (monaural)
Built-in speaker : TM-A9U only
3-3/16" (8 cm) round, 8 Ω x 1
Operation : 0 – 40
°
C (32 – 104
°
F)
temperature
Relative humidity : 20 – 80 %
Power requirements : 120 V AC, 60 Hz
Power consumption : 0.66 A maximum [TM-A9U]
0.63 A maximum [TM-A9UCV]
Dimensions : 8-3/4" x 9" x 12-1/2"
(W x H x D) (222 x 227 x 317 mm)
Weight : 15.4 lbs (7.0 kg ) [TM-A9U]
15.2 lbs (6.9 kg ) [TM-A9UCV]

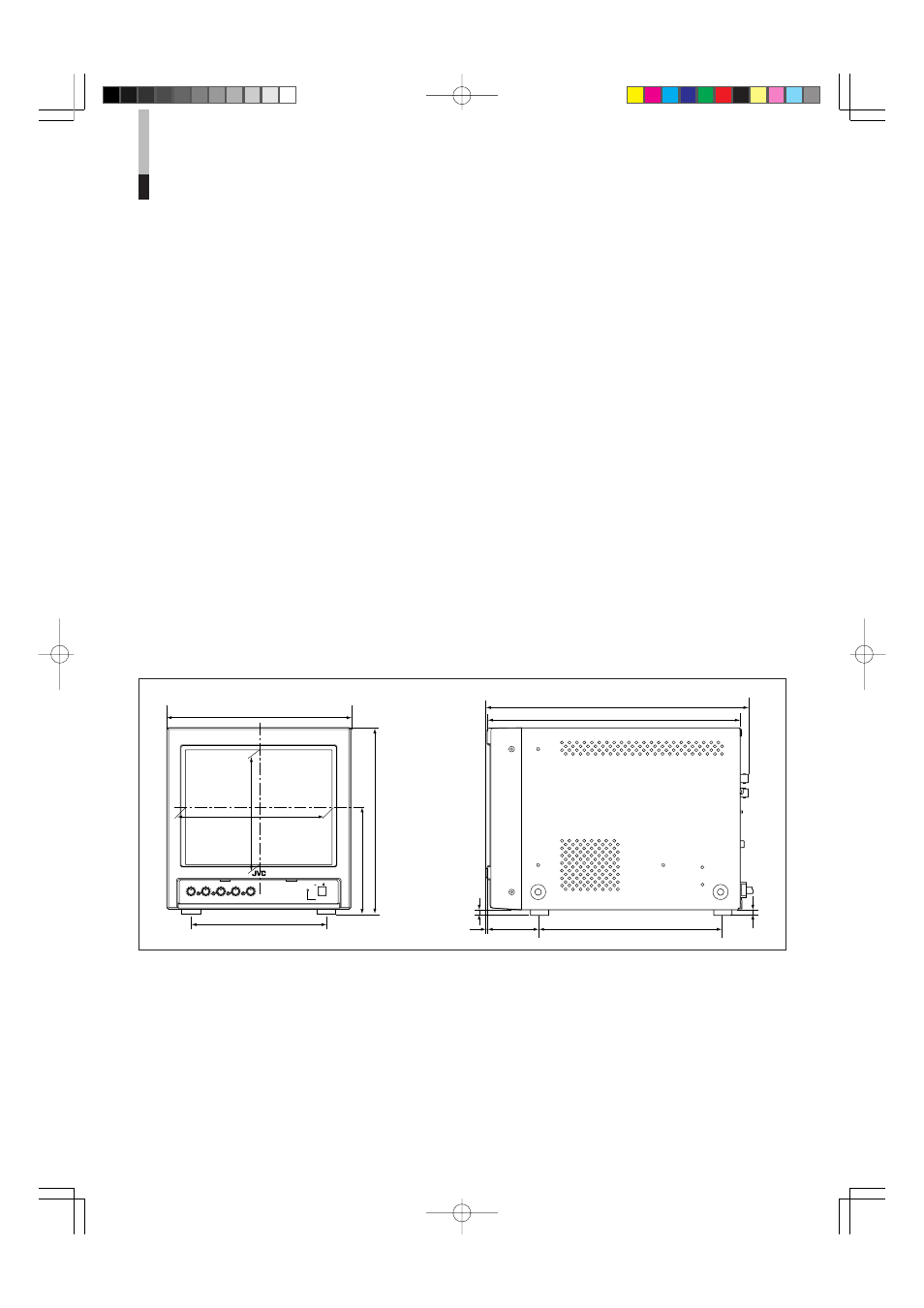

Dimensions
8-3/4" (222 mm)
12-1/2" (317 mm)
8-3/4" (222 mm)
6-1/2" (164 mm)
7-1/8" (178 mm)*
12-1/8" (305 mm)
3/8" (7 mm)
5-1/4" (131 mm)
9" (227 mm)
5-5/8" (140 mm)
*
3/8" (7 mm) 2-1/2" (63.5 mm)
1/16" (1.3 mm)
POWER CONTRAST BRIGHT CHROMA PHASE VOLUME
ON OFF
* The faceplate dimensions shown are larger than the visible portion of the screen (screen size).
E. & O.E. Design and specifications subject to change without notice.
(TM-A9U shown.)
