Ground Pressure Data 270D LC
Average Ground Pressure
32-in. (800 mm) Triple Semi-Grouser Shoes
(recommended for general/soft terrain) . . . 5.84 psi (40.3 kPa)
Capacities (U.S.)
Fuel Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 gal. (500 L)
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . 31.6 qt. (29.9 L)
Engine Lubrication, Including Filter . . . . . . . . . . . . 26 qt. (24.6 L)
Hydraulic Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 gal. (148 L)
Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . 63.4 gal. (240 L)
Propel Gearbox (each) . . . . . . . . . . . . . . . . . . . . . . 9 qt. (8.5 L)
Swing Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 qt. (7.6 L)
SAE Operating Weights
With Full Fuel Tank; 175-lb. (79 kg) Operator;
1.75-cu.-yd. (1.34 m 3 ), 42-in. (1065 mm),
2,279-lb. (1034 kg) Bucket; 12-ft. 4-in.
(3.75 m) Arm; 13,447-lb. (6100 kg) Counter-
weight; and 32-in. (800 mm) Triple Semi-
Grouser Shoes. . . . . . . . . . . . . . . . . . . . . . . . . 63,425 lb. (28 770 kg)
Component Weights
Undercarriage
32-in. (800 mm) Triple Semi-Grouser Shoes . . . 25,937 lb. (11 765 kg)
One-Piece Boom (with arm cylinder) . . . . . . . . . . . 5,086 lb. (2307 kg)
Arm with Bucket Cylinder and Linkage
10 ft. 2 in. (3.11 m). . . . . . . . . . . . . . . . . . . . . 3,102 lb. (1407 kg)
12 ft. 4 in. (3.75 m). . . . . . . . . . . . . . . . . . . . . 3,298 lb. (1496 kg)
Boom Lift Cylinders (2) Total Weight . . . . . . . . . . . 1,098 lb. (494 kg)
1.75-cu.-yd. (1.34 m
3 ), 42-in. (1065 mm)
Heavy-Duty High-Capacity Bucket. . . . . . . . . . 2,279 lb. (1034 kg)
Counterweight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13,447 lb. (6100 kg)
Operating Information
Arm Length Arm Length
10 ft. 2 in. (3.11 m) 12 ft. 4 in. (3.75 m)
Arm Force with 32-in. (800 mm) Triple Semi-
Grouser Shoes* . . . . . . . . . . . . . . . . . . . . . . . . 29,518 lb. (131.3 kN) 25,979 lb. (115.55 kN)
Bucket Digging Force with 32-in. (800 mm)
Triple Semi-Grouser Shoes* . . . . . . . . . . . . . . 37,480 lb. (166.7 kN) 37,480 lb. (166.7 kN)
Lifting Capacity Over Front @ Ground Level
20-ft. (6.1 m) Reach* . . . . . . . . . . . . . . . . . . . 20,773 lb. (9423 kg) 19,727 lb. (8948 kg)

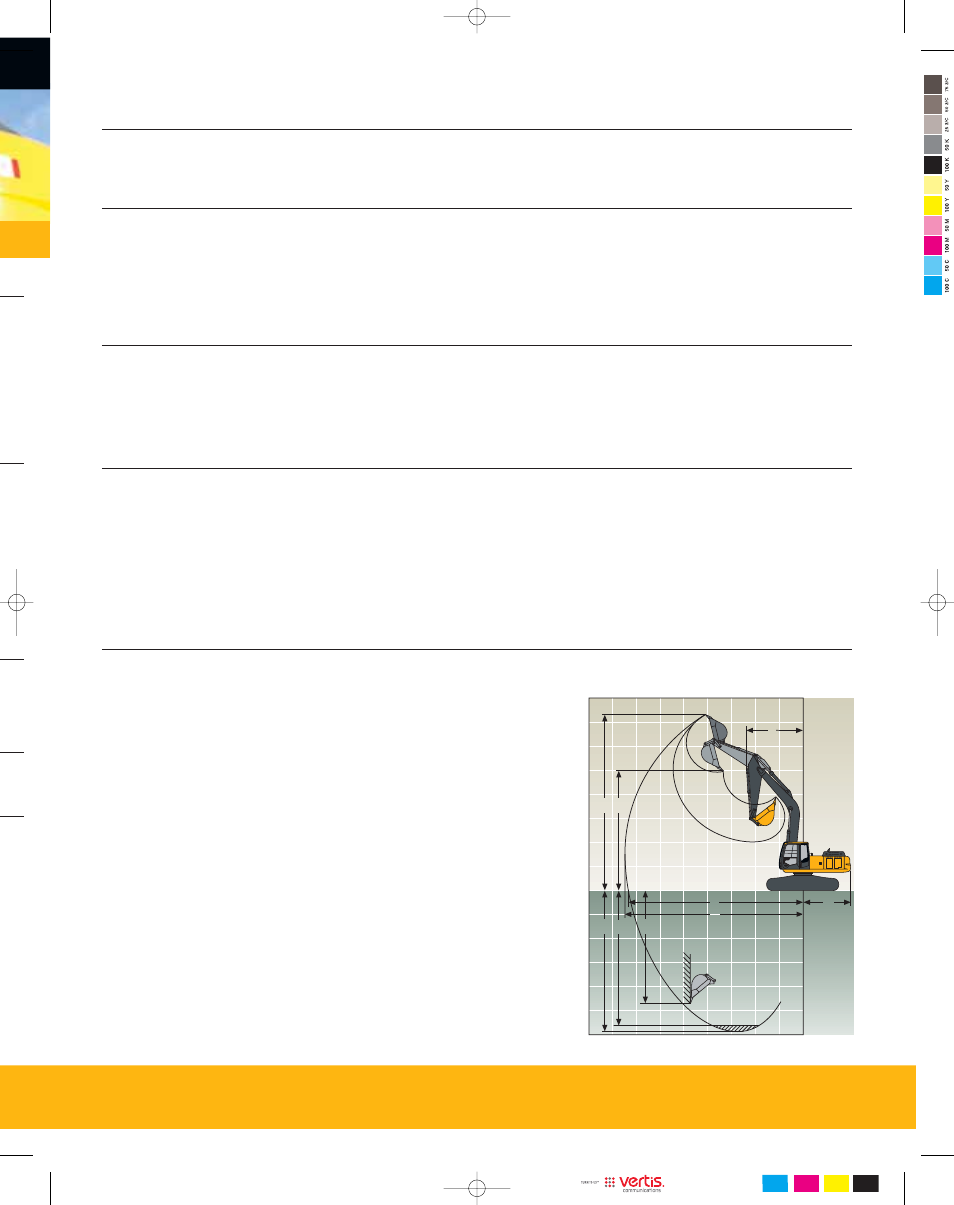

A Maximum Reach . . . . . . . . . . . . . . . . . . . . . . 35 ft. 3 in. (10.74 m) 37 ft. 1 in. (11.30 m)
A' Maximum Reach @ Ground Level . . . . . . . . . 34 ft.7 in. (10.55 m) 36 ft. 6 in. (11.12 m)
B Maximum Digging Depth . . . . . . . . . . . . . . . . 23 ft. 10 in. (7.26 m) 25 ft. 11 in. (7.91 m)
B' Maximum Digging Depth @ 8-ft. (2.44 m)
Flat Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . 23 ft. 2 in. (7.05 m)
25 ft. 8 in. (7.72 m)
C Maximum Cutting Height . . . . . . . . . . . . . . . . 32 ft. 10 in. (10.01 m) 34 ft. 4 in. (10.46 m)
D Maximum Dumping Height . . . . . . . . . . . . . . 23 ft. 2 in. (7.07 m) 24 ft. 7 in. (7.49 m)
E Minimum Swing Radius. . . . . . . . . . . . . . . . . 13 ft. 7 in. (4.41 m) 12 ft. 9 in. (3.89 m)
F Maximum Vertical Wall. . . . . . . . . . . . . . . . . . 20 ft. 1 in. (6.11 m) 23 ft. 1 in. (7.03 m)
G Tail Swing Radius . . . . . . . . . . . . . . . . . . . . . 9 ft. 8 in. (2.94 m) 9 ft. 8 in. (2.94 m)
*Digging forces and lift capacities with power boost.
E
GROUND LINE
B
C D
F
G
CENTERLINE OF SWING
B'
A'
A
