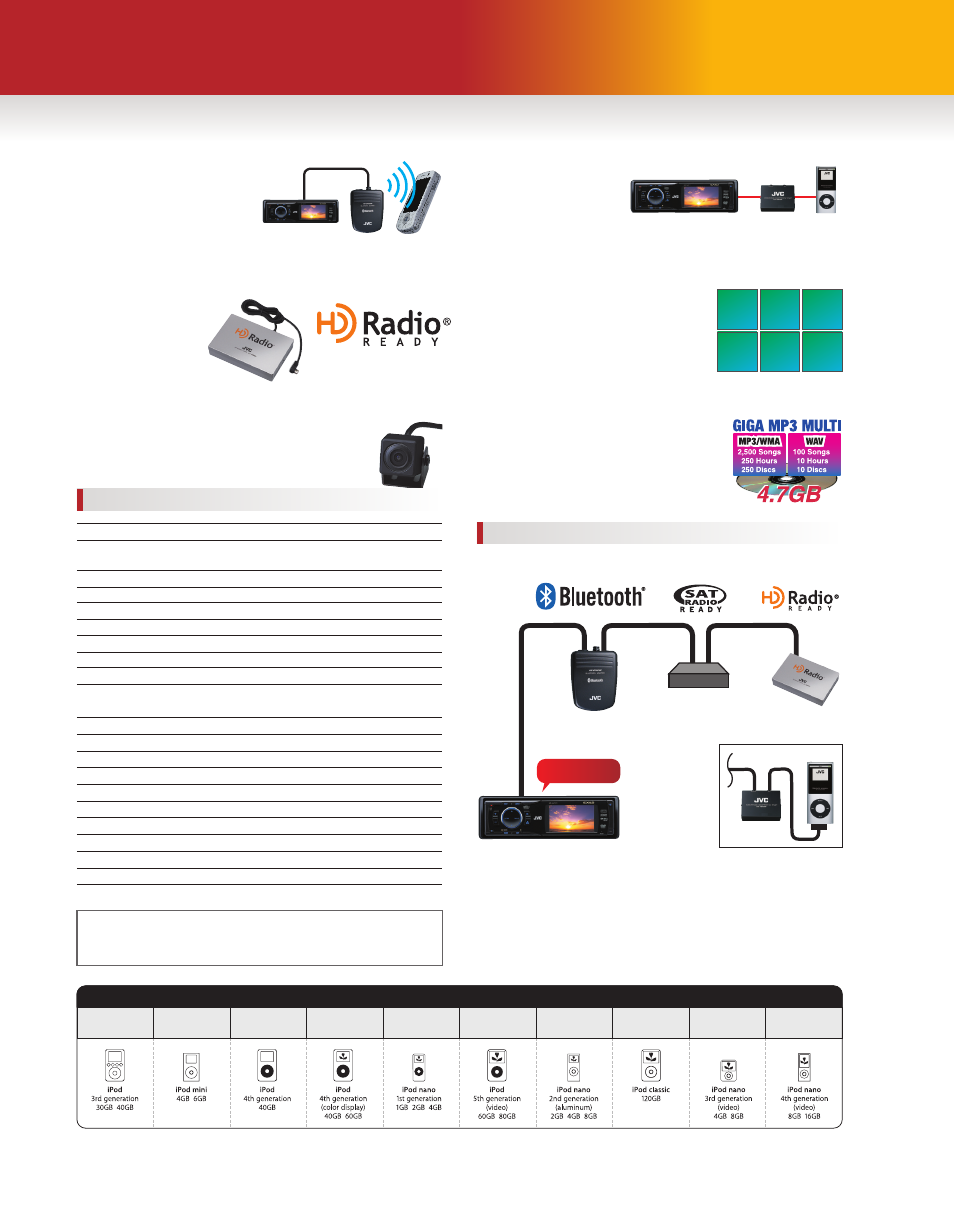

2009 JVC Product Tech Guide
C M Y K
KD-AVX11
GIGA MP3 MULTI
Thousands of MP3/WMA music files burned on a
single DVD disc can be played. Also compatible with
uncompressed WAV format.
KD-
AVX11
Multimedia DVD/CD Receiver with 2.7-Inch Widescreen Monitor
NTK-9520-16
Connections
KS-BTA200
KT-HD300
J-BUS
Ready for iPod Adapter (Ready for KS-PD100)
With an optional KS-PD100 adapter,
you can connect and control
your iPod on the headunit.
HD Radio
®
Ready
HD Radio
®
available with an
optional KT-HD300 tuner.
KT-HD300
Rear-View Camera Ready
An optional rear-view camera can be attached for an enhanced
view behind your car.
Ready for Bluetooth
®
Adapter
B
luetooth
®
Wireless Technology is available with
an optional adapter (KS-BTA200)*, for hands-free
calling and audio streaming.
* Available functions depend on the cell phone.
KS-BTA200
(optional)
Cell phone
KS-PD100
iPod
KS-PD100
(optional)
iPod
7-Band iEQ
Boost or cut the level by up to 10dB on each of 7
bandwidths (60, 150, 400, 1k, 2.4k, 6k and 15kHz).
Even customize the overall response with the 7-Band
iEQ, which offers 1 user- and 5 factory-preset
patterns. (POPS, ROCK, HIPHOP, JAZZ, and CLASSIC)
ROCK
JAZZ
USER
POPS
CLASSIC
HIP
HOP
Maximum Power Output
50W x 4
Continuous Power Output (RMS)
20W RMS X 4CH at 4Ω
* Total Harmonic Distortion
;
1.0% THD* + N
HPF** (Front/Rear)
off / 80 / 120 / 150Hz (-12dB/oct)
LPF (Subwoofer)
off / 80 / 120 / 150Hz (-12dB/oct)
AV Input
✔
Video Input (Camera)
✔
Line Preout Terminals (Pair)
2 pairs
Center Channel Output
-
Second Audio Output
-
Subwoofer Output with
Level/Frequency Control
✔
Subwoofer Output Level
2.0V
Subwoofer Gain Control
0 - 16dB
Composite Video Output
✔
Digital Output
✔
Load Impedance
4Ω (4 - 8Ω allowable)
Pre-output Level/Impedance
2.5V/1kΩ
Video Output
1.0Vp-p/75Ω
2nd Audio Output
-
Video Input
1.0Vp-p/75Ω
Audio Input
1.5Vrms/20kΩ
Dimentions (W x H x D)
Installation Size
7
3/16”
x 2
1/16”
x 6
5/16”
182 x 52 x 160 mm
Panel Size
7
7/16”
x 2
5/16”
x
5/8”
188 x 58 x 14 mm
Detachable Face Plate
6
11/16”
x 2
13/16”
x
15/16”
169 x 49 x 22 mm
Key Specifications
** Set according to LPF figures.
* With J-BUS connection, KS-PD100 may hang up while using iPod nano 2nd generation.
** iPod battery will not be charged via connection with KS-PD100.
Compatible iPod/iPhone Models
Requires
KS-PD100
Requires
KS-PD100
Requires
KS-PD100
Requires
KS-PD100
Requires
KS-PD100
Requires
KS-PD100
Requires
KS-PD100
Requires
KS-PD100
Requires
KS-PD100
Requires
KS-PD100
*
**
