ENGLISH
SPECIFICATIONS
Ⅲ Type : Multi-format monitor
Ⅲ Picture Tube : 17" measured diagonally
Ⅲ Effective
Screen Size
: Width : 330 mm
Height : 250 mm
Diagonal : 410 mm
Ⅲ Scanning
Frequency
: H : 15 kHz/15 kHz – 45 kHz
V : 50 Hz – 100 Hz
Ⅲ Video Band : Component : 25 MHz (–3 dB)
Video (Y/C) : 8 MHz (–3 dB)
Ⅲ Horizontal
Resolution
: Video (Y/C) : 600 TV lines
1080/60i : 800 TV lines
Ⅲ Input
Terminals
: Installing an optional input card in SLOT 1,
2, or 3 is required.
INPUT A/INPUT B: Terminals on the input
card in SLOT 1
INPUT C/INPUT D: Terminals on the input
card in SLOT 2
INPUT E/INPUT F: Terminals on the input
card in SLOT 3
Ⅲ Compliant
Video Signal : NTSC (3.58 MHz)/PAL (4.43 MHz)
(using the IF-C01PNG)
480i/576i/480p/1080i (60 Hz/24pSF)/720p
(using the IF-C01COMG)

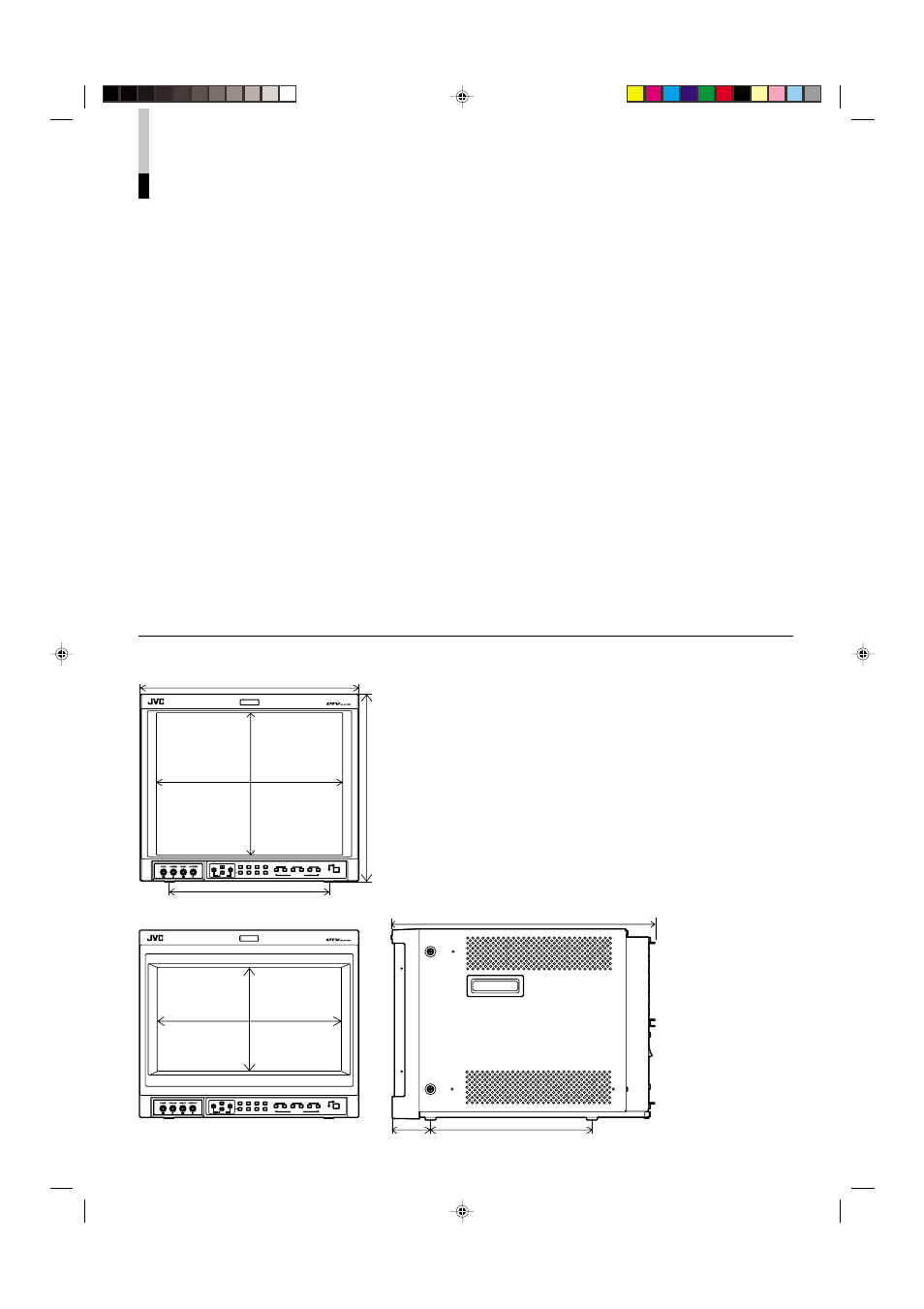

[Dimensions] Unit : mm
* Illustrations and pictures used in this manual have been
exaggerated, abbreviated or compounded for explanatory purposes
only. The appearance of the actual product may differ slightly.
* Dimensions and weight are approximate.
* E. & O.E. Design and specifications subject to change without
notice.
VOLUME
SLOT 1
A B
DEGAUSS
MENU BLUE CHECK ASPECT AREA MARKER
UNDER SCAN PULSE CROSS COLOR OFF SLOT 2
C D
SLOT 3 POWER
E F INPUT SELECT
395
336
254
334
288
VOLUME
SLOT 1
A B
DEGAUSS
MENU BLUE CHECK ASPECT AREA MARKER
UNDER SCAN PULSE CROSS COLOR OFF SLOT 2
C D
SLOT 3 POWER
E F INPUT SELECT
331
183
286 68
466.5
D1 serial digital (using the IF-C01SDG)
HD serial digital (using the IF-C01HSDG)
Ⅲ Remote Inputs : • Point-of-contact connection, 1 line,
D-sub connector (15-pin 3-line)
• Serial connection, 1 line, D-sub connector
(9-pin), compliant to RS-232C
Ⅲ Audio Output : 1 W (monaural)
Ⅲ Built-in
Speaker
: 8 cm round x 1
Ⅲ Environmental
Conditions
: Operating temperature : 5°C – 35°C
Operating humidity : 20% – 80%
(non-condensing)
Ⅲ Power
Requirements : 120 V/230 V AC, 50 Hz/60 Hz
Ⅲ Power
Consumption
(120 V/230 V) : 1.56 A/0.9 A (not including input card)
Max. 1.85 A/1.0 A (including input card)
Ⅲ Dimensions : Width : 395 mm
Height : 334 mm
Depth : 466.5 mm
(not including wide mask and input card)
Ⅲ Weight : 23.2 k g
(not including wide mask and input card)
Ⅲ Accessory : AC power cord
21
