HOW TO USE “SETUP MENU”
Ⅵ
“SETUP MENU” ITEMS
Items Functions
1 FUNCTION SETTING Displays the monitor’s power-up time or the total usage time.
2 PICTURE SUB ADJ. Performs approximate adjustments using the control knobs on the front panel.
3 COLOR TEMP./BAL. Sets or adjusts the colour temperature or white balance.
4 SIZE/POSI. ADJ. Adjusts the size or position of the picture.
5 DISTORTION ADJ. Compensates the picture distortion.
6 STATUS DISPLAY Makes the status of the input signal appear or disappear on the screen.
7 CONTROL LOCK Sets the control lock preventing the monitor from misuse.
8 all reset Sets all items in SETUP MENU to factory-preset values.
Ⅵ

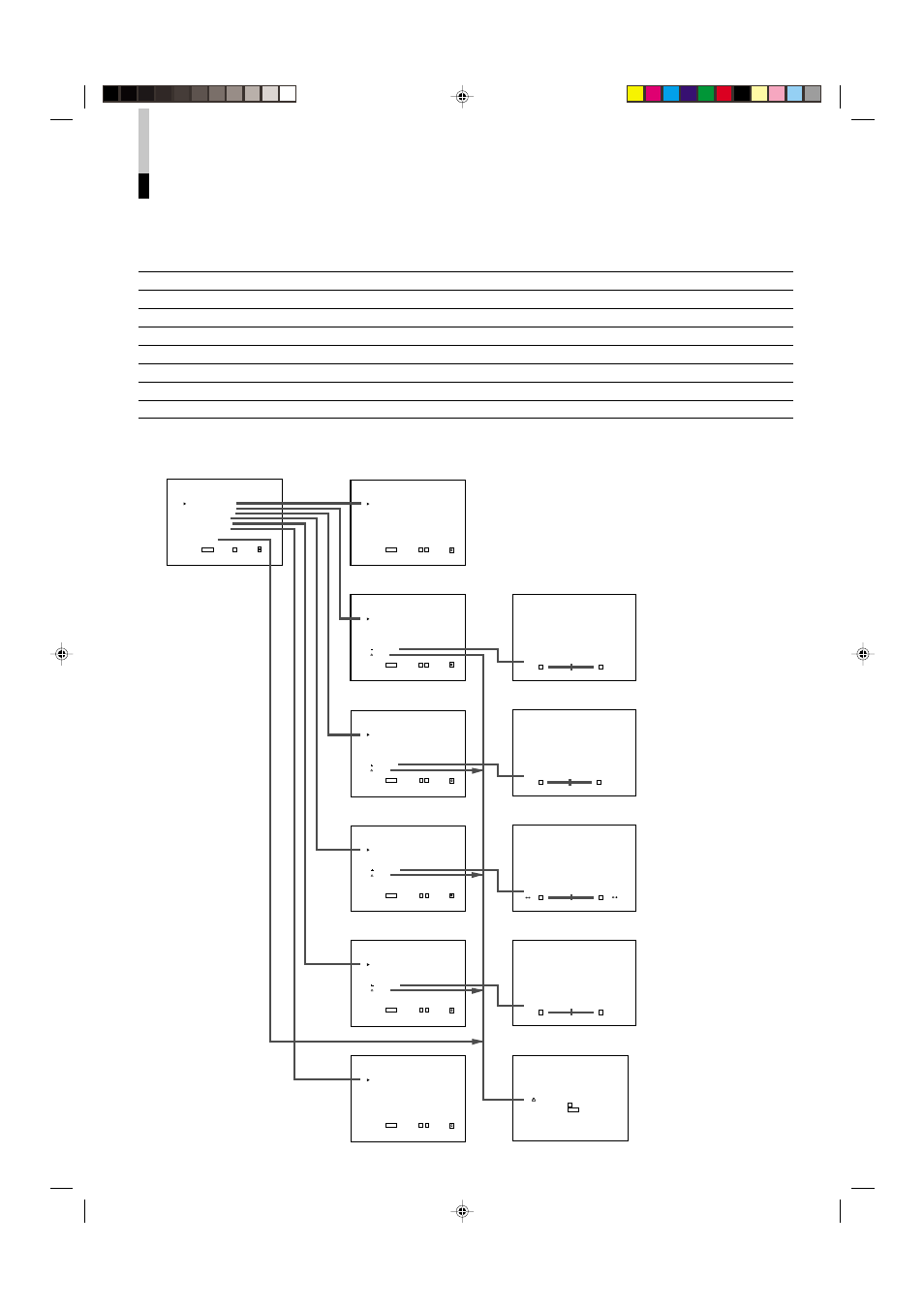

“SETUP MENU” SCREENS
FUNCTION SETTING
PICTURE SUB ADJ.
COLOR TEMP./BAL.
SIZE/POSI.ADJ.
DISTORTION ADJ.
STATUS DISPLAY
CONTROL LOCK :ON
all reset
EXIT: MENU ENTER:+ SELECT:
COLOR SYSTEM :AUTO
RUSH DELAY TIME :STD.
HOUR METER X100h :000
EXIT: MENU ADJUST:- + SELECT:
CONTRAST :00
BRIGHT :00
CHROMA :00
PHASE :00
NTSC SETUP :00
COMPO.LEVEL :SMPTE
sub menu
reset
EXIT: MENU ADJUST:- + SELECT:
COLOR TEMP. :LOW
BLUE DRIVE :000
RED DRIVE :000
GREEN CUTOFF :000
BLUE CUTOFF :000
RED CUTOFF :000
sub menu
reset
EXIT: MENU ADJUST:- + SELECT:
H.SIZE :00
H.POSITION :00
V.SIZE :00
V.POSITION :00
sub menu
reset
EXIT: MENU ADJUST:- + SELECT:
PINCUSHION :00
PIN.BALANCE :00
PARALLELOGRAM :00
TRAPEZOID :00
sub menu
reset
EXIT: MENU ADJUST:- + SELECT:
STATUS DISPLAY :ON
1080/1035 :1080
EXIT: MENU ADJUST:- + SELECT:
CONTRAST : 00
- - + +
BLUE DRIVE :000
- -
+ +
H.SIZE : 00
- - + +
PINCUSHION : 00
- - + +
Aer you sure ?
"Yes" then + Key.
"No" then
MENU Key.
