12
CAUTION
• Before making any connections, turn off all the equipment.
• DO NOT connect the power cord until all connections are completed.
• Use a cord whose plugs correctly match the terminals on this monitor and the equipment.
• Plugs should be fi rmly inserted; poor connections could cause noise.
• When unplugging a cord, be sure to grasp it’s plug and pull it out.
• Refer also to the user manual of each piece of equipment.

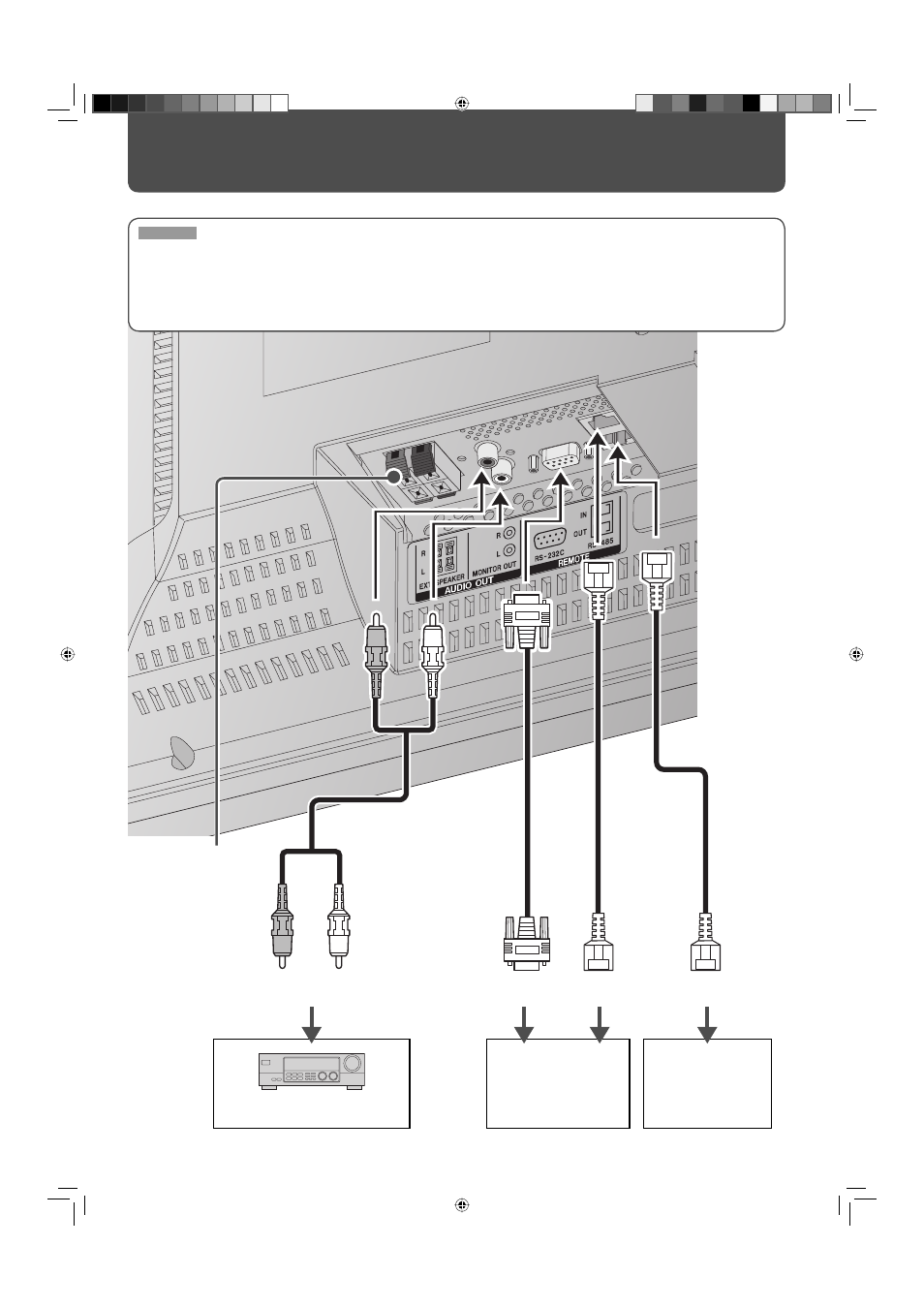

Amplifi er, etc.
To stereo audio
input terminals To RS-232C
terminal
To RS-485
output terminal
To RS-485
input terminal
External control input
terminal of other
equipment
(See page 31.)
St
er
eo audio
cable RJ-45 cable RJ-45 cable RS-232C cable
External equipment used
to control the monitor
(See page 31.)
To external speakers
(See page 10.)
R L
Connections
(cont.)
