Recording
Connect the external source properly to the unit by using input jacks either LINE 2 (Front) or LINE1 (Rear).
When connecting an external equipment of monaural output to this unit, use AUDIO L jack of LINE 1
(Rear) or LINE 2 (Front).
Use commercially available S-Video or Video cable and an Audio cable for this type of connection.
DVD-R DVD-R DVD-RW DVD-RW
VR
DVD-RW DVD-RW
Video

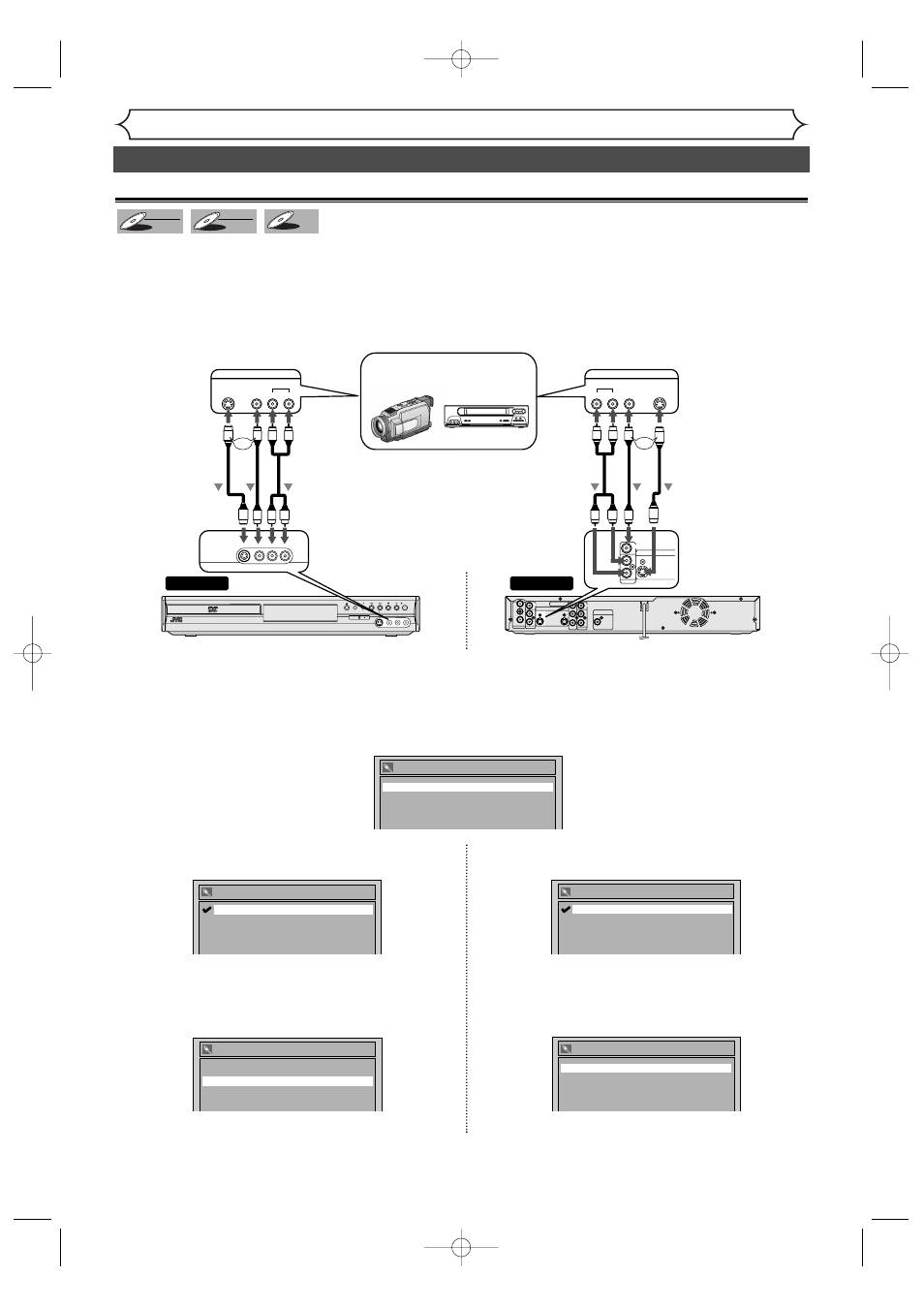

Connection to an external source
4. Using [K / L], select “L2 (Front)”. Press
[ENTER].
5. Using [K / L], select the input jack type to
connect. Press [ENTER].
If you want to use S-VIDEO input, select “S-Video In”.
If you want to use VIDEO input (Composite),
select “Video In”.
Select Video
L2 (Front) S-Video In
L1 (Rear) Video In
L2 (Front)
S-Video In
Video In
4. Using [K / L], select “L1 (Rear)”. Press
[ENTER].
5. Using [K / L], select the input jack type to
connect. Press [ENTER].
If you want to use S-VIDEO IN, select “S-Video In”.
If you want to use VIDEO IN (Composite), select
“Video In”.
Select Video
L2 (Front) Video In
L1 (Rear) S-Video In
L1 (Rear)
S-Video In
Video In
or
Settings for an external source
1. Press [SET UP] to display Easy Setting Menu or Advanced Setting Menu.
If Advanced Setting Menu is displayed, proceed to step 3.
2. Using [K / L] , select “Advanced Setting Menu”. Press [ENTER].
3. Using [K / L], select “Select Video”. Press [ENTER].
Select Video
L2 (Front) Video In
L1 (Rear) Video In
STANDBY/ON / I CH
S-VIDEO VIDEO L - AUDIO - R (MONO)
REC SPEED
Front of this unit Rear of this unit
ANTENNA AUDIO IN
VIDEO IN
L
R
AUDIO OUT
VIDEO OUT
(L1)
IN
IN OUT OUT
S-VIDEO
COMPONENT VIDEO OUTPUT
L
Y
PB
PR
R
DIGITAL AUDIO OUTPUT PCM / BITSTREAM
COAXIAL
To LINE 2 IN To LINE 1 IN
Another source
(VCR camcorder etc.)
VIDEO S- VIDEO AUDIO
R L
OUTPUT
VIDEO S -VIDEO AUDIO
L R
OUTPUT
S-Video
cable
Audio
cable
Video
cable
or
AUDIO IN
VIDEO IN
L
R
IN
S-VIDEO
Audio
cable
S-Video
cable
Video
cable
or
S-VIDEO VIDEO (mono) L - AUDIO - R
