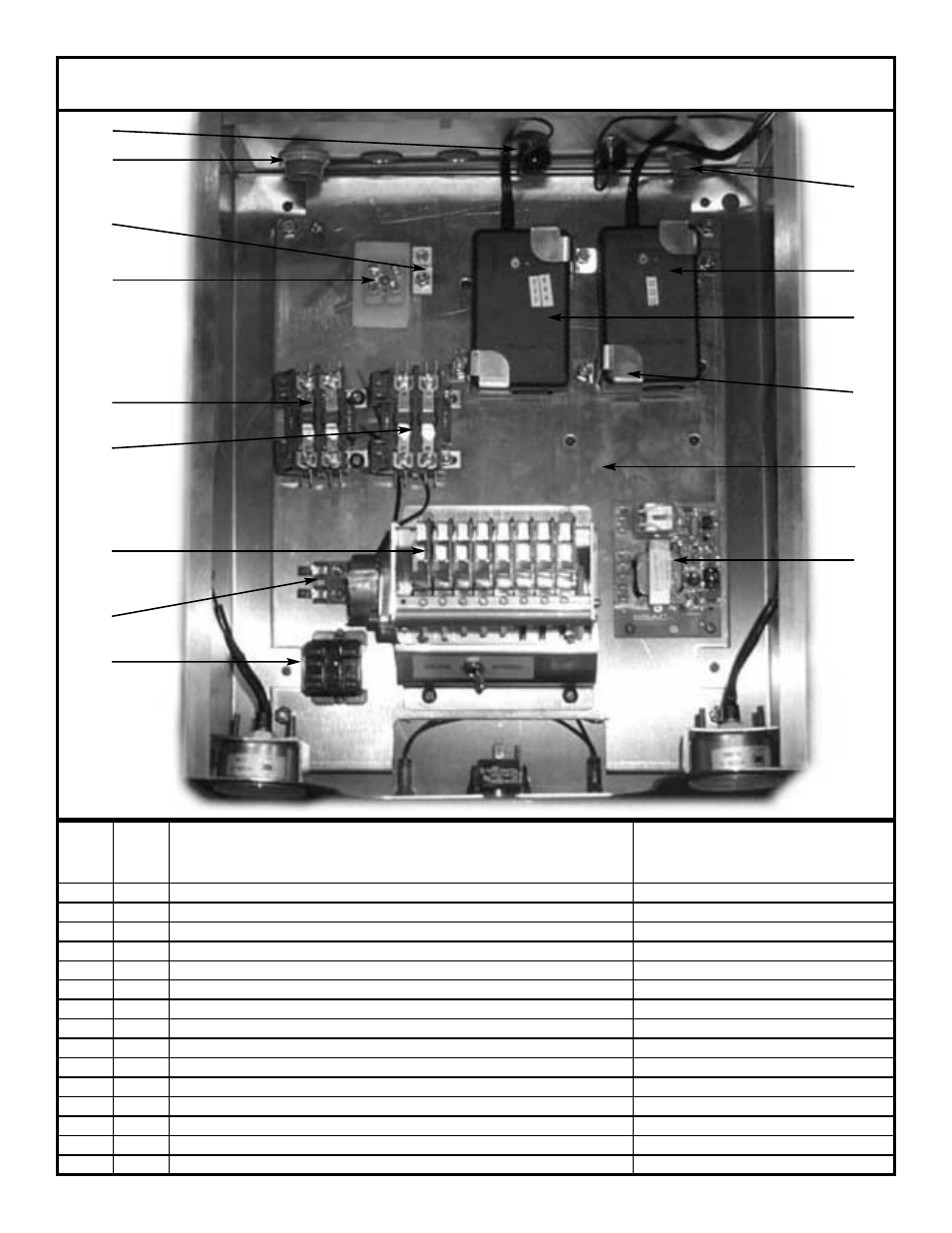

CONTROL BOX ASSEMBLY - TOP VIEW
23
ITEM QTY DESCRIPTION MFG NO.
01 2 Heyco Plug 5975-200-40-00
02 1 Fitting, Co;nduit Non-Metalic, 3/4" x 45 5975-011-47-74
03 1 Ground Lug 5940-200-76-00
04 1 Terminal Block 2 pole 5940-500-09-61
05 1 Contactor, 2 Pole, 220v, 20amp (Wash Motor) 5945-109-03-69
06 1 Contactor, 2 Pole, 220v, 20amp (Wash Temperature) 5945-109-03-69
07 1 Timer, 220v/ 50hz/ 8 Cam 5945-001-99-08
08 1 Fuse Holder 5920-401-03-14
09 1 Relay, Control 240v/ 50-60hz Top Mount 5945-111-47-51
10 1 Liquid Level Control, (220v) 6680-200-08-21
11 1 Inner Control Panel Assembly, TGP 208/50/1 5700-002-21-06
12 4 Transformer Mounting Bracket 5700-002-18-95
13 1 Transformer, 100-240vac to 24vdc 5950-002-19-88
14 1 Transformer, 100-240vac to 12vdc 5950-002-17-87
15 1 Fitting, Conduit Non-Metalic, 1/2" x 90 5975-011-45-14
02
01
04
05
09
03
07
06
15
14
13
10
11
12
08
