Installing the Tweeter for the 65C
The separate tweeters included with the 65C have a variety of
mounting applications. During installation, make sure the tweeter
is positioned and aimed towards the listener's ears.

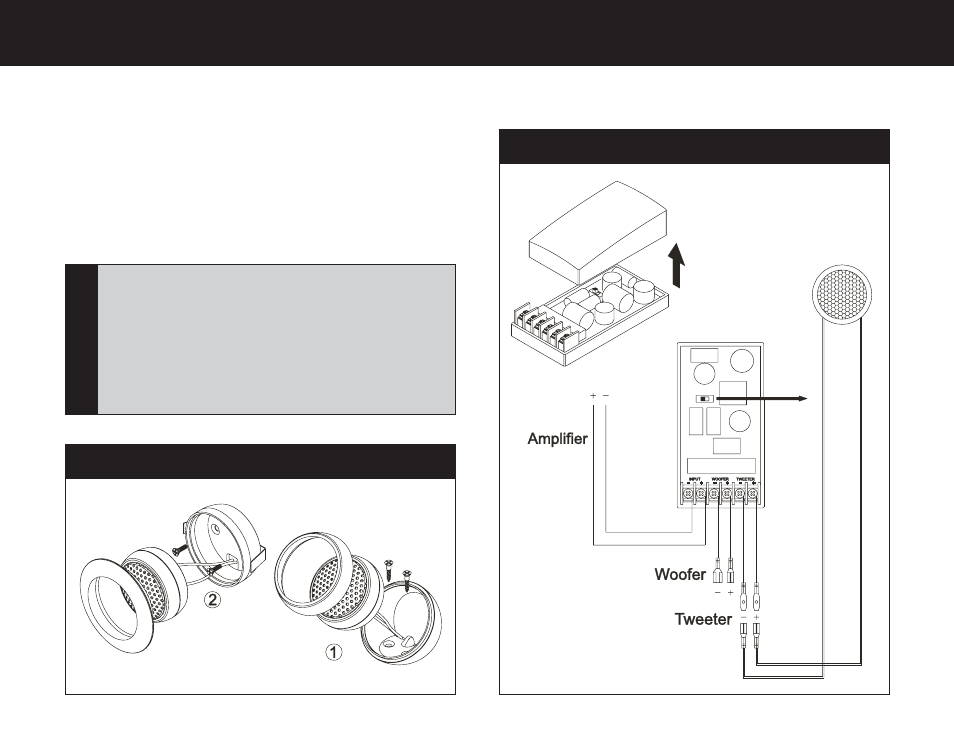

FIGURE 5 - WIRING THE BANDPASS/TWEETER
INSTALLATION
NOTE
There is a switch inside the Carbon 65C crossover
that can be used to adjust tweeter attenuation. 0dB is
for a flat tweeter response curve relative to the
woofer, while +3dB will boost the tweeter's frequency
response by 3dB throughout it's frequency range.
Placement of this switch will depend on tweeter
positioning and listener preference. You may want to
try different positions of this switch before final
installation is complete.
4
FIGURE 4 - TWEETER ASSEMBLY
CARBON Speakers >>
0dB +3dB
