6
Rear Panel
VIDEO
RIGHT LEFT S-VIDEO VIDEO
AUDIO DIGITAL IN
DIGITAL 1 (DVD)
DIGITAL 2 (CD)
DIGITAL 3 (TV)
DIGITAL 4 (CDR)
PCM/ DOLBY DIGITAL
/ DTS
DIGITAL OUT
FM 75
COAXIAL
AM
EXT
AM
LOOP
RIGHT LEFT
+
–
+
–
1 2 CENTER
SPEAKER SURROUND SPEAKERS
8 16 CAUTION : SPEAKER IMPEDANCE
MONITOR
OUT
SUBWOOFER CENTER
DVD
IN
SURR
(REAR)
TAPE
CDR
FRONT
TV SOUND
DBS
IN
VCR
IN
(PLAY)
IN (PLAY)
OUT
(REC)
OUT
(REC)
CD
IN
RIGHT LEFT
DVD
IN ANTENNA
COMPONENT VIDEO
MONITOR
OUT
DBS
IN
DVD
IN
Y P B P R
COMPU LINK-4
(SYNCHRO)
AV
COMPULINK-
SURROUND BACK SPEAKERS
RIGHT LEFT RIGHT LEFT
RIGHT LEFT
CAUTION : SPEAKER IMPEDANCE
SINGLE USE
See Instruction
Manual For
Connection
1 OR 2 : 8 16
1 AND 2 : 16 32
SUBWOOFER
OUT
+ +
– –
FRONT SPEAKERS
1 2 3 4 5
p
6 7 8 9
r e q w t

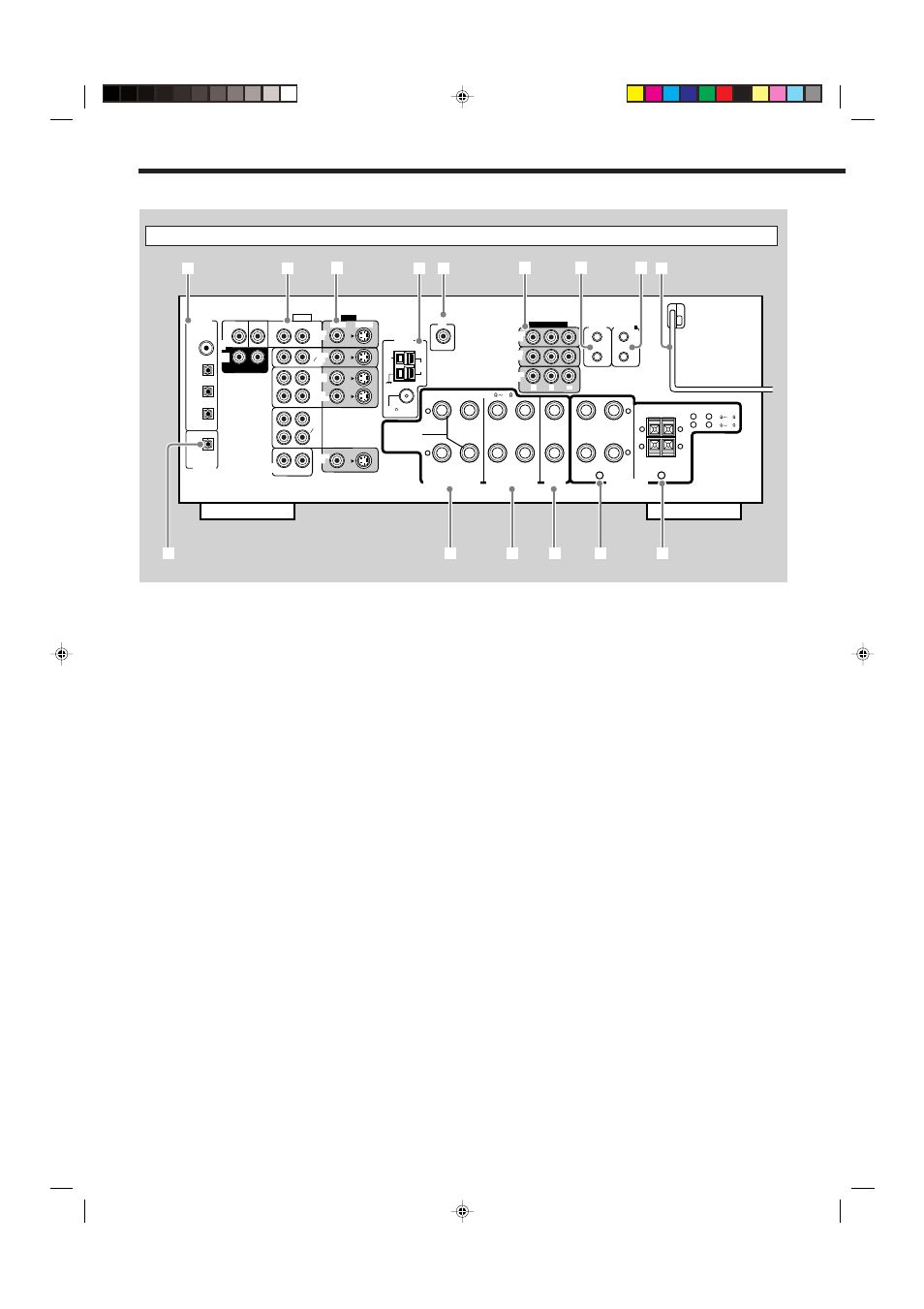

Rear Panel
1 DIGITAL IN terminals (14)
• Coaxial: DIGITAL 1 (DVD)
• Optical: DIGITAL 2 (CD), DIGITAL 3 (TV),
DIGITAL 4 (CDR)
2 AUDIO input/output jacks (11 – 13)
• Input: DVD IN—FRONT, CENTER, SUBWOOFER,
SURR (REAR), TV SOUND/DBS IN,
VCR IN (PLAY), TAPE/CDR IN (PLAY), CD IN
• Output: VCR OUT (REC), TAPE/CDR OUT (REC)
3 S-VIDEO and composite VIDEO input/output jacks (12, 13)
• Input: DVD IN, TV SOUND/DBS IN, VCR IN (PLAY)
• Output: VCR OUT (REC), MONITOR OUT
4 FM/AM ANTENNA terminals (8)
5 SUBWOOFER OUT jack (10)
6 COMPONENT VIDEO input/output jacks (12, 13)
• Input: DVD IN, DBS IN
• Output: MONITOR OUT
7 COMPU LINK-4 (SYNCHRO) terminals (39)
8 AV COMPULINK-III terminals (40)
9 AC power cord (14)
p DIGITAL OUT terminal (14)
q SURROUND BACK SPEAKERS terminals (10)
w SURROUND SPEAKERS terminals (10)
e CENTER SPEAKER terminals (10)
r FRONT SPEAKERS 1 terminals (10)
t FRONT SPEAKERS 2 terminals (10)
