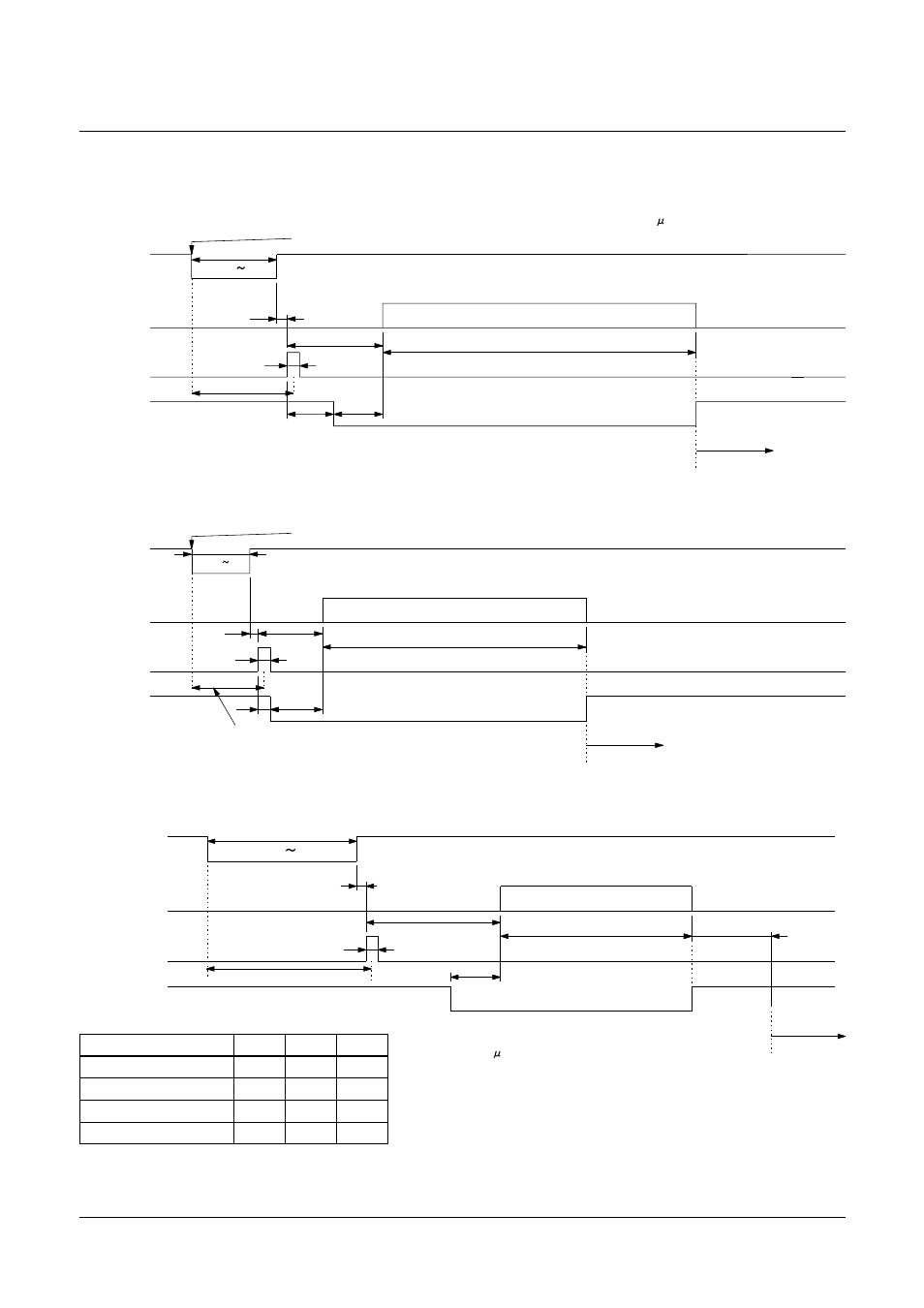

4.Pulse width control mode
Note 1:Sync or HD is not mentioned
Note 2:1H=31.777 S
Note 3:WEN polarity can be chosen at JP22 of I/F board
Waiting for Ext.Trigger
Waiting for Ext.Trigger
Valid period
Valid period
Ext.Trig
VIDEO OUT
WEN(positive)
WEN(Negative)
Ext.Trig
VIDEO OUT
WEN(positive)
WEN(Negative)
0.064mS 40mS
0.064mS 40mS
494H
Exposure time
Exposure time
1H 8H
1H
7H 1H
1H
1H
7H 7H
14H
4-b) 120 fps = binning readout
4-a) 60 fps = normal readout
not re-set at HD sync
not re-set at HD sync
247H
Ext.Trig
VIDEO OUT
WEN(positive)
WEN(Negative)
4-c) Partial scan
0.064mS 40mS
Exposure time
Valid period
Waiting for
Ext.Trigger
7H
1H
1H
A
B C
Effective readout line A B C
240 line 45H 240H 13H
120 line 66H 120H 17H
60 line 80H 60H 19H
30 line 87H 30H 20H
Note 1:Sync or HD is not mentioned
Note 2:1H=31.777 S
Note 3:WEN polarity can be chosen at JP22 of I/F board
