INDEX

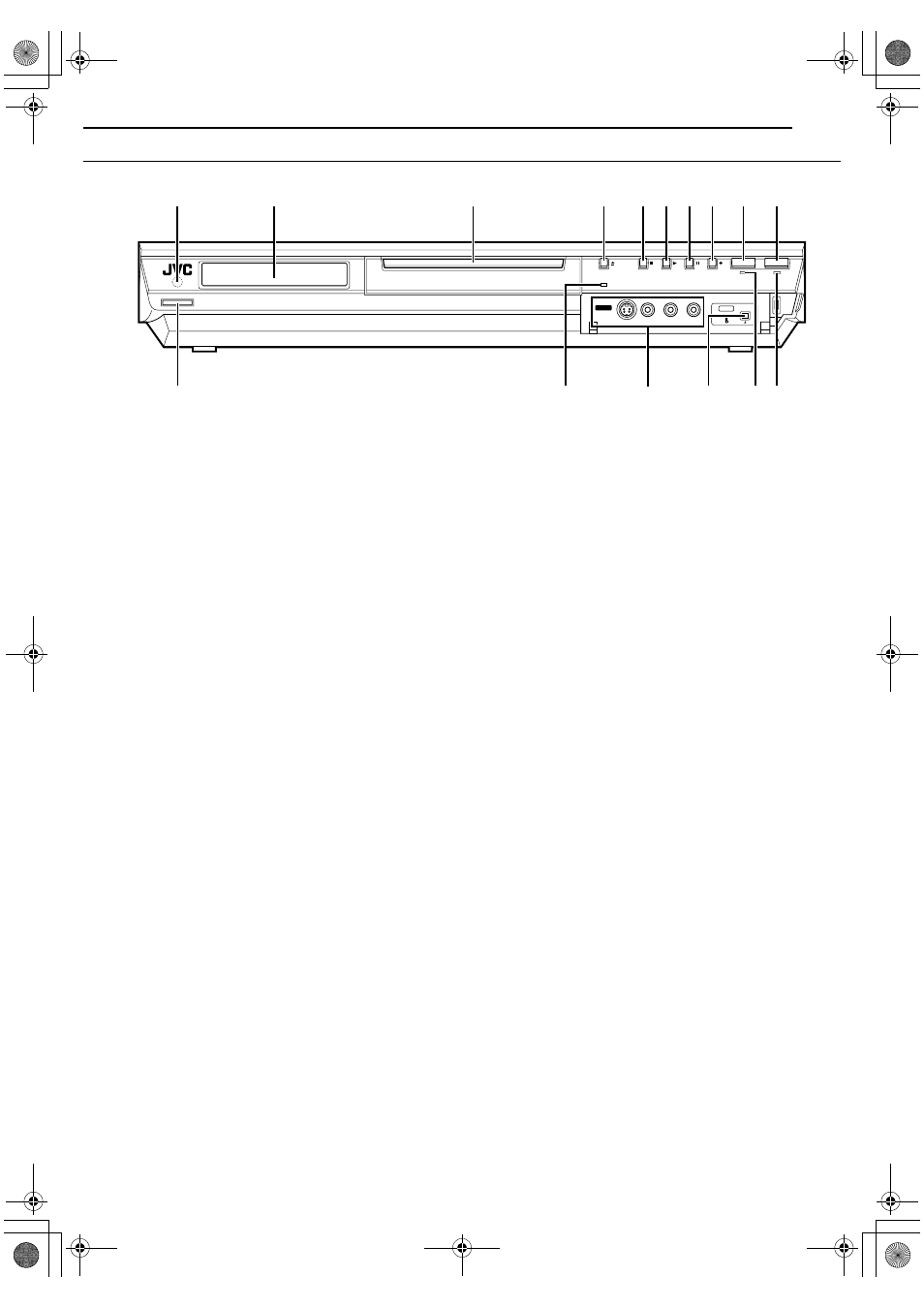

Front View
A Infrared Beam Receiving Window
B Front Display Panel A pg. 13
C Disc Tray
D Open/Close Button (
M) A pg. 9
E Stop Button ( o) A pg. 26, 42
F Play Button ( I) A pg. 26, 42
G Pause Button ( W) A pg. 26, 42
H Record Button ( R) A pg. 37, 40
I HDD Button A pg. 40
● This button will not function during navigation mode or set up
mode.
J DVD Button A pg. 26
● This button will not function during navigation mode or set up
mode.
K Standby/On Button (STANDBY/ON A)
L Video Lamp (VIDEO) A pg. 38, 41
M S-video/Video/Audio Input Connector [S-VIDEO/VIDEO/
AUDIO ((MONO) L/R)] A pg. 64
N DV Input connector [DV IN (A*)] A pg. 62
* A (i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The A logo is used for products compliant with the
i.Link standard.
O HDD Lamp (HDD) A pg. 40
P DVD Lamp (DVD) A pg. 26
1 STANDBY/ON
S-VIDEO VIDEO L(MONO)-AUDIO-R
DV DV IN F1
HDD DVD
VIDEO
K L O P M N
C D F E G H I J B A
