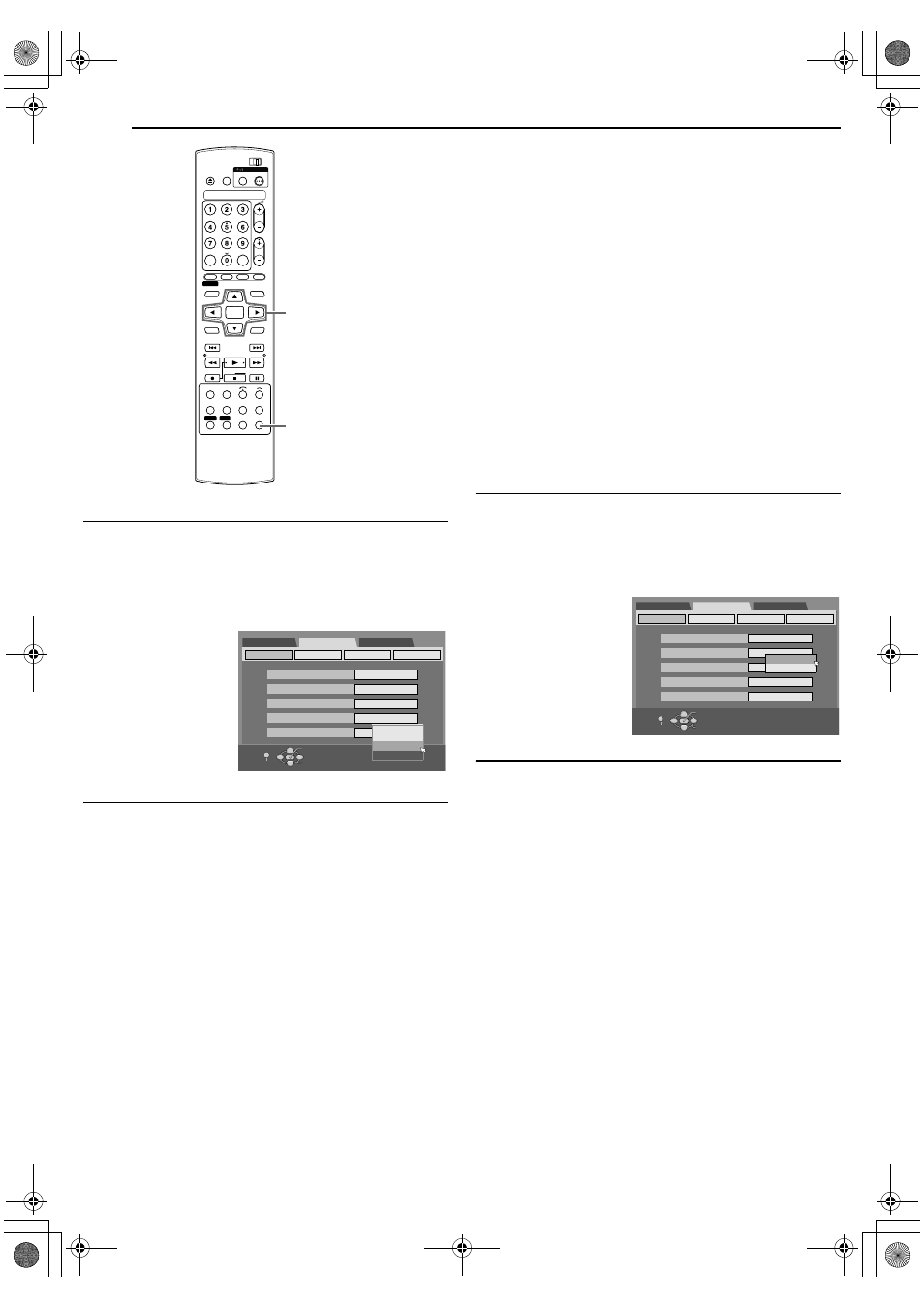

EDITING
L-2 Select Setting
Set AL-2 SELECTB to the appropriate mode depending on the type
of appliance connected to the unit’s [L-2 IN] connector.
1
Perform steps 1 and 2 of AL-1 Output And L-1 Input SettingB
(A pg. 57).
2
Press selection keys to select AL-2 SELECTB, then press
ENTER.
3
Press selection keys
to select the
appropriate setting,
then press ENTER.
4
Press SET UP to
complete the setting.
* The boldface settings below indicate the settings at your purchase.
8
L-2 SELECT ^ VIDEO/RGB / S-VIDEO/RGB / SAT VIDEO/RGB /
SAT S-VIDEO/RGB
Select AVIDEO/RGBB or AS-VIDEO/RGBB to use this unit as the
recording deck with the player connected to the [L-2 IN] connector,
or to use the satellite receiver connected to the [L-2 IN] connector.
VIDEO/RGB :
If a connected appliance’s output is compatible only with regular
video signals, set to
AVIDEO/RGBB.
S-VIDEO/RGB :
If a connected appliance’s output is compatible with Y/C
signals, set to
AS-VIDEO/RGBB. You can obtain a high-quality
picture. (For connection, be sure to use a 21-pin SCART cable
that is compatible with the Y/C signal.)
Select ASAT VIDEO/RGBB or ASAT S-VIDEO/RGBB to view a
satellite programme with the TV set while the unit is turned off.
SAT VIDEO/RGB :
If a connected satellite receiver’s output is compatible with
regular video signals, set to
ASAT VIDEO/RGBB.
SAT S-VIDEO/RGB :
If a connected satellite receiver’s output is compatible with Y/C
signals, set to
ASAT S-VIDEO/RGBB. You can obtain a high-
quality S-VIDEO picture. (For connection, be sure to use a 21-
pin SCART cable that is compatible with the Y/C signal.)
NOTES:
● When RGB signals are output from the connected appliance
such as a satellite receiver, the unit will record in RGB signals.
● If you have a satellite receiver connected to the [L-2 IN]
connector, be sure to set
AL-2 SELECTB back to appropriate
mode after editing.
● When you want to play back and record RGB picture, connect the
satellite receiver’s RGB compatible output connector to the unit’s
input connector.
● If you are not connecting a satellite receiver to the [L-2 IN]
connector, leave
AL-2 SELECTB set to AVIDEO/RGBB.
● When AL-2 SELECTB is set to ASAT VIDEO/RGBB and ASAT
S-VIDEO/RGB B, ASATB appears on the TV screen or front display
panel instead of AL-2B.
● If AL-1 OUTPUTB is set to ASCART S-VIDEOB, it is not possible to
set AL-2 SELECTB to ASAT VIDEO/RGBB.
● If AL-1 OUTPUTB is set to ASCART RGBB, it is not possible to set
AL-2 SELECTB to ASAT S-VIDEO/RGBB.
● If AL-1 OUTPUTB is set to ACOMPONENTB and AL-2 SELECTB to
ASAT VIDEO/RGBB or ASAT S-VIDEO/RGBB, be sure to connect
the [L-1 IN/OUT] connector with a TV.
● If AL-2 SELECTB is set to ASAT S-VIDEO/RGBB, be sure to set
AL-1 OUTPUTB to ASCART S-VIDEOB.
F-1 Input Setting
Set AF-1 INPUTB to the appropriate mode depending on the
connector ([VIDEO] or [S-VIDEO]) being used on the front panel.
1
Perform steps 1 and 2 of AL-1 Output And L-1 Input SettingB
(A pg. 57).
2
Press selection keys to select AF-1 INPUTB, then press
ENTER.
3
Press selection keys
to select the
appropriate setting,
then press ENTER.
4
Press SET UP to
complete the setting.
* The boldface settings below indicate the settings at your purchase.
8
F-1 INPUT ^ VIDEO / S-VIDEO
VIDEO :
When connecting an appliance to the [VIDEO] input connector,
set to
AVIDEOB.
S-VIDEO:
When connecting an appliance to the [S-VIDEO] input
connector, set to
AS-VIDEOB .
