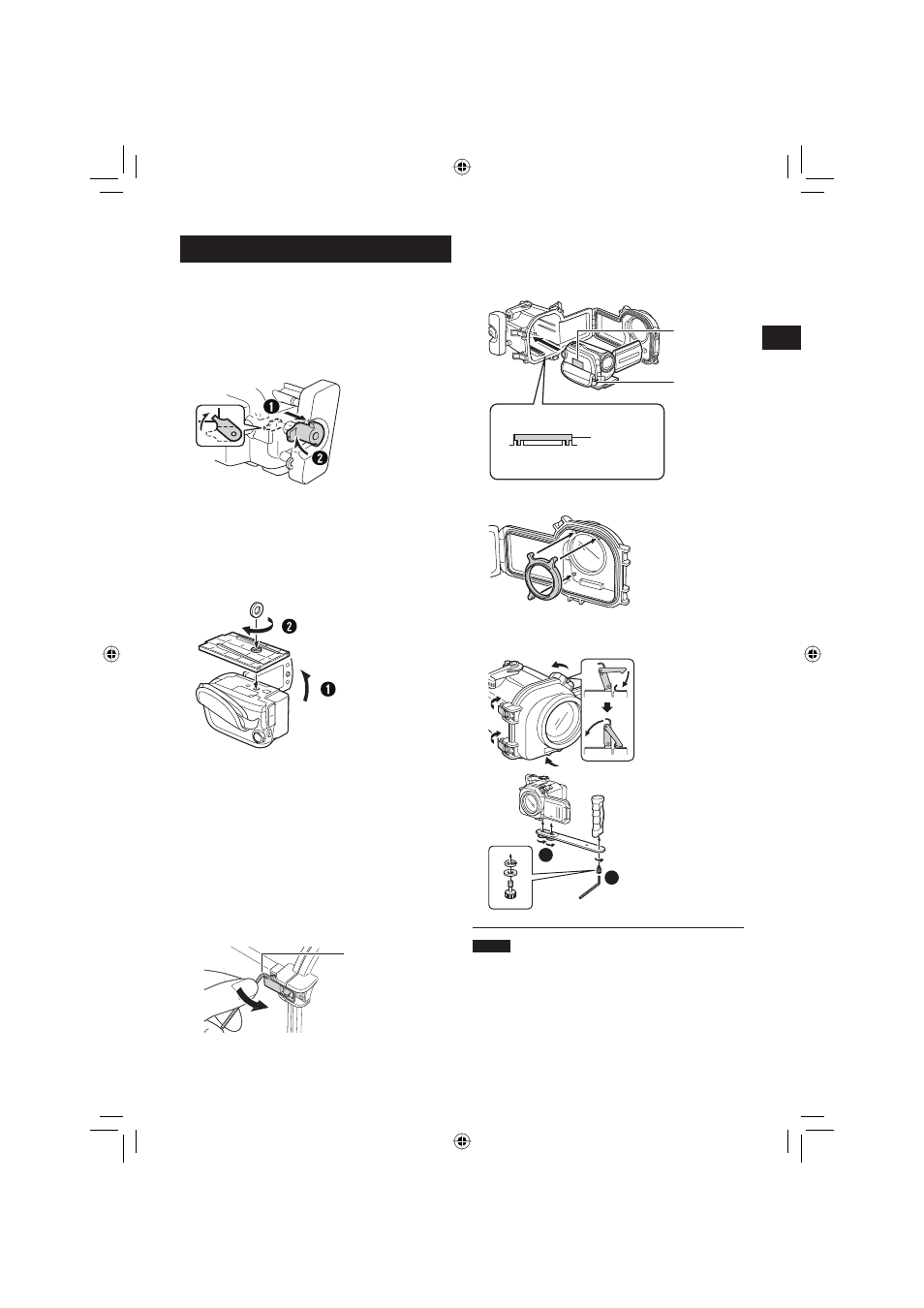

Attaching the Marine Case to the Camera
1
Pull the power/mode switch lever of the
marine case in the direction of the arrow
( ), and rotate it to lock it ( ).
If the power/mode switch lever is not locked,
it may touch or damage the camera when the
camera is put into the case.
2
Attach the base in the correct way for your
model of camera. ( ੬ pg. 7)
• Line up the tripod screw hole on the base of
your camera with the base holes of the case,
and tighten the screw.
• Install the battery (and insert an SD card if
needed) beforehand.
3
Setup the camera (please refer to your
camera’s instruction manual).
• Turn off the fl ash and light. (presence of a fl ash/
light differs according to the model.)
• Switch off the power.
• It is recommended to set to the auto recording
mode.
• Open the lens cover.
4
Open the marine case.
If it is diffi cult to open buckles, use the buckle
opener.
5
Insert the camera into the marine case.
Inserting the provided silica gel between the
camera and marine case prevents the inside of
the marine case from steaming up.
For cameras that are equipped with Base A,
attach the lens hood.
6
Seal the marine case, and attach the grips.
NOTE
The risk of water leakage is extremely high if the
O-ring is twisted, if you forget to attach it, or if
something is trapped in the seal.
Lock in all 4
places.
Base attachment groove
Base
Marine case internal base
Hexagonal
wrench (small)
Silica gel
Tighten the
grip belt.
