14

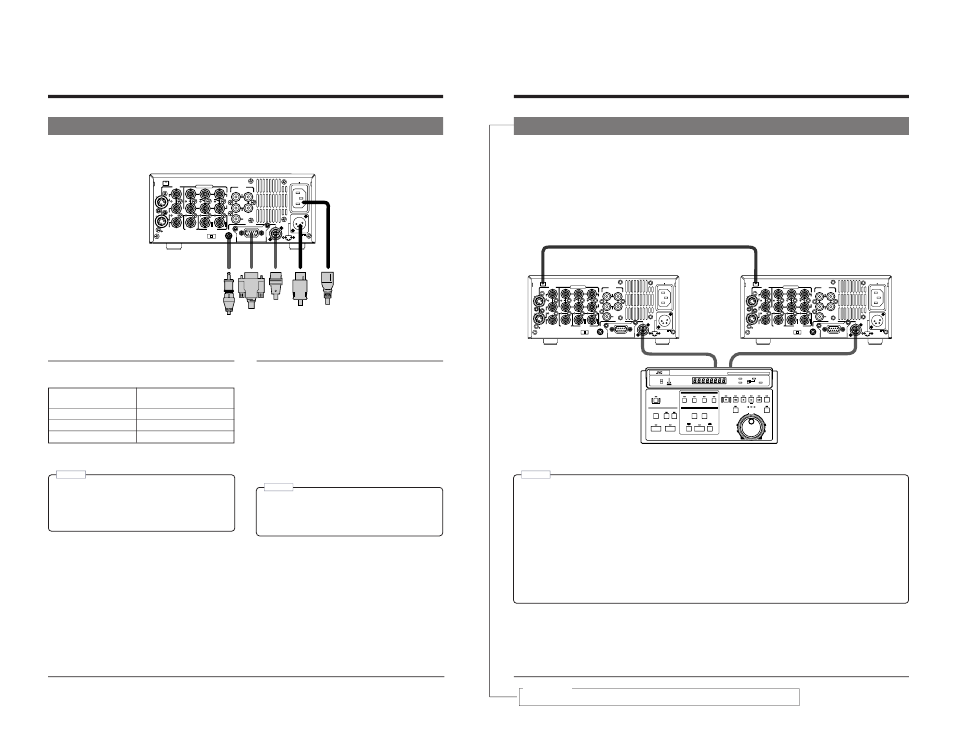

3-3 Other connections
3 CONNECTIONS
Remote connector
Connect a remote controller to the appropriate connector
(three types are available).
Type of connector Connectable remote
controller
1 [SERIAL] connector RM-G30
2 [REMOTE1] connector RM-G820
3 [REMOTE2] connector RM-G800/G805
Power sockets
2 types of power supply are available (AC, DC).
DC power supply socket
4 Connect DC 12 V.
AC power supply socket
5 Connect AC 120 V (U MODEL), AC 220 V – 240 V (E
MODEL).
5 Selection of battery type
Set the menu switch according to the type of battery that
will be used.
* If the setting does not correspond to the battery type, the
battery remaining time and battery alarm will not be
correctly displayed.
1 2 3 4 5
DC 12V
PGZ01945
TIMER TIME CODE
COMPONENT VIDEO
SYNC IN
REC
OFF
PLAY
DV IN/OUT
REMOTE
AUDIO
2 1
SERIAL
CH 1/3
OUT
OUT
IN
IN B-Y IN
Y/C
LINE
OUT
OUT
MONITOR
CH 2/4
MONITOR OUT
R-Y Y
IN OUT
Note:
• Do not use this unit continuously when the battery
indicator is displayed. The unit may not operate
properly. Remove the battery to avoid over-
discharge.
Notes:
• Before connecting the RM-G800/G805, be sure to
turn the VCR OFF. Do not connect or disconnect
the remote cable with the VCR ON.
• When the RM-G805 is connected, the A/B roll
editing cannot be performed.
੬ See “396 BATTERY SELECT” on page 22.
• Used battery
The following batteries can be used with this unit.
• Flat shape type
• Anton Bauer Inc. : Trimpack 13 and 14 series
Pro Pac 13 and 14 series
• IDX Corporation : NP-L46
15
EDITING CONTROL UNIT RM-G800
EDIT MODE
ENTRY MENU CANCEL GOTO
IN OUT ENTRY
SHIFT PREVIEW REVIEW
AUTO EDIT ALL STOP
GPI
MANUAL TAKE
COUNTER TC HOLD
TC CTL
UB PRESET
ASSEM VIDEO/Hi-Fi AUD-1 AUD-2
IN OUT
HOUR MINUTE SECOND FRAME LAP
PLAYER RECORDER
REC REW PLAY STILL FF SEARCH
PLAYER RECORDER STOP
STILL
X-1 X1
REV FWD
P R
LAP
COUNTER RESET
MENU SET SET
EJECT ON
OFF
DC 12V
PGZ01945
TIMER TIME CODE
COMPONENT VIDEO
SYNC IN
REC OFF PLAY
DV IN/OUT
REMOTE
AUDIO
2 1
SERIAL
CH 1/3
OUT
OUT
IN
IN B-Y IN
Y/C
LINE
OUT
OUT MONITOR
CH 2/4
MONITOR OUT
R-Y Y
DC 12V
PGZ01945
TIMER TIME CODE
COMPONENT VIDEO
SYNC IN
REC OFF PLAY
DV IN/OUT
REMOTE
AUDIO
2 1
SERIAL
CH 1/3
OUT
OUT
IN
IN B-Y IN
Y/C
LINE
OUT
OUT MONITOR
CH 2/4
MONITOR OUT
R-Y Y
IN OUT IN OUT
3-4 Editing system examples
3 CONNECTIONS
The BR-DV600UA/EA can be used as a feeder for different video formats.
5 Simplified digital cut editing system
Using an editing remote controller with JVC bus specifications such as the RM-G800/G805, digital cut editing is possible
with another MiniDV VCR. When the BR-DV600UA is used as a recorder, the following editing operations cannot be
performed.
• Preview
• Insert editing
• EE function (auto EE function)
As the phase sync function does not work, the editing accuracy is ±5 frames.
RM-G800/G805
DV (IEEE1394)
Remote control
Notes:
• When used in an editing system with the RM-G800/G805, the BR-DV600UA’s preroll operation is comparatively slow.
This is normal and is not a malfunction.
• When editing, the input signal (picture from the playback VCR) can be monitored. The playback picture of the recorder
VCR just before the edit-in point cannot be checked.
• This unit cannot be used for CTL editing. Use for the time code editing.
• During remote control operation, be sure to turn the jog dial slowly. Otherwise, the VCR may not be able to keep up
with the operation.
• If editing is started in the Pause mode (still) at the preroll point, editing accuracy may be degraded.
• Use the RM-G800/G805 with the out-point return function OFF. Otherwise, it takes longer to stop editing.
• Use the RM-G800/G805 with the Auto EE mode OFF. Otherwise, the IEEE 1394 “EE inh” error indication is shown.
• When the RM-G805 is connected, the A/B roll editing cannot be performed. (U MODEL)
• Be sure to use this unit with the No. 460 menu switch set to “OFF”. Otherwise, time code data may
be discontinuous at the edit point.
→
For servicing
See the service manual page 1-6, “1.12 EDITING SYSTEM USING THE BR-DV600”
