3
A/V CONTROL RECEIVER
REMOTE CONTROL RM-SRXD701R
TV/VIDEO AUDIO
TV STB DVR/DVD
FM/AM AUX
VCR
TV STB CONT DVR/DVD
USB VIDEO
VCR
TV VOL CHANNEL VOLUME
FM MODE
MUTING
MEMORY
TUNING/REW FF/TUNING
SETTING DVD MENU
DECODE MODE
MIDNIGHT
D.EQ FREQ
D.EQ LEVEL
C.TONE
SMART S.SETUP TEST
SLEEP
L – FRONT – R
L – SURR – R
CENTER SUBWFR
L – S. BACK – R
1 2 3
4 5 6
7 8 9
10 0 10
RETURN 100
DVR
DVD
EFFECT
TA/NEWS/INFO
DISPLAY
– PTY –
PTY SEARCH
ADJUST EXIT
DIMMER CC CONVERTER
SURROUND
AUDIO INPUT
VIDEO INPUT
SET
7
2
3
a
5
6
o
1
4
8
9
w
e
d
h
;
s
r
t
y
p
q
f
u
i
g
k
l
j

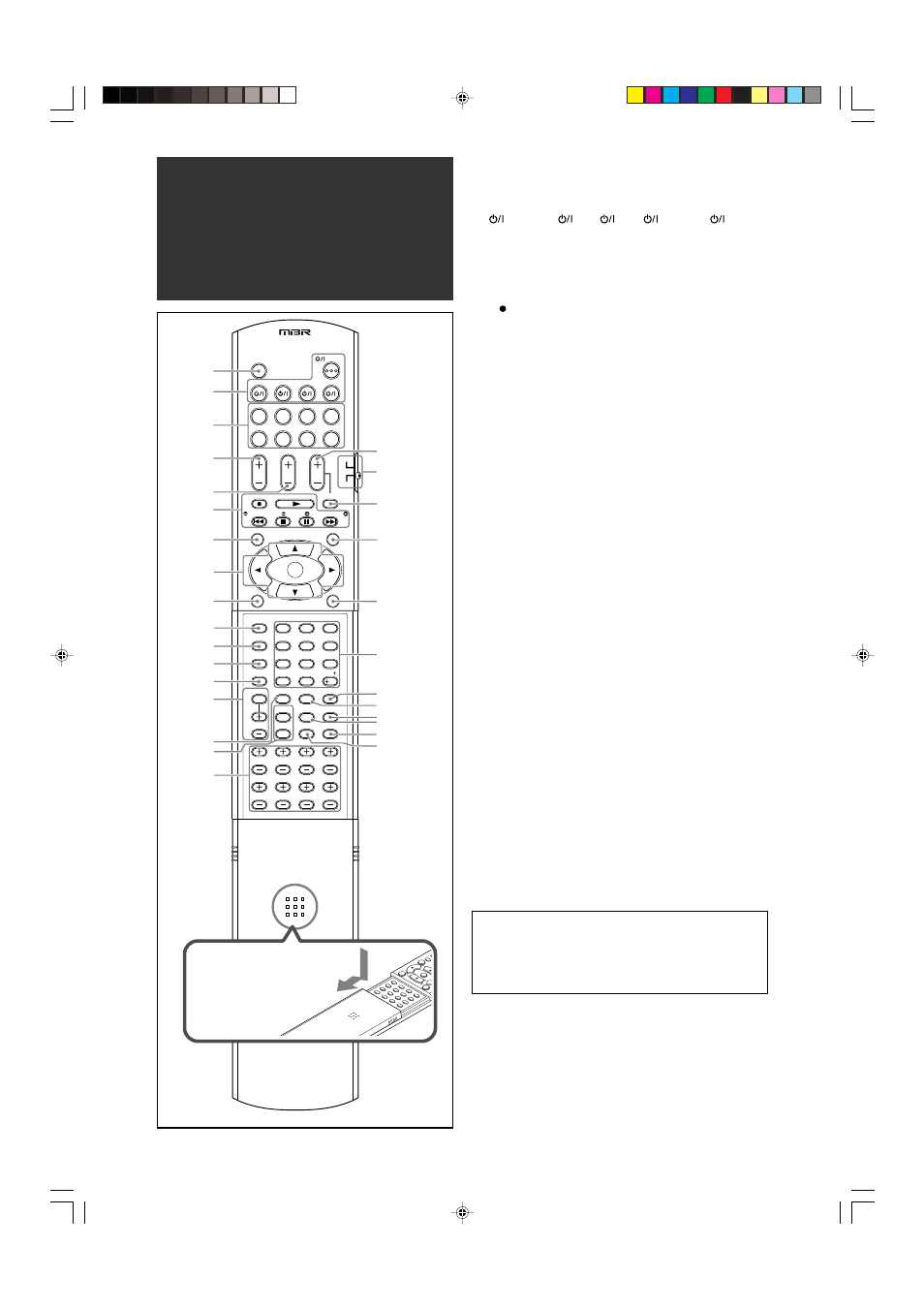

Remote control
See pages in parentheses for details.
1 TV/VIDEO button (51, 53)
2 Standby/on buttons (19, 51 – 55)
AUDIO, TV , STB , VCR , DVR/DVD
3 • Source selecting buttons (19, 40, 51 – 55)
TV, VCR, DVR/DVD, FM/AM, USB, AUX, VIDEO
• STB CONT button (55)
4 TV VOL (volume) +/– button (51, 53)
5 CHANNEL +/– button* (51 – 55)
6 • Operating buttons for video components* (51, 52, 54, 55)
, 3, REW, 4, 7, 8, FF, ¢
• Operating buttons for tuner (40)
( TUNING, TUNING 9
• Operating buttons for RDS (42, 43, 45)
TA/NEWS/INFO, PTY SEARCH, ( PTY, PTY 9
7 SETTING button (25, 27)
8 • Cursor buttons (
3, 2, 5, ∞) (25, 27, 28, 34, 36, 52, 55)
• SET button (25, 28, 34, 36)
9 ADJUST button (34, 36)
p VIDEO INPUT button (20)
q AUDIO INPUT button (20)
w DECODE MODE button (21)
e SURROUND button (50)
r Adjusting buttons for Digital Equalizer (38)
D.EQ FREQ, D.EQ LEVEL +/–
t CC CONVERTER button (22)
y Adjusting buttons for Surround/DSP modes’ parameters
C (center).TONE, EFFECT (38, 39)
u Adjusting buttons for speaker and subwoofer output levels (37)
FRONT L +/–, FRONT R +/–, CENTER +/–, SUBWFR +/–,
SURR L +/–, SURR R +/–, S.BACK L +/–, S.BACK R +/–
i VOLUME +/– button (20)
o DVR/DVD mode selector* (52, 55)
; MUTING button (21)
a • DVD MENU button* (52, 55)
• DISPLAY button (42)
s EXIT button (25, 28, 34, 36)
d • Numeric buttons* (41, 51 – 55)
1 – 10, 0, +10, 100+
• RETURN button (51)
• FM MODE button (41)
f DIMMER button (21)
g MEMORY button (40, 41)
h SLEEP button (22)
j MIDNIGHT button (31)
k SMART S (surround). SETUP button (23)
l TEST button (37)
* These buttons can be used for operating a JVC DVD recorder
or DVD player with the mode selector set to “DVR” or “DVD”
(see page 52).
If these buttons do not function normally, use the remote control
supplied with your DVD recorder or DVD player. Refer also to
the manuals supplied with the DVD recorder or DVD player for
details.
• When operating a DVD recorder (for JVC products
ONLY), set the mode selector (o) to “DVR.”
• When operating a DVD player, set the mode selector (o)
to “DVD.”
Parts identification
To open the cover of the remote
control, push here then slide
downward.
