Connections
8
7
The front and surround speakers
—
TH-C6

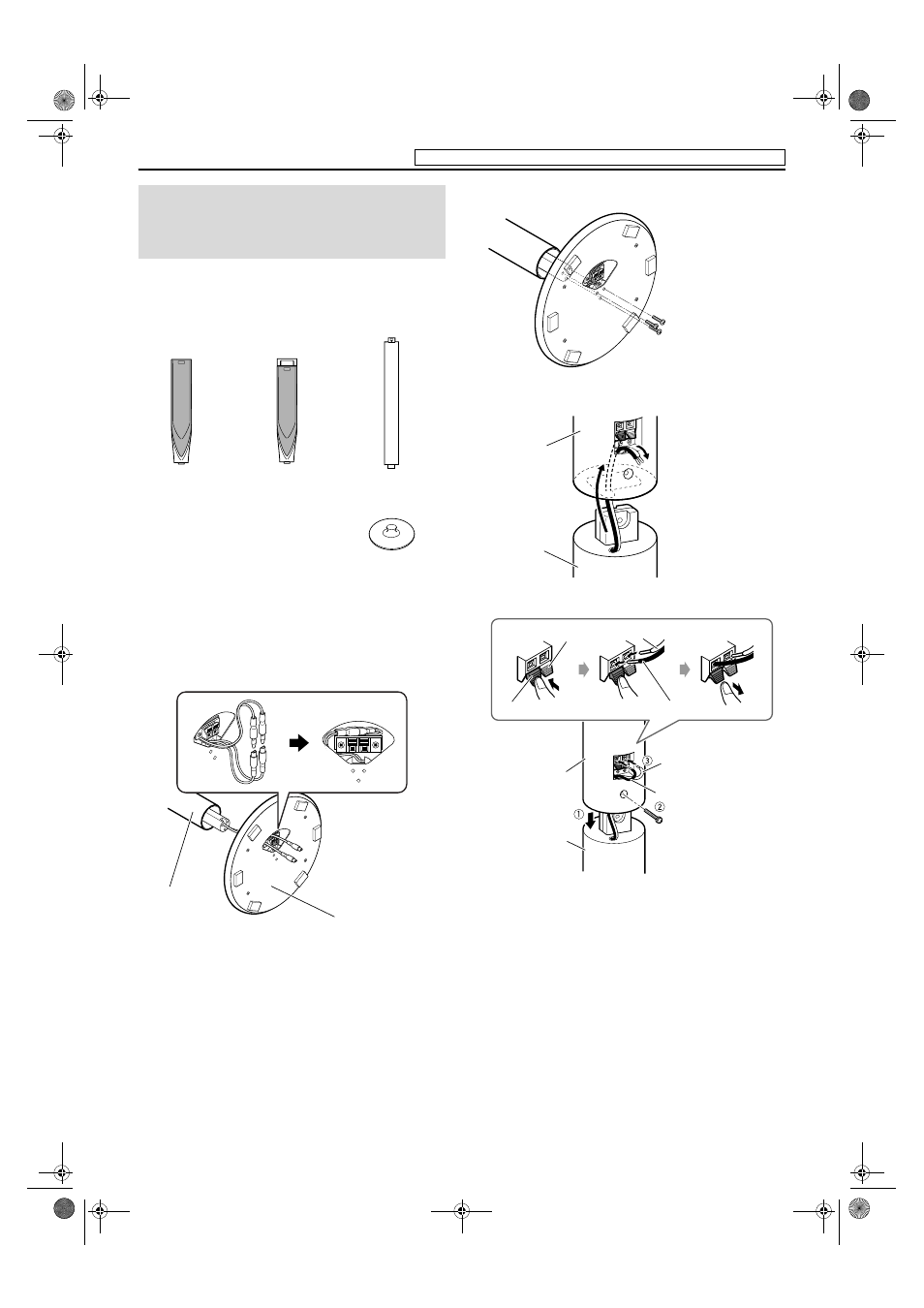

The following procedure explains the front speaker assembly. The
assembly of both the front and surround speakers are done in the
same manner.
Before assembling —
• Prepare a Phillips screwdriver (not supplied).
• Take care not to drop any component part while assembling;
otherwise, it may cause damage to the floor or injury.
1
2
3
4
Connecting the satellite
(front, center, surround)
speakers
Stand
(
×4)
Front speaker
( ×2)
Surround speaker
( ×2)
Base plate
(
×4)
Stand
Base plate
Screw M4 x 55 mm
(supplied)
Speaker
Stand
Stand
Screw M5 x 25 mm
(supplied)
Black
Red White
Black
Speaker
White
Black
Continued on next page
Do not connect the power cord until all other connections have been made.
