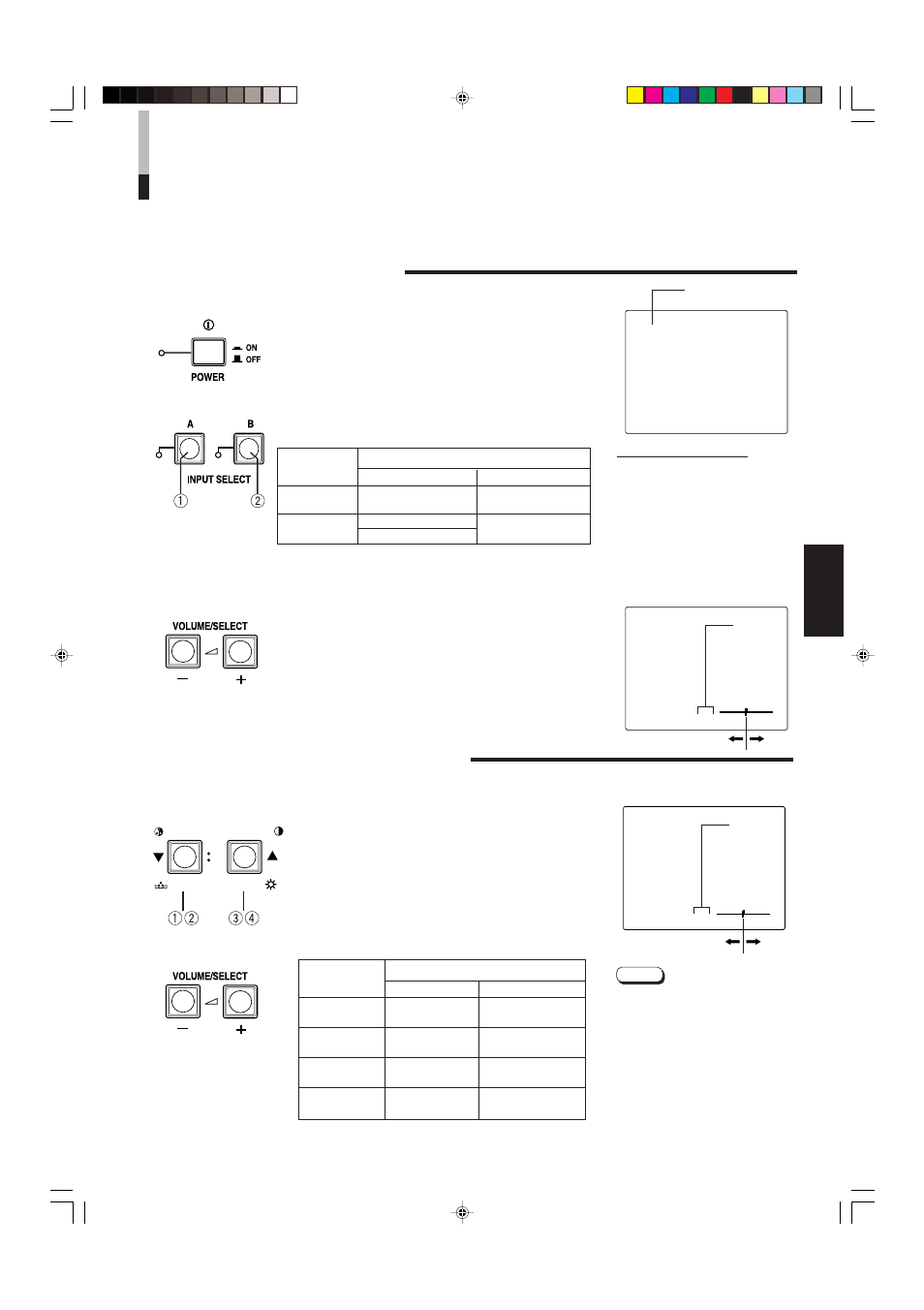

HOW TO HANDLE BASIC
OPERATIONS
BASIC OPERATION
PICTURE ADJUSTMENT
1. Press the POWER switch to turn on the power.
_ ON : Power turns ON. (Power indicator: lit)
— OFF : Power turns OFF. (Power indicator: unlit)
2. Press the INPUT SELECT buttons to choose input.
Select video/audio signals input to terminals on the rear
panel. The lamp for the selected button lights up.
3. Press the VOLUME/SELECT buttons to adjust the
speaker volume.
Press this button to display the speaker volume level on the
screen.
+ : The Built-in speaker volume is increased. (00
= 50)
– : The Built-in speaker volume is decreased. (50 = 00)
* Screen indication will disappear about 10 seconds after
operating or immediately when you press the MENU button.
1. Press select buttons corresponding to the item
you want to adjust.
The item you select is displayed on the screen.
1
Phase control : Press the CHROMA/PHASE button
twice.
2 Chorma control : Press the CHROMA/PHASE button
once.
3 Brightness control : Press the CONTRAST/BRIGHT button
twice.
4 Contrast control : Press the CONTRAST/BRIGHT button
once.
* Screen indication will disappear about 10 seconds after operating or
immediately when you press the MENU button.
About the STATUS indication
÷ With the COLOR SYSTEM setting set
to AUTO mode, when you turn on the
power or select inputs, the color
system indication appears for about
3 seconds on the screen while PAL or
NTSC signals are being detected.
It does not appear when receiving a
B/W signal or when no signal is input.
Refer to page 8 for more information
about COLOR SYSTEM setting and
page 9 for more information about
STATUS indication setting.
Notes:
÷ Phase control is effective only in the
NTSC color system mode.
÷ Chroma control is not effective when
receiving B/W or when no signal is
input.
÷ When CHROMA is adjusted to “–20,”
the picture becomes less colorful.
÷ “NO EFFECT” is displayed (for about
3 seconds) when your selected
function has no effect.
2. Adjust with the VOLUME/SELECT buttons.
+ –
Terminals on the rear panel
Video signal input Audio signal input
1 Input A
VIDEO A terminal AUDIO A terminal
(VIDEO)
2 Input B VIDEO B terminal
AUDIO B terminal
(VIDEO Y/C) VIDEO B (Y/C) terminal
Note: The Y/C (S-video) terminal has priority.
