Lift Charts (continued) 200D / 200D LC
Boldface italic type indicates hydraulic-limited capacities; lightface type indicates stability-limited capacities, in lb . (kg) . Ratings are at bucket lift hook, using 1 .12-cu .-yd . (0 .86 m 3 )
bucket; standard counterweight, situated on firm, level, uniform supporting surface . Figures do not exceed 87 percent of hydraulic capacity or 75 percent of weight needed to tip machine .
Load Point 10 ft. (3.05 m) 15 ft. (4.57 m) 20 ft. (6.10 m) 25 ft. (7.62 m)
Height Over Front Over Side Over Front Over Side Over Front Over Side Over Front Over Side
200D LC with 9-ft. 7-in. (2.91 m) arm and 28-in. (700 mm) triple semi-grouser shoes
20 ft . (6 .10 m) 8,048 (3651) 8,048 (3651)
15 ft . (4 .57 m) 8,970 (4069) 8,970 (4069) 8,574 (3889) 7,288 (3306)
10 ft . (3 .05 m) 13,847 (6281) 13,847 (6281) 10,757 (4879) 10,221 (4636) 9,329 (4232) 7,052 (3199)
5 ft . (1 .52 m) 18,108 (8214) 14,799 (6713) 12,766 (5791) 9,625 (4366) 10,309 (4676) 6,762 (3067)
Ground Line 20,308 (9212) 14,079 (6386) 14,248 (6463) 9,178 (4163) 10,593 (4805) 6,519 (2957)
–5 ft . (–1 .52 m) 14,425 (6543) 14,425 (6543) 20,412 (9259) 13,883 (6297) 14,751 (6691) 8,960 (4064) 10,455 (4742) 6,393 (2900)
–10 ft . (–3 .05 m) 23,940 (10 859) 23,940 (10 859) 18,971 (8605) 13,978 (6340) 14,028 (6363) 8,966 (4067) 10,316 (4679) 6,451 (2926)
–15 ft . (–4 .57 m) 20,943 (9500) 20,943 (9500) 15,628 (7089) 14,334 (6502) 11,249 (5102) 9,244 (4193)
200D LC with 9-ft. 7-in. (2.91 m) arm and 32-in. (800 mm) triple semi-grouser shoes
20 ft . (6 .10 m) 8,048 (3651) 8,048 (3651)
15 ft . (4 .57 m) 8,970 (4069) 8,970 (4069) 8,574 (3889) 7,389 (3352)
10 ft . (3 .05 m) 13,847 (6281) 13,847 (6281) 10,757 (4879) 10,353 (4696) 9,329 (4232) 7,152 (3244)
5 ft . (1 .52 m) 18,108 (8214) 14,992 (6800) 12,766 (5791) 9,758 (4426) 10,309 (4676) 6,862 (3113)
Ground Line 20,308 (9212) 14,272 (6474) 14,248 (6463) 9,310 (4223) 10,750 (4876) 6,619 (3002)
–5 ft . (–1 .52 m) 14,425 (6543) 14,425 (6543) 20,412 (9259) 14,076 (6385) 14,751 (6691) 9,092 (4124) 10,612 (4814) 6,493 (2945)
–10 ft . (–3 .05 m) 23,940 (10 859) 23,940 (10 859) 18,971 (8605) 14,171 (6428) 14,028 (6363) 9,098 (4127) 10,316 (4679) 6,552 (2972)
–15 ft . (–4 .57 m) 20,943 (9500) 20,943 (9500) 15,628 (7089) 14,527 (6589) 11,249 (5102) 9,376 (4253)
Buckets
A full line of buckets is offered to meet a wide variety of applications . Digging forces are with power boost . The buckets have an adjustable bushing for side clearance, with the exception
of the ditching bucket . Tooth selection inclused either the John Deere Tanggs, Standard, Tiger, Twin Tiger, Abrasion panel or Flare tooth or the ESCO (Vertalok) Standard, TIger, Twin Tiger
or Flare tooth . Replaceable cutting edges are available through John Deere parts . Optional side cutters add 6 inches (150 mm) to bucket widths . Capacities are SAE heaped ratings .
Bucket Bucket Bucket Arm Dig Force Arm Dig Force Bucket
Type Bucket Width Capacity Weight Dig Force 7 ft. 11 in. (2.42 m) 9 ft. 7 in. (2.91 m) Tip Radius No. Teeth
in. mm cu. yd. m 3 lb. kg lb. kN lb. kN lb. kN in. mm
General-Purpose 30 760 0 .79 0 .60 1,432 650 28,904 128 .6 27,806 123 .7 22,873 101 .7 58 .00 1473 4
High Capacity 36 915 1 .00 0 .76 1,621 736 28,904 128 .6 27,806 123 .7 22,873 101 .7 58 .00 1473 5
42 1065 1 .22 0 .93 1,790 813 28,904 128 .6 27,806 123 .7 22,873 101 .7 58 .00 1473 5
48 1220 1 .43 1 .09 1,976 897 28,904 128 .6 27,806 123 .7 22,873 101 .7 58 .00 1473 6
Heavy Duty 24 610 0 .52 0 .40 1,197 543 29,099 129 .4 27,877 124 .0 22,924 102 .0 57 .61 1463 4
30 760 0 .71 0 .54 1,369 622 29,099 129 .4 27,877 124 .0 22,924 102 .0 57 .61 1463 4
36 915 0 .90 0 .69 1,559 708 29,099 129 .4 27,877 124 .0 22,924 102 .0 57 .61 1463 5
42 1065 1 .09 0 .83 1,731 786 29,099 129 .4 27,877 124 .0 22,924 102 .0 57 .61 1463 5
48 1220 1 .29 0 .99 1,921 872 29,099 129 .4 27,877 124 .0 22,924 102 .0 57 .61 1463 6
Heavy-Duty 24 610 0 .56 0 .43 1,424 646 28,904 128 .6 27,806 123 .7 22,873 101 .7 58 .00 1473 4
High Capacity 30 760 0 .76 0 .58 1,593 723 28,904 128 .6 27,806 123 .7 22,873 101 .7 58 .00 1473 4
36 915 0 .97 0 .74 1,782 809 28,904 128 .6 27,806 123 .7 22,873 101 .7 58 .00 1473 5
42 1065 1 .19 0 .91 1,951 886 28,904 128 .6 27,806 123 .7 22,873 101 .7 58 .00 1473 5
Ditching 60 1524 1 .14 0 .87 1,271 577 40,279 179 .2 31,133 138 .5 25,271 112 .4 41 .62 1057 0

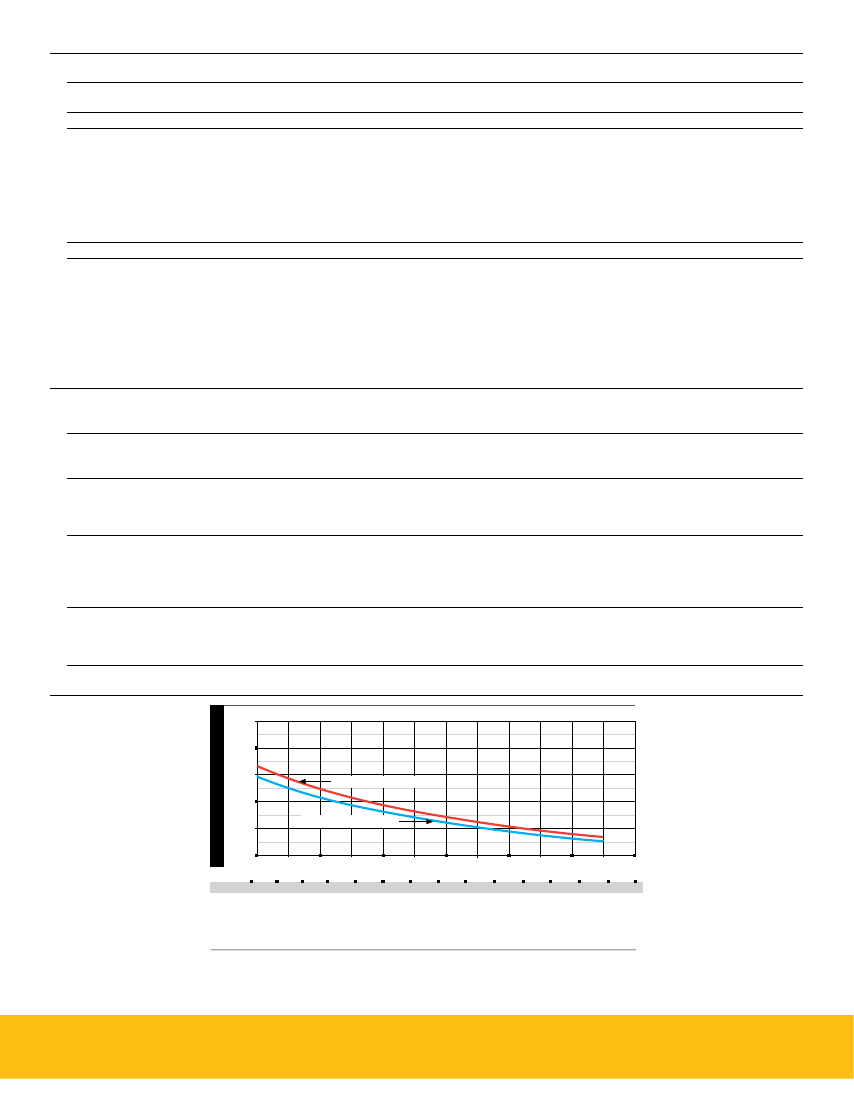

Bucket Selection Guide*
3.0
(2.3)
2.0
(1.5)
2,000 2,200 2,600 3,200 lb./cu. yd.
kg/m
3
BUCKET SIZE cu.
yd.
(m
3
)
1,600 3,400
1.0
(0.8)
1.5
(1.0)
2.5
(1.9)
3.5
(2.7)
1,200 1,400 1,800 2,400 2,800 3,000 3,600
W
et P
eat
Topsoil Coal Caliche Shale Dr
y Sand
Dr
y Clay
Limestone W
et Earth
W
et Clay
, Granite
Moist Sand W
et Sand
W
et Sand,
Gravel
1300
Contact your John Deere dealer for optimum bucket and attachment selections. These recommendations are for general conditions and average use. Does not include optional
equipment such as thumbs or couplers. Larger buckets may be possible when using light materials, for flat and level operations, less compacted materials, and volume loading
applications such as mass excavation applications in ideal conditions. Smaller buckets are recommended for adverse conditions such as off-level applications, rocks, and uneven
surfaces. Bucket capacity indicated is SAE heaped. *
700 800 900 1000 1100 1200 2000 1400 1500 1600 1700 1800 1900 2100
Deere 7-ft. 11-in. (2.42 m) Arm
Deere 9-ft. 7-in. (2.91 m) Arm
