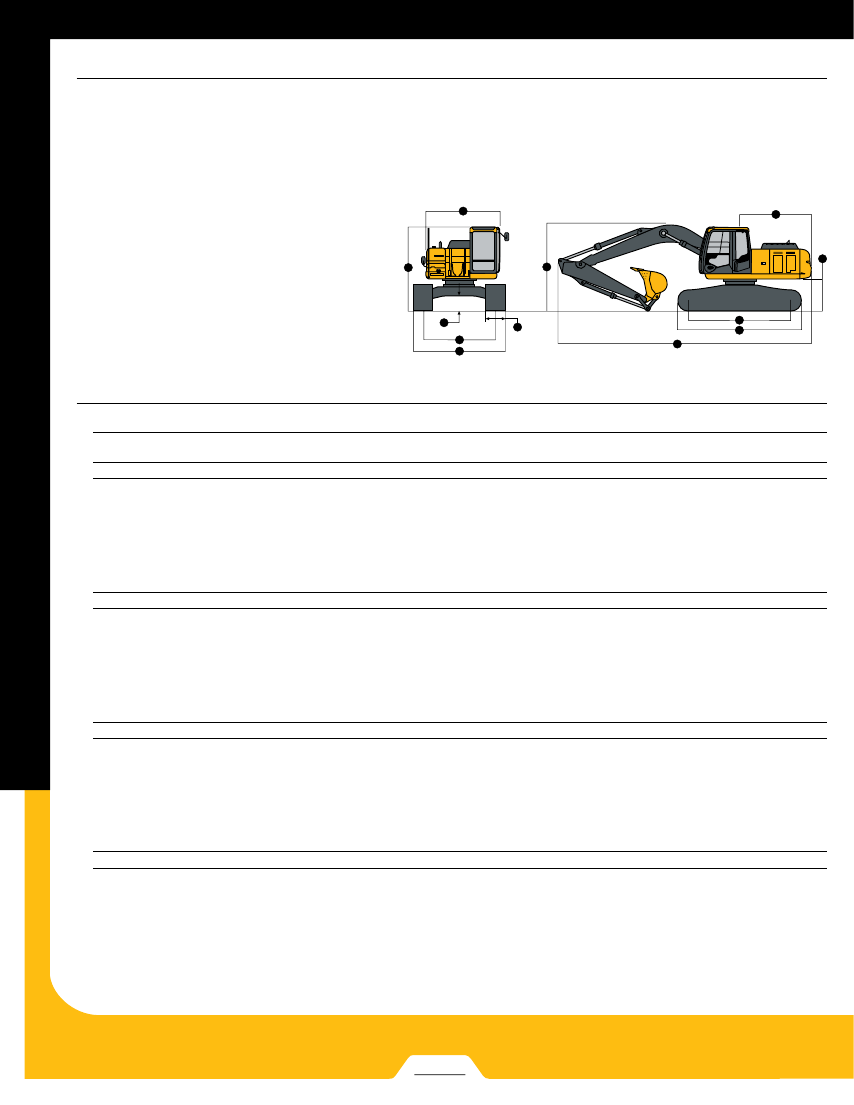

Machine Dimensions

200D

200D LC

Arm Length

7 ft. 11 in. (2.42 m)

9 ft. 7 in. (2.91 m)

7 ft. 11 in. (2.42 m)

9 ft. 7 in. (2.91 m)

Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 ft . 6 in . (9 .60 m)

31 ft . 3 in . (9 .53 m)

31 ft . 6 in . (9 .60 m)

31 ft . 3 in . (9 .53 m)

Overall Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ft . 5 in . (3 .18 m)

9 ft . 8 in . (2 .95 m)

10 ft . 5 in . (3 .18 m)

9 ft . 8 in . (2 .95 m)

Rear-End Length/Swing Radius . . . . . . . . . . . . . . . 9 ft . 0 in . (2 .75 m)

9 ft . 0 in . (2 .75 m)

Distance Between Idler/Sprocket Centerline . . . . . 11 ft . 0 in . (3 .35 m)

12 ft . 0 in . (3 .67 m)

Undercarriage Length . . . . . . . . . . . . . . . . . . . . . . 13 ft . 8 in . (4 .17 m)

14 ft . 8 in . (4 .46 m)

200D / 200D LC

Counterweight Clearance . . . . . . . . . . . . . . . . . . . 3 ft . 5 in . (1031 mm)

Upperstructure Width . . . . . . . . . . . . . . . . . . . . . . 8 ft . 11 in . (2 .71 m)

Cab Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft . 8 in . (2 .95 m)

Track Width with Triple Semi-Grouser Shoes . . . . 24 in . (600 mm) /

28 in . (700 mm) /

32 in . (800 mm)

Gauge Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 ft . 10 in . (2 .39 m)

Ground Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 18 in . (450 mm)

Overall Width with Triple Semi-Grouser Shoes

24 in . (600 mm) . . . . . . . . . . . . . . . . . . . . . . . 9 ft . 10 in . (2 .99 m)

28 in . (700 mm) . . . . . . . . . . . . . . . . . . . . . . . 10 ft . 2 in . (3 .09 m)

32 in . (800 mm) . . . . . . . . . . . . . . . . . . . . . . . 10 ft . 6 in . (3 .19 m)

Lift Charts

Boldface italic type indicates hydraulic-limited capacities; lightface type indicates stability-limited capacities, in lb . (kg) . Ratings are at bucket lift hook, using 1 .12-cu .-yd . (0 .86 m

)

bucket; standard counterweight, situated on firm, level, uniform supporting surface . Figures do not exceed 87 percent of hydraulic capacity or 75 percent of weight needed to tip machine .

Load Point

10 ft. (3.05 m)

15 ft. (4.57 m)

20 ft. (6.10 m)

25 ft. (7.62 m)

Height

Over Front

Over Side

Over Front

Over Side

Over Front

Over Side

Over Front

Over Side

200D with 9-ft. 7-in. (2.91 m) arm and 28-in. (700 mm) triple semi-grouser shoes

20 ft . (6 .10 m)

8,048 (3651)

15 ft . (4 .57 m)

8,970 (4069)

8,574 (3889)

6,523 (2959)

10 ft . (3 .05 m)

13,847 (6281)

10,757 (4879)

9,161 (4155)

9,329 (4232)

6,290 (2853)

5 ft . (1 .52 m)

18,108 (8214)

13,135 (5958)

12,766 (5791)

8,578 (3891)

9,515 (4316)

6,004 (2723)

Ground Line

20,308 (9212)

12,435 (5640)

13,103 (5943)

8,139 (3692)

9,255 (4198)

5,765 (2615)

–5 ft . (–1 .52 m)

14,425 (6543)

20,412 (9259)

12,245 (5554)

12,866 (5836)

7,925 (3595)

9,120 (4137)

5,641 (2559)

–10 ft . (–3 .05 m)

23,940 (10 859)

18,971 (8605)

12,337 (5596)

12,873 (5839)

7,931 (3597)

9,183 (4165)

5,699 (2585)

–15 ft . (–4 .57 m)

20,943 (9500)

15,628 (7089)

12,683 (5753)

11,249 (5102)

8,204 (3721)

200D with 9-ft. 7-in. (2.91 m) arm and 32-in. (800 mm) triple semi-grouser shoes

20 ft . (6 .10 m)

8,048 (3651)

15 ft . (4 .57 m)

8,970 (4069)

8,574 (3889)

6,581 (2985)

10 ft . (3 .05 m)

13,847 (6281)

10,757 (4879)

9,237 (4190)

9,329 (4232)

6,348 (2879)

5 ft . (1 .52 m)

18,108 (8214)

13,244 (6007)

12,766 (5791)

8,653 (3925)

9,603 (4356)

6,062 (2750)

Ground Line

20,308 (9212)

12,545 (5690)

13,223 (5998)

8,214 (3726)

9,344 (4238)

5,822 (2641)

–5 ft . (–1 .52 m)

14,425 (6543)

20,412 (9259)

12,354 (5604)

12,985 (5890)

8,001 (3629)

9,209 (4177)

5,698 (2585)

–10 ft . (–3 .05 m)

23,940 (10 859)

18,971 (8605)

12,446 (5645)

12,992 (5893)

8,007 (3632)

9,272 (4206)

5,756 (2611)

–15 ft . (–4 .57 m)

20,943 (9500)

15,628 (7089)

12,792 (5802)

11,249 (5102)

8,279 (3755)

200D LC with 7-ft. 11-in. (2.42 m) arm and 32-in. (800 mm) triple semi-grouser shoes

20 ft . (6 .10 m)

9,001 (4083)

15 ft . (4 .57 m)

11,212 (5086)

9,795 (4443)

9,278 (4208)

7,199 (3265)

10 ft . (3 .05 m)

15,341 (6959)

11,500 (5216)

10,132 (4596)

9,847 (4467)

7,008 (3179)

5 ft . (1 .52 m)

13,340 (6051)

9,589 (4349)

10,677 (4843)

6,755 (3064)

Ground Line

20,586 (9338)

14,165 (6425)

14,533 (6592)

9,216 (4180)

10,682 (4845)

6,557 (2974)

–5 ft . (–1 .52 m)

20,010 (9076)

14,109 (6400)

14,669 (6654)

9,073 (4115)

10,607 (4811)

6,488 (2943)

–10 ft . (–3 .05 m)

20,215 (9169)

18,022 (8175)

14,284 (6479)

13,444 (6098)

9,153 (4152)

–15 ft . (–4 .57 m)

17,763 (8057)

13,813 (6265)

200D LC with 9-ft. 7-in. (2.91 m) arm and 24-in. (600 mm) triple semi-grouser shoes

20 ft . (6 .10 m)

8,048 (3651)

15 ft . (4 .57 m)

8,970 (4069)

8,574 (3889)

7,158 (3247)

10 ft . (3 .05 m)

13,847 (6281)

10,757 (4879)

10,049 (4558)

9,329 (4232)

6,922 (3140)

5 ft . (1 .52 m)

18,108 (8214)

14,549 (6599)

12,766 (5791)

9,454 (4288)

10,309 (4676)

6,632 (3008)

Ground Line

20,308 (9212)

13,829 (6273)

14,248 (6463)

9,007 (4086)

10,390 (4713)

6,389 (2898)

–5 ft . (–1 .52 m)

14,425 (6543)

20,412 (9259)

13,633 (6184)

14,529 (6590)

8,789 (3987)

10,251 (4650)

6,263 (2841)

–10 ft . (–3 .05 m)

23,940 (10 859)

18,971 (8605)

13,728 (6227)

14,028 (6363)

8,795 (3989)

10,316 (4679)

6,321 (2867)

–15 ft . (–4 .57 m)

20,943 (9500)

15,628 (7089)

14,083 (6388)

11,249 (5102)

9,073 (4115)
