Swing Mechanism 200D / 200D LC
Swing Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 .3 rpm
Swing Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50,662 lb .-ft . (68 900 Nm)
Ground Pressure 200D 200D LC
Triple Semi-Grouser Shoes
24 in . (600 mm) . . . . . . . . . . . . . . . . . . . . . . . . . 6 .90 psi (47 .6 kPa) 6 .87 psi (47 .4 kPa)
28 in . (700 mm) . . . . . . . . . . . . . . . . . . . . . . . . . 6 .10 psi (42 .1 kPa) 6 .08 psi (41 .9 kPa)
32 in . (800 mm) . . . . . . . . . . . . . . . . . . . . . . . . . 5 .30 psi (36 .5 kPa) 5 .30 psi (36 .5 kPa)
Serviceability 200D /200D LC
Refill Capacities
Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106 gal . (400 .0 L)
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . 27 .6 qt . (26 .1 L)
Engine Oil with Filter . . . . . . . . . . . . . . . . . . . . . . 24 qt . (23 .0 L)
Hydraulic Tank . . . . . . . . . . . . . . . . . . . . . . . . . . 36 gal . (135 .0 L)
Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . 63 .4 gal . (240 .0 L)
Gearbox
Propel (each) . . . . . . . . . . . . . . . . . . . . . . . . . 7 .2 qt . (6 .8 L)
Swing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 .0 qt . (6 .2 L)
Pump Drive . . . . . . . . . . . . . . . . . . . . . . . . . . 1 .1 qt . (1 .0 L)
Operating Weights 200D 200D LC
With Full Fuel Tank; 175-lb . (79 kg) Operator;
42-in . (1065 mm), 1 .19-cu .-yd . (0 .91 m 3 ),
1,951-lb . (886 kg) Heavy-Duty Bucket; 9-ft .
7-in . (2 .91 m) Arm; 10,463-lb . (4750 kg)
Counterweight; and 32-in . (800 mm) Triple
Semi-Grouser Shoes . . . . . . . . . . . . . . . . . . . . . . 48,617 lb . (22 072 kg) 49,940 lb . (22 673 kg)
Optional Components
Undercarriage with Triple Semi-Grouser Shoes
24 in . (600 mm) . . . . . . . . . . . . . . . . . . . . . . . . . 14,873 lb . (6752 kg) 16,196 lb . (7353 kg)
28 in . (700 mm) . . . . . . . . . . . . . . . . . . . . . . . . . 15,733 lb . (7143 kg) 17,056 lb . (7743 kg)
32 in . (800 mm) . . . . . . . . . . . . . . . . . . . . . . . . . 16,381 lb . (7437 kg) 17,704 lb . (8038 kg)
One-Piece Boom (with arm cylinder) . . . . . . . . . . . . . 3,815 lb . (1732 kg) 3,815 lb . (1732 kg)
Arm with Bucket Cylinder and Linkage
7 ft . 11 in . (2 .42 m) . . . . . . . . . . . . . . . . . . . . . . . 2,044 lb . (928 kg) 2,044 lb . (928 kg)
9 ft . 7 in . (2 .91 m) . . . . . . . . . . . . . . . . . . . . . . . . 2,181 lb . (990 kg) 2,181 lb . (990 kg)
Boom Lift Cylinders (2) Total Weight . . . . . . . . . . . . . 750 lb . (341 kg) 750 lb . (341 kg)
42-in . (1065 mm), 1 .19-cu .-yd . (0 .91 m 3 ) Heavy-
Duty Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,951 lb . (886 kg) 1,951 lb . (886 kg)
Counterweight (standard) . . . . . . . . . . . . . . . . . . . . . . 10,463 lb . (4750 kg) 10,463 lb . (4750 kg)
Operating Dimensions 200D 200D LC
Arm Length Arm Length Arm Length Arm Length
7 ft. 11 in. (2.42 m) 9 ft. 7 in. (2.91 m) 7 ft. 11 in. (2.42 m) 9 ft. 7 in. (2.91 m)
Arm Force with 42-in . (1065 mm) Heavy-Duty
Bucket with Power Boost . . . . . . . . . . . . . . . . . . . 27,877 lb . (124 .0 kN) 22,924 lb . (102 .0 kN) 27,877 lb . (124 .0 kN) 22,924 lb . (102 .0 kN)
Bucket Digging Force with 42-in . (1065 mm)
1 .19-cu .-yd . (0 .91 m 3 ) Heavy-Duty Bucket
with Power Boost . . . . . . . . . . . . . . . . . . . . . . . . . 29,099 lb . (129 .4 kN) 29,099 lb . (129 .4 kN) 29,099 lb . (129 .4 kN) 29,099 lb . (129 .4 kN)
Lifting Capacity Over Front at Ground Level
20-ft . (6 .1 m) Reach with Power Boost . . . . . . . . 14,607 lb . (6632 kg) 13,223 lb . (6003 kg) 14,533 lb . (6598 kg) 14,248 lb . (6469 kg)
A Maximum Reach . . . . . . . . . . . . . . . . . . . . . . . . 30 ft . 11 in . (9 .43 m) 32 ft . 7 in . (9 .92 m) 30 ft . 11 in . (9 .43 m) 32 ft . 7 in . (9 .92 m)
A | Maximum Reach at Ground Level . . . . . . . . . . . 30 ft . 4 in . (9 .25 m) 32 ft . 0 in . (9 .75 m) 30 ft . 4 in . (9 .25 m) 32 ft . 0 in . (9 .75 m)
B Maximum Digging Depth . . . . . . . . . . . . . . . . . . 20 ft . 3 in . (6 .18 m) 21 ft . 11 in . (6 .68 m) 20 ft . 3 in . (6 .18 m) 21 ft . 11 in . (6 .68 m)
B | Maximum Digging Depth at 8-ft . (2 .44 m)
Flat Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 ft . 6 in . (5 .95 m) 21 ft . 4 in . (6 .50 m) 19 ft . 6 in . (5 .95 m) 21 ft . 4 in . (6 .50 m)
C Maximum Cutting Height . . . . . . . . . . . . . . . . . . 31 ft . 9 in . (9 .67 m) 32 ft . 11 in . (10 .04 m) 31 ft . 9 in . (9 .67 m) 32 ft . 11 in . (10 .04 m)
D Maximum Dumping Height . . . . . . . . . . . . . . . . . 22 ft . 5 in . (6 .83 m) 23 ft . 7 in . (7 .18 m) 22 ft . 5 in . (6 .83 m) 23 ft . 7 in . (7 .18 m)
E Minimum Swing Radius . . . . . . . . . . . . . . . . . . . 10 ft . 9 in . (3 .28 m) 10 ft . 5 in . (3 .18 m) 10 ft . 9 in . (3 .28 m) 10 ft . 5 in . (3 .18 m)
F Maximum Vertical Wall . . . . . . . . . . . . . . . . . . . 17 ft . 5 in . (5 .30 m) 19 ft . 8 in . (5 .99 m) 17 ft . 5 in . (5 .30 m) 19 ft . 8 in . (5 .99 m)
G Tail Swing Radius . . . . . . . . . . . . . . . . . . . . . . . 9 ft . 0 in . (2 .75 m) 9 ft . 0 in . (2 .75 m) 9 ft . 0 in . (2 .75 m) 9 ft . 0 in . (2 .75 m)

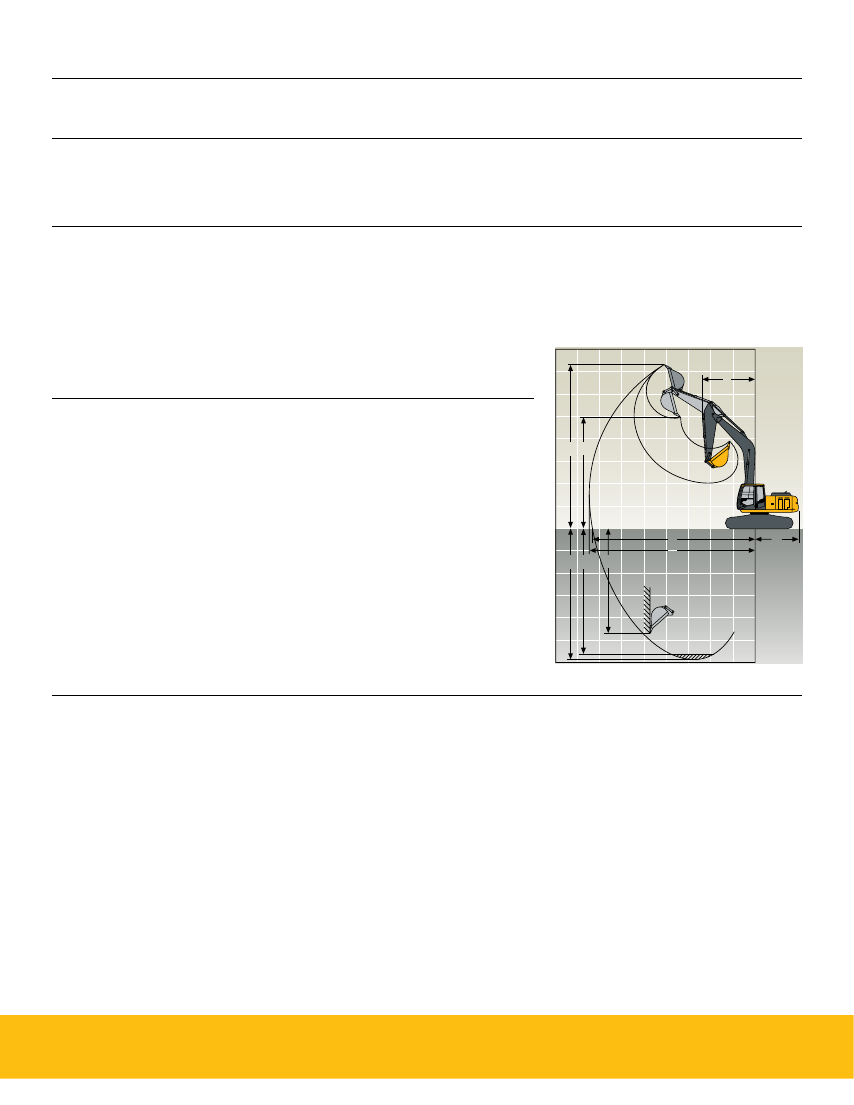

CENTERLINE OF SWING
GROUND LINE
G
E
C D
B B’
A’
A
F
