48 – English
Repair instructions
Inlet manifold
The intake system has two intakes.
1. The lower intake leads the fuel and air mixture
from the carburettor to the cylinder.
2. The upper intake leads air to the cylinder.
Assembling the intake system
1

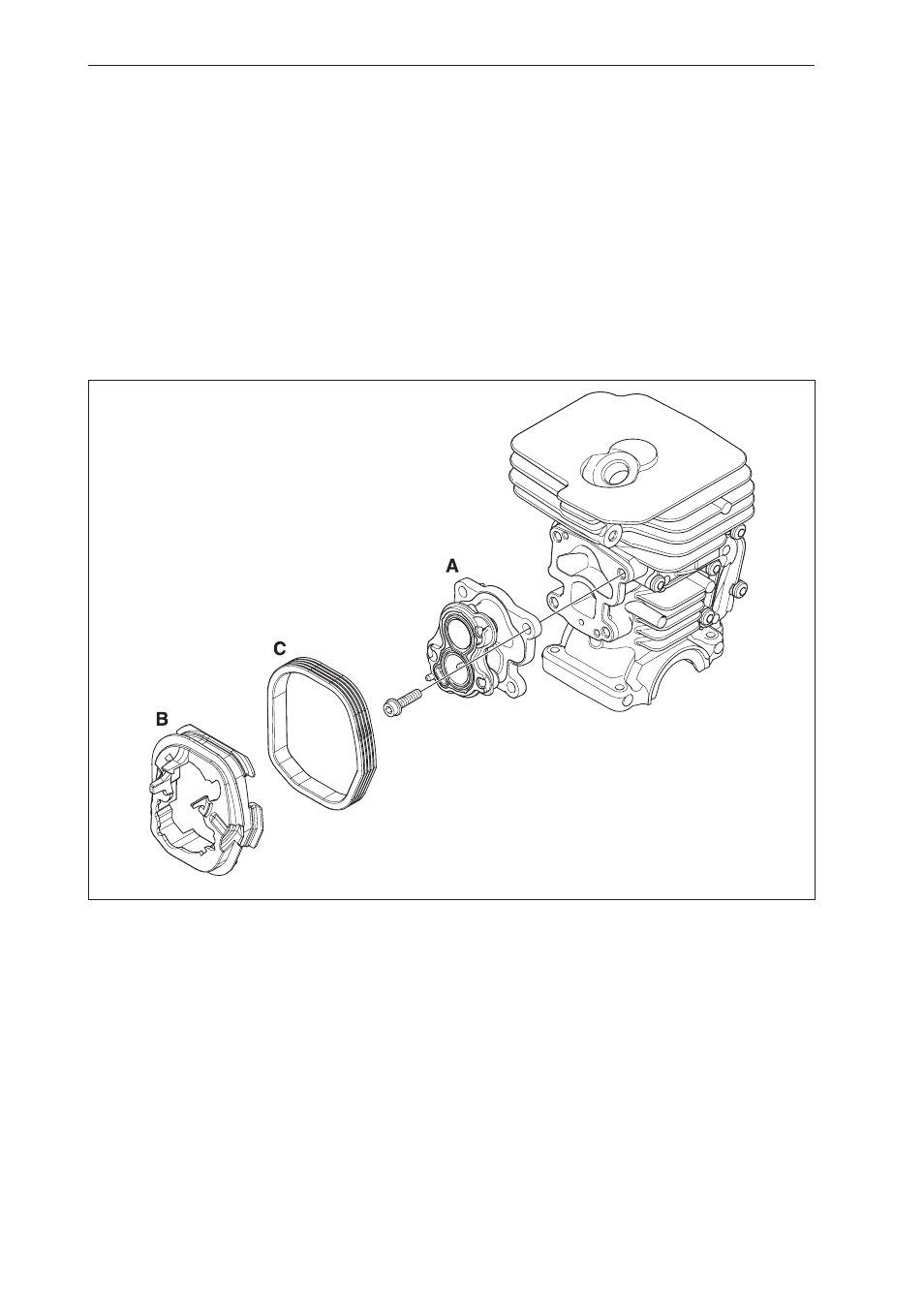

Mount the intake manifold (A) and the partition
walls (B and C) on the cylinder using tools 502 50
87-01 (see figure 62).
Fig 62
