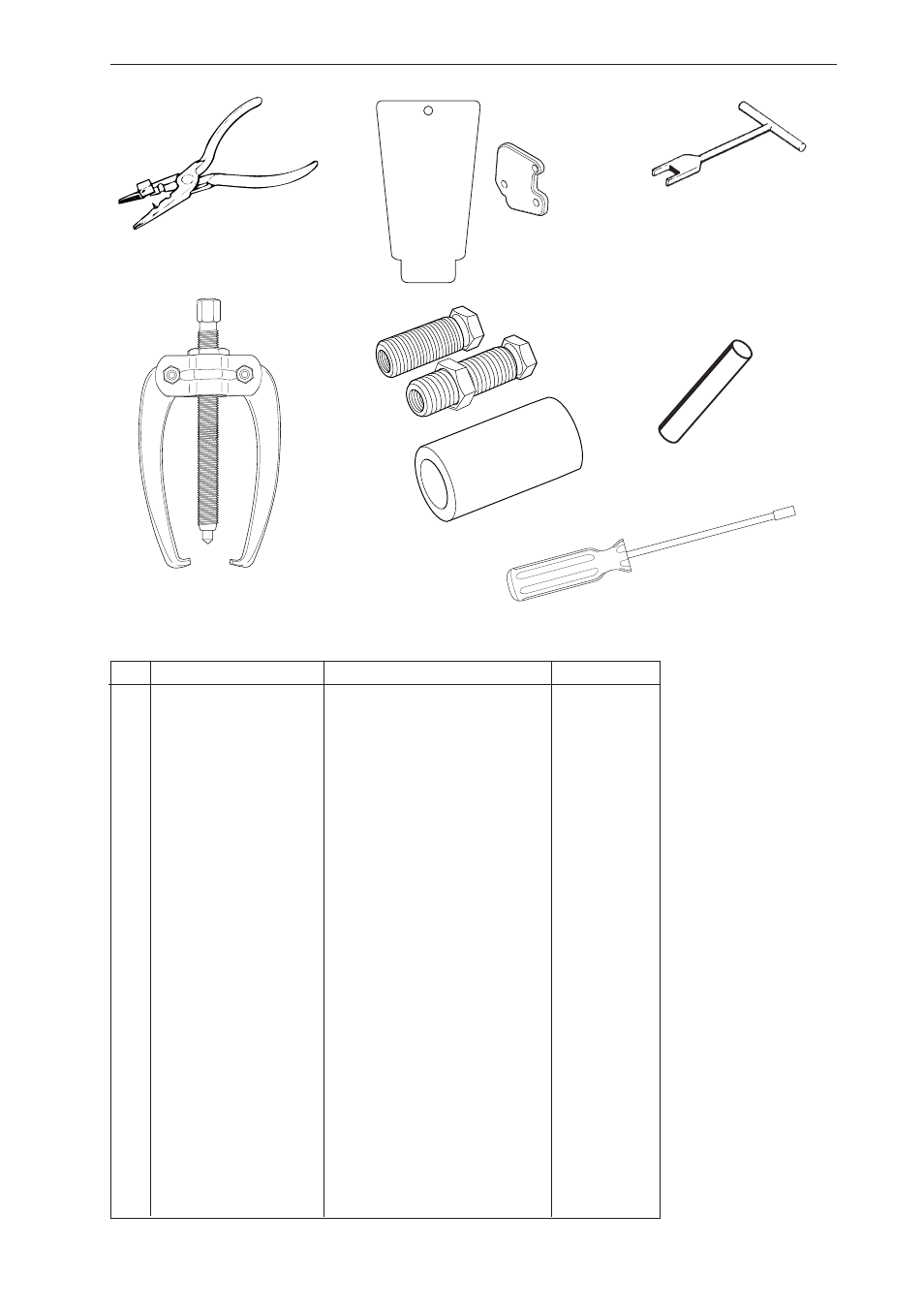

Special tools
12
13a
14
15
13b
16a
16c
16b
17
18
Item Description
Used for
Order no.
1 Clutch tool
Centrifugal clutch
502 54 16-03
2 Piston stop
Locking the crankshaft
504 91 06-05
3 Fuel filter hook
Withdrawing the fuel filter
502 50 83-01
4 Allen key, 4mm
For M5 bolts
502 50 87-01
5 Allen key, 4mm
For M5 bolts
502 50 18-01
5 Allen key, 5mm
For M6 bolts
502 50 64-01
6 Pressure tester
Pressure testing cylinder
503 84 40-02
7 Feeler gauge
Adjusting ignition module
502 51 34-02
8 Assembly fixture
Assembling chain saw
502 51 02-01
9 Pressure gauge
Pressurisation during testing
531 03 06-23
10 Test spark plug
Checking the ignition module
501 97 64-01
11 Rev counter
Adjusting carburettor
502 71 14-01
12 Assembly pliers
Fitting spark plug guard
502 50 06-01
13a Cover plate, exhaust
Sealing the exhaust port
502 54 11-02
13b Cover plates, inlet
Sealing the intake manifold
504 63 93-01
14 Assembly tool
Assembling spring, chain brake 502 50 67-01
15 Puller
Pulling bearing of crankshaft
504 90 90-01
16a Sleeve
Fitting crankshaft
502 50 30-22
16b Shaft extension
Flywheel side
502 50 30-22
16c Shaft extension
Cluch side
502 50 30-22
17 Punch
Dismantling the flywheel
502 51 94-01
18 Adjustment screwdriver Adjustment of the carburettor
530 03 55-60
