Repair instructions

7.8 Ignition module and flywheel
– refitting

Fit the flywheel on the crankshaft journal. Turn the

flywheel so that the key lines up with the keyway in

the shaft.

Fit the nut on the shaft and tighten to a torque of

25-30 Nm (see figure 11).

To refit the ignition module proceed as follows:

Turn the flywheel so that the magnets are in line with

the ignition module. Fit the ignition module with the

plastic feeler gauge (502 51 34- 02) held in position

at the same time, without tightening the bolts. Fit the

earth cable (black) (A). Set a distance of 0.3 +/- 0.1

mm, between the ignition module and magnet. The

measurement applies to the two lowest lugs on

the ignition module. Tighten the screws, tightening

torque 4.5–6 Nm. Fit the blue cable on the ignition

module

(see figure 12).

Then refit:

• cable guide and press the leads into position
• HT lead
• starter assembly, tighten to a torque of 2.5–3.5

• cylinder cover

When replacing the cables, they are fitted on the

stop switch as shown in middle figure on the pre-

vious page.

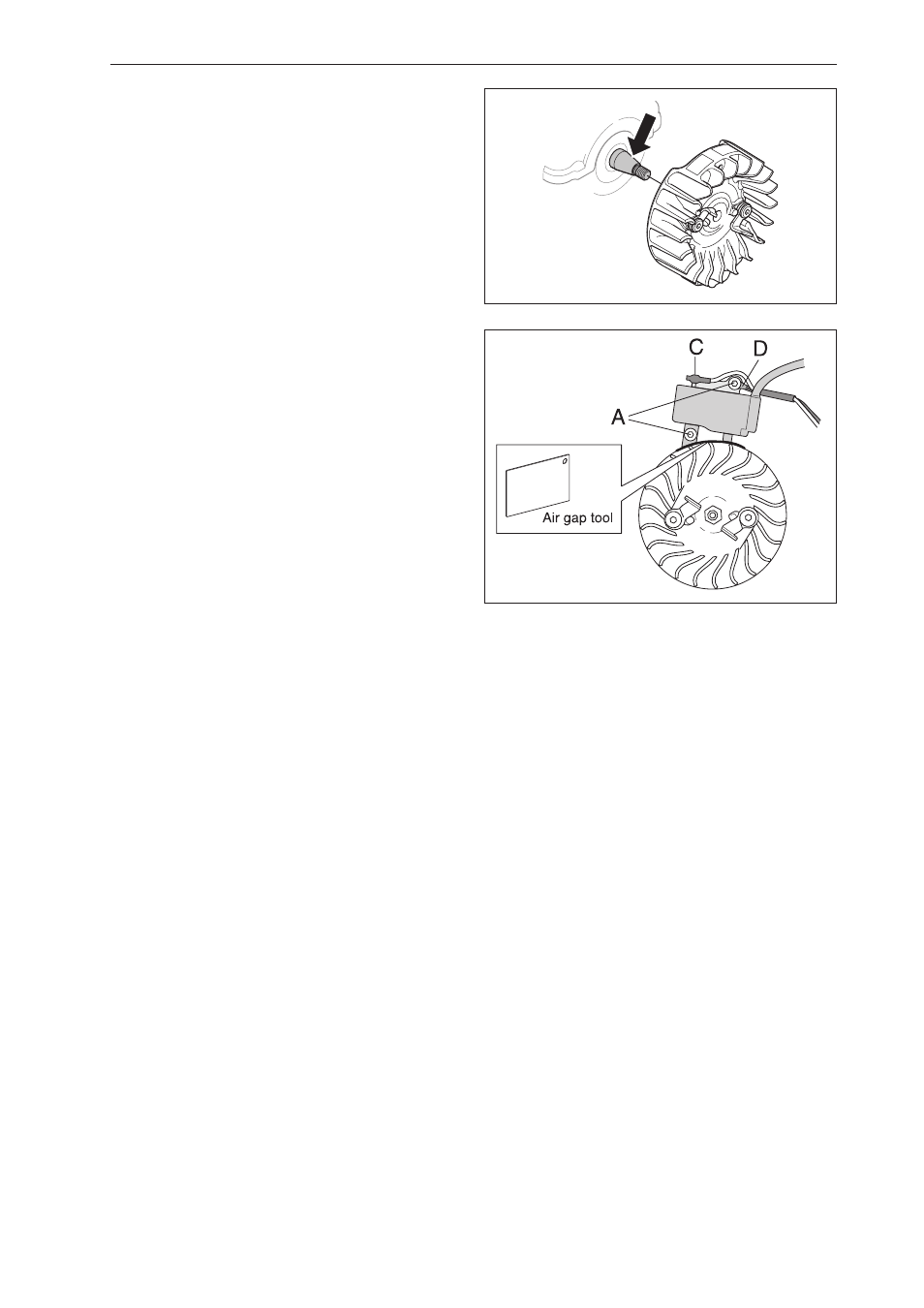

Fig 11

Fig 12
