Repair instructions

7.7 Ignition module and flywheel
– removal

1
Remove the cylinder cover. Disconnect the HT lead,

remove the spark plug and fit piston stop 502 54 15-

01. in its place. Take off the starter assembly, release

the leads from the cable guide and remove it (see

figure 8).

Knock on the punch using a metal mallet until

the flywheel releases from the shaft. Remove the

punch and the flywheel (see figure 10).

Cleaning and inspection

• Clean all parts, especially the tapers on the

flywheel and shaft.

• Check that the flywheel is not cracked or da-

maged in any other way.

If replacing the ignition module (B), loosen the

cable lug (C) and screw (A) and unscrew it. The

ignition module can be left in place if you are simply

removing the flywheel

(see figure 9).

Loosen the flywheel nut (E) using a suitable socket

and remove it (see figure 10).

When replacing the cables, they are fitted on the

stop switch, as shown in figure (see figure 9).

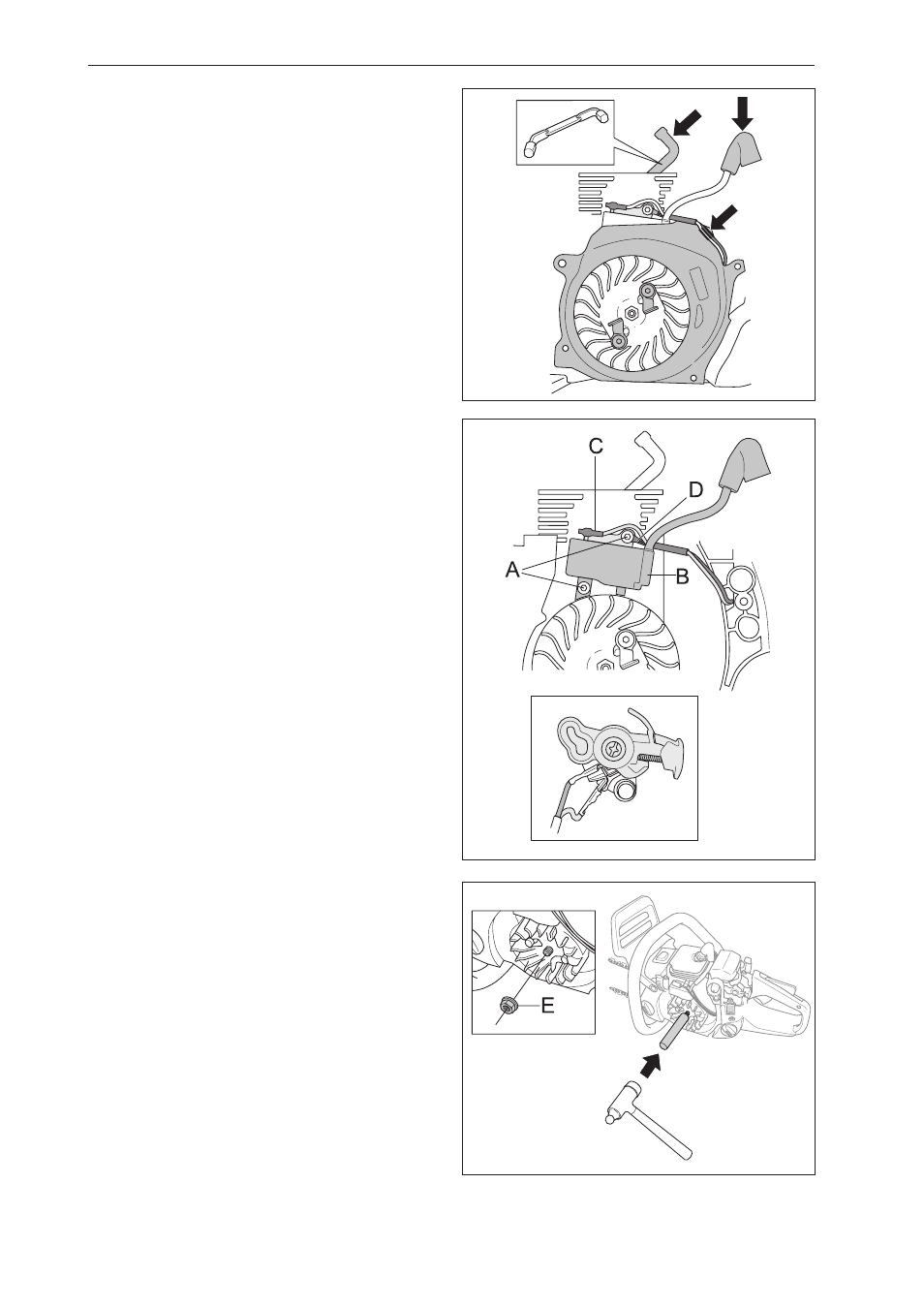

Fig 8

Fig 9

Fig 10
