Getting Started
E-4

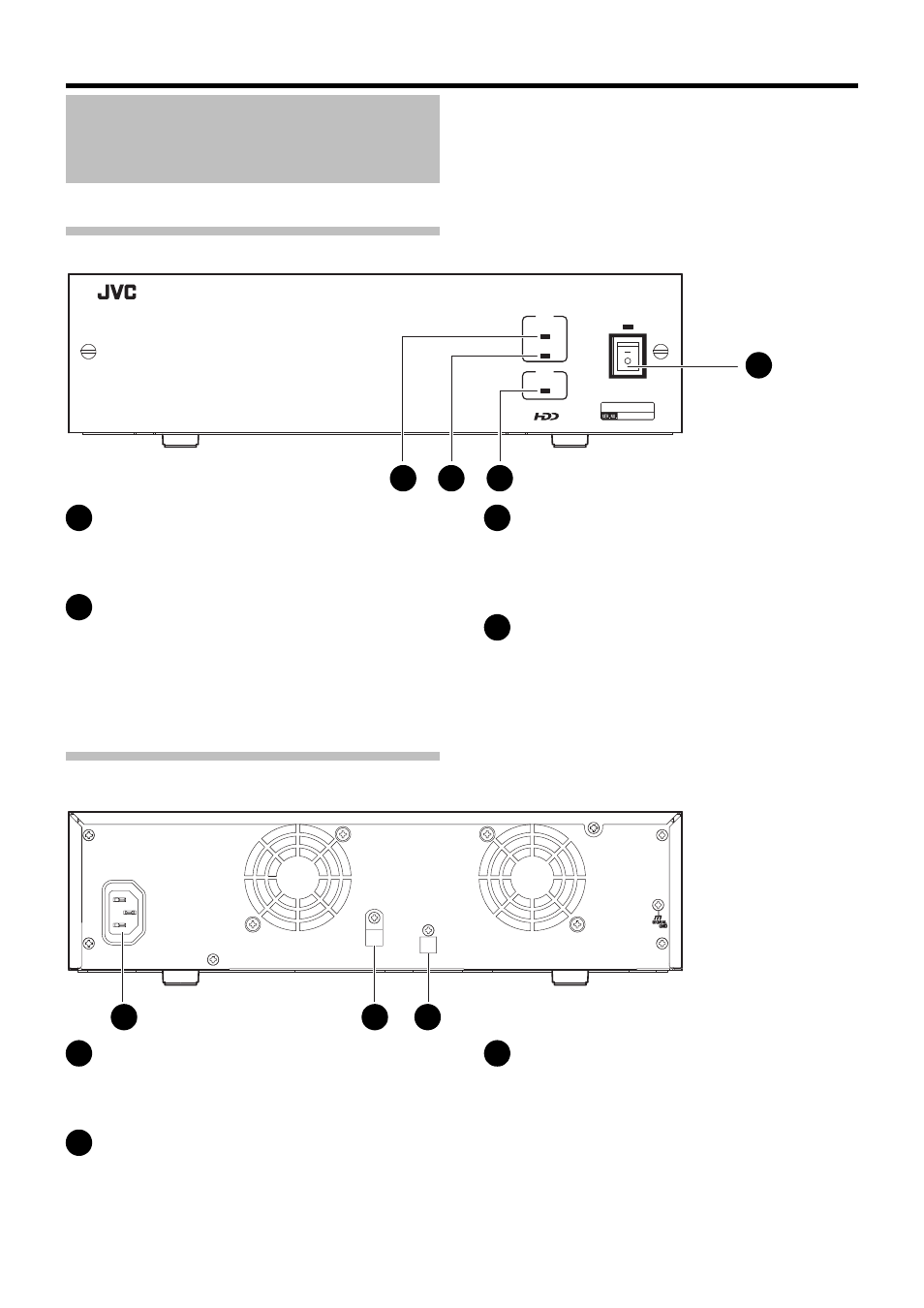

Part Names and Functions
Front View
1
[POWER] switch
Turns the power on and off. The POWER display lights
green after the power is switched on.
2 [HDD ACCESS] display
Lights green while the HDD is being accessed. Never
switch off the power while this display is lit.
3
[HDD ERR] display
Lights red if the HDD malfunctions. If this display lights
contact the vendor where your purchased the unit or a
JVC service representative for repairs.
4 [FAN ERR] display
Lights if the fan motor inside the unit malfunctions.
If this display lights contact the vendor where your
purchased the unit or a JVC service representative for
repairs.
Rear View
5
[AC IN] Power input terminal
The connection point for the AC 120 V - 240 V power
cord provided with the unit.
6
Cable clamp
Prevents the connection cable from disconnecting.
☞
Page E-5
7
[TO RECORDER] (DVR connection terminal)
The connection point for the provided cable and the
DVR. You must use the special cable provided for the
connection.
☞
Page E-5
EXTERNAL HDD UNIT
OFF
ON
POWER HDD
ACCESS
ERR
ERR
FAN
VR-D0U
1
2 3 4
AC IN
TO RECORDER
5 7 6
