Page 4
2

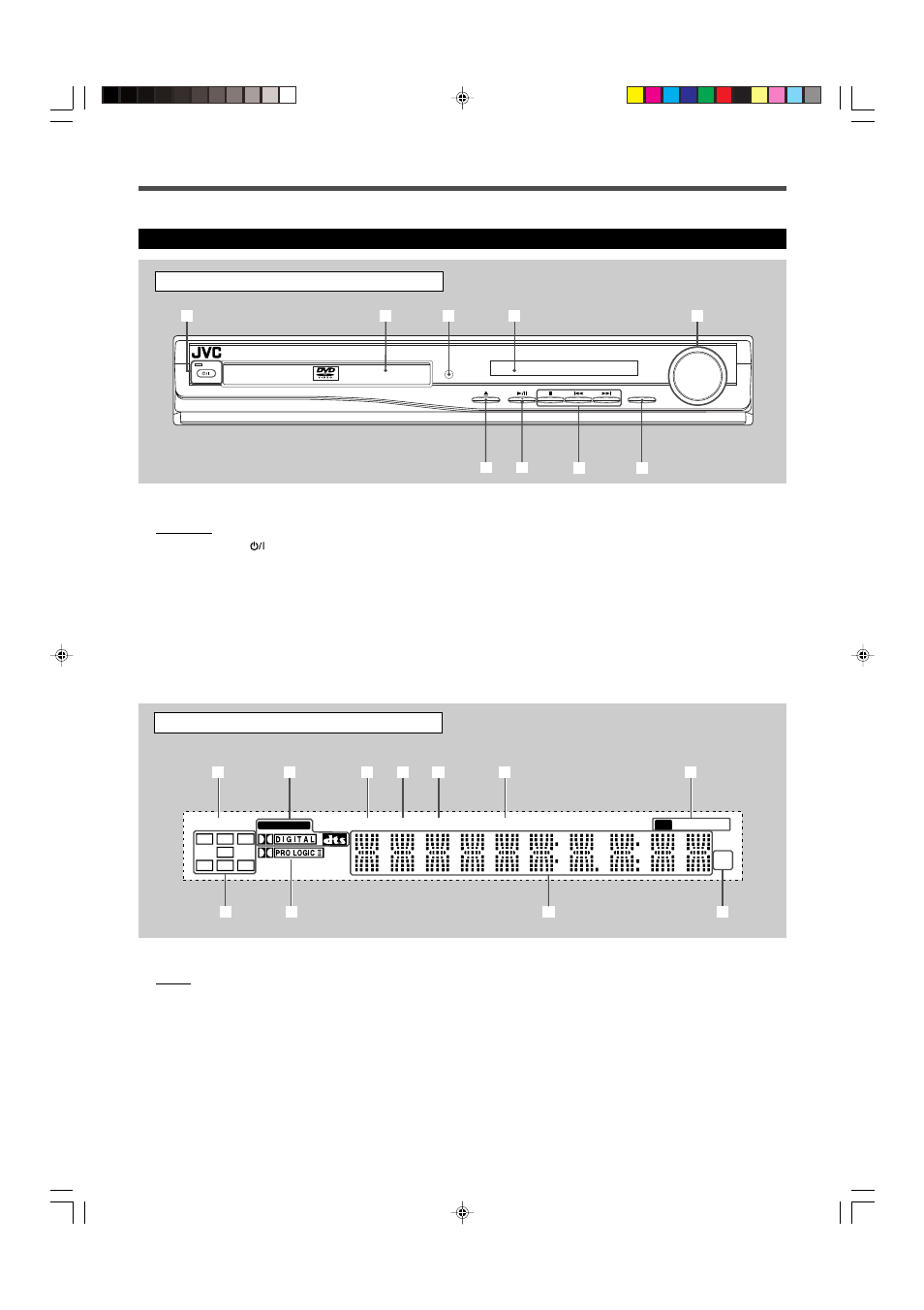

Parts Identification
Front Panel
See pages in the parentheses for details.
Display
1 P.SCAN indicator (10)
2 Digital signal indicators (13, 19, 20)
• LINEAR PCM, DOLBY DIGITAL, and DTS.
3 TITLE indicator (13)
• Indicates the current title number with main display.
4 PBC (Play Back Control) indicator
• Goes on when the PBC function is activated.
5 CHAP (chapter) indicator (13)
• Indicates the current chapter number with main display.
6 PRGM (program) indicator (35)
7 Tuner mode indicators (15, 34, 35)
• ST (stereo) and TUNED
8 Audio channel indicators
• Indicates audio channels currently being reproduced.
9 Dolby PRO LOGIC II indicator (13, 19, 20)
p Main display
q Frequency unit indicators
• kHz (for AM band station) and MHz (for FM band
station)
Display
Center Unit
See pages in the parentheses for details.
Front Panel
1 STANDBY/ON
button and STANDBY lamp (12–15)
2 Disc tray (12)
3 Remote sensor
4 Display
5 VOLUME control (13, 15)
6
0 (open/close) button (12, 14)
• Pressing this button also turns on the power and
changes the source to the DVD/CD.
7
3/8 (play/pause) button (13, 14, 31)
• Pressing this button also turns on the power and
changes the source to the DVD/CD.
8 Multi operation buttons
•
4, ¢, and 7
9 SOURCE button (12, 15, 16)
VOLUME
SOURCE
STANDBY
STANDBY/ON
DVD DIGITAL THEATER SYSTEM TH-A25
2
6
7
9
8
4
5
3
1
MHz
kHz
PRGM
CHAP
TUNED
PBC
TITLE
P.SCAN
LINEAR PCM
ST
L
C
R
SW
LS
S
RS
q
9
5
6
3
4
2
7
p
8
1
