6
Prel
imi
nar
y
knowl
edge
Preliminary knowledge
Names of parts and controls
Refer to the corresponding pages indicated in () for details.

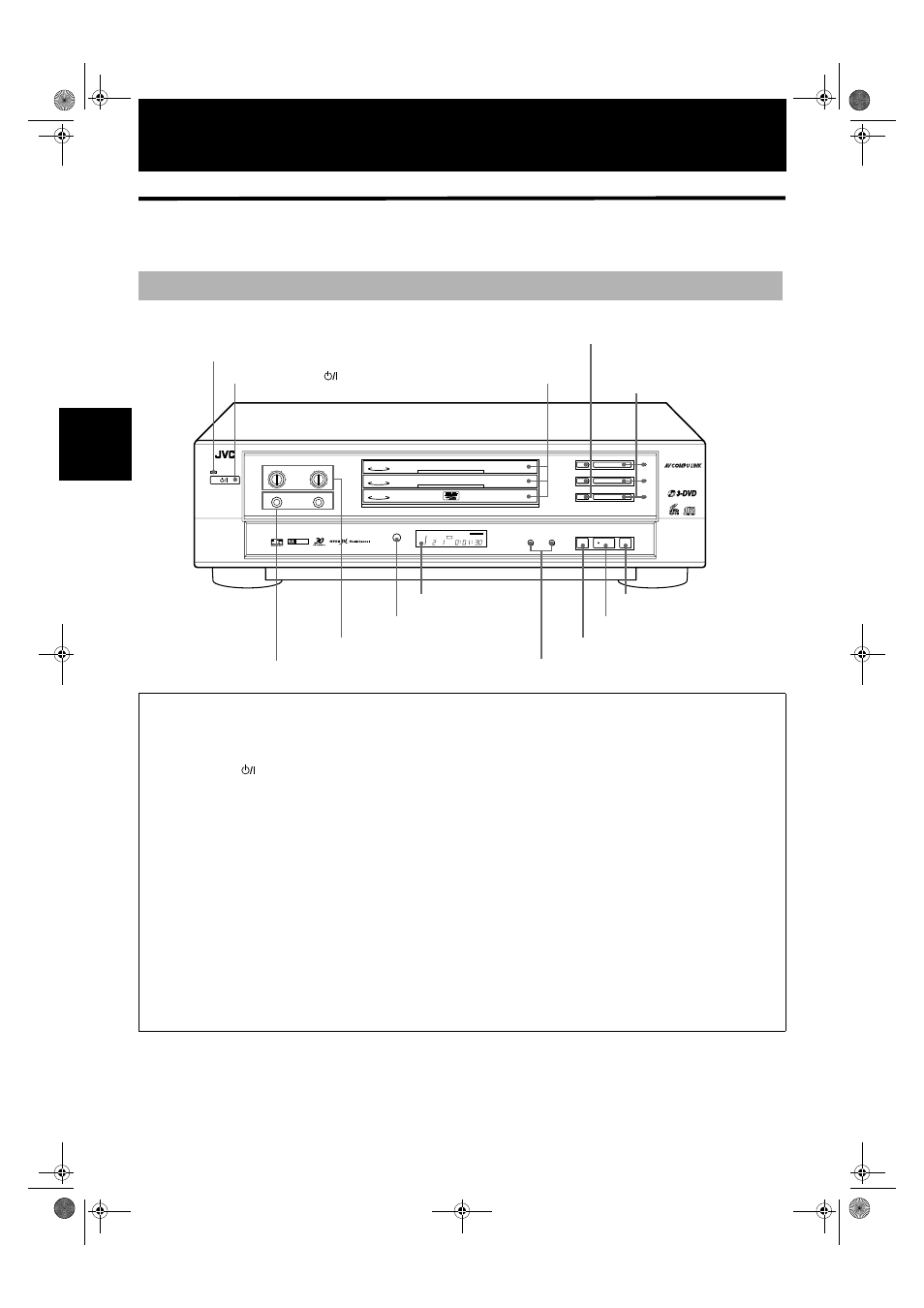

Front panel
1 STANDBY indicator
Lights when the power cord is connected and the unit
is on standby. When the unit is turned on, the
STANDBY indicator goes off.
2 STANDBY/ON button (23)
Turns the unit on or off (standby).
3 DISC 1 through DISC 3 trays (23)
Used to load discs. To insert/remove a disc, press the
0 (Open/Close) button.
4 0 (Open/Close) buttons (23)
Used to open and close the corresponding disc trays
(1 to 3).
5 DISC 1 through DISC 3 buttons with indicators
Used to start playback of the disc in the corresponding
tray with the number indicated on the button. While
playing, the corresponding indicator blinks.
6 MIC 1/2 jacks (46)
Used to connect microphones.
7 MIC 1/2 level controls (46)
Used to control the input level of microphones
connected to the MIC 1/2 jacks.
8 Remote sensor
Receives signa ls from the remote control unit.
9 Display window (7)
Indicates the current status of the unit.
0 4/¢ (SKIP) buttons (25, 42)
Used to skip a chapter, title or track.
Also, used for the page selection of a menu screen
(for Video CD/SVCD).
Holding down
4 or ¢ during playback reverses or
advances playback rapidly (except MP3 disc).
- 7 (STOP) button (24, 42)
Stops playback.
Also used to change the video output setting
(See page 17).
= 3 (PLAY) button (24, 42)
Starts playback. Also, used as a SELECT button for
PBC of Video CDs/SVCDs.
~ 8 (PAUSE) button (24, 31, 42)
Pauses playback.
Also, used to display nine continuous still pictures
(STROBE function).
3
2
1
DISC TITLE CHAP RESUME THEATER
DVD EACH
STANDBY
STANDBY/ON
PAUSE PLAY STOP SKIP
DISC 3
3 8 7
0
DISC 2 0
DISC 1 0
¢ 4
DISC 3
DISC 2
DISC 1
MIC 1 MIC 2
MIC 1
MIN MAX MIN MAX
MIC 2
DOLBY D I G I T A L
XV-M512 DVD/SUPER VCD/VCD/CD PLAYER
PLAY & EXCHANGE
1 STANDBY indicator
2 STANDBY/ON button
~ 8 (PAUSE) button
= 3 (PLAY) button
- 7 (STOP) button
0 4/¢ (SKIP) buttons
7 MIC 1/2 level controls
6 MIC 1/2 jacks
3 DISC 1 through
DISC 3 trays
4 0 (Open/Close) buttons
5 DISC 1 through
DISC 3 buttons
with indicators
9 Display window
8 Remote sensor
