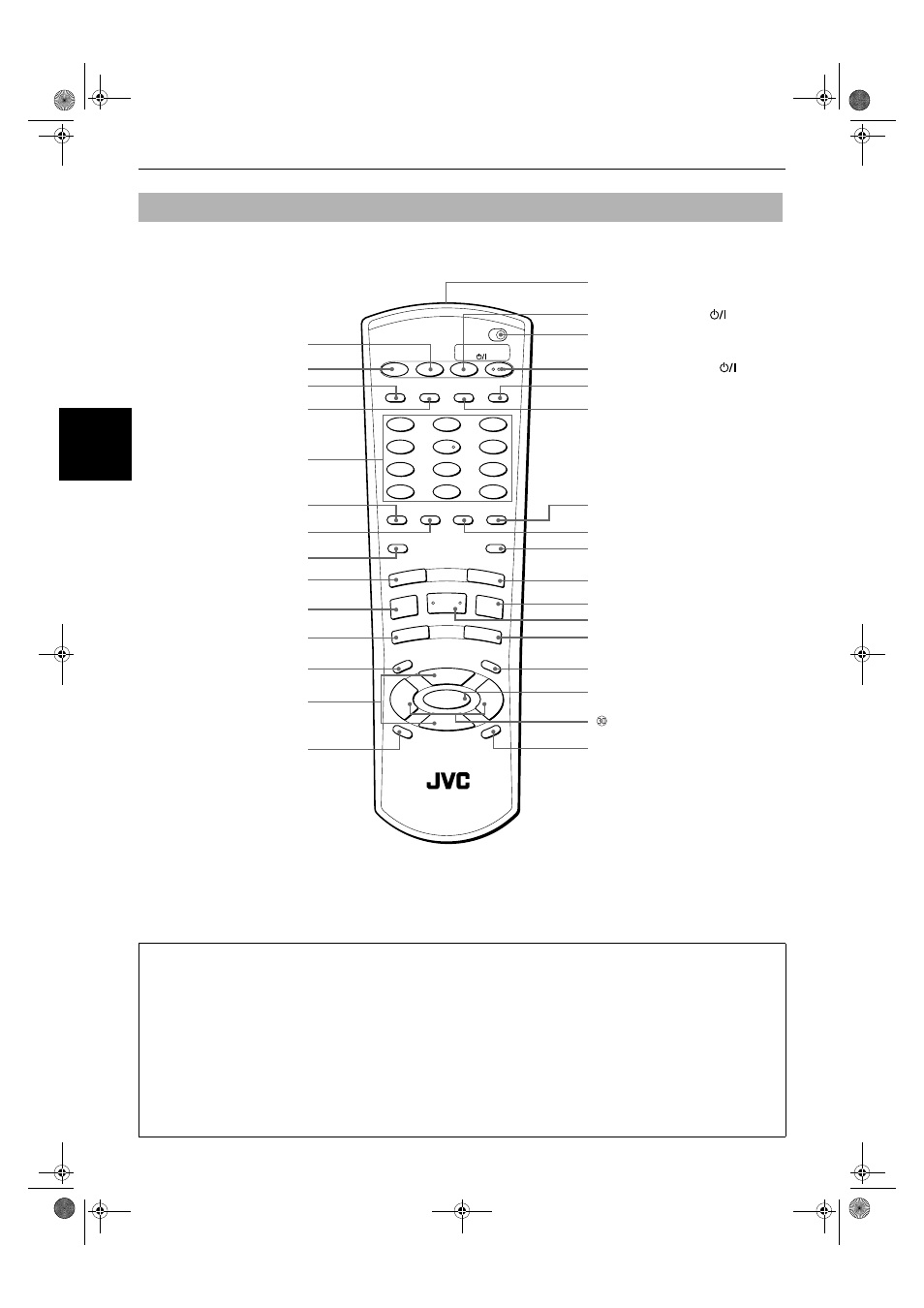

Remote control unit
1 DISC SELECT button (24, 33, 43, 47)
By pressing this button followed by the appropriate
numeric button (among 1 through 3), you can select a
disc to be played.
2 SHIFT button (46, 47, 52)
Used together with other buttons for activating their
secondary functions for KARAOKE.
3 PLAY MODE button (29, 33, 34, 35, 43 - 45)
Displays an on-screen display for controlling the
advanced playback functions.
4 3D PHONIC button (39)
Produces a simulated surround effect.
5 Numeric buttons (14, 21, 47)
When the TV - DVD switch is set to DVD, these buttons
are used to specify a disc, title, chapter, track or group
number, as well as used to enter a time for the Time
search function.
When the TV - DVD switch is set to TV, these buttons
are used to select a TV channel as well as mute the TV
audio.
6 ANGLE button (36, 37, 41)
Changes camera angles during playback of a DVD
VIDEO disc containing multiple camera angles.
DISC
SELECT TV DVD
TV DVD
STANDBY/ON
PLAY
MODE
1 2 3
5 6
8 9
0 +10 10
7
4
3D
PHONIC
TV/VIDEO
CANCEL
SUBTITLE ANGLE
TV1 TV2 TV3
TV4 TV5 TV6
TV7 TV8 TV9
TV -/-- TV0 MUTING
AUDIO
THEATER
POSITION
DIGEST
PREVIOUS
NEXT
CLEAR
STROBE
SLOW+
SLOW
–
TITLE
MENU
CHOICE
ENTER
RM-SXVM52U REMOTE CONTROL
CH+
SELECT
CH-
VOL
+
VOL
-
DISPLAY
ZOOM
RETURN
4 ¢
1 ¡
5
5
5
∞
7 8 3
SHIFT
KARAOKE
RESERVE
KEY CONTROL –
KEY CONTROL +
1 DISC SELECT button
2 SHIFT button
3 PLAY MODE button
4 3D PHONIC button
5 Numeric buttons
6 ANGLE button
7 SUBTITLE button
8 DIGEST button
9 4/PREVIOUS button
0 7/CLEAR button
- 1/SLOW– button
= TITLE - KARAOKE button
~ CURSOR ( 5 Up, ∞ Down)
/CH (+/–)/KEY CONTROL
(+/–) buttons
! CHOICE button
@ Infrared signal-emitting
window
# TV STANDBY/ON button
^ RETURN button
$ TV - DVD switch
% DVD STANDBY/ON button
& TV/VIDEO - CANCEL button
* THEATER POSITION button
( AUDIO button
) ZOOM button
_ ¢/NEXT button
+ 8/STROBE button
™ ¡/SLOW+ button
¡ 3/SELECT button
£ MENU - RESERVE button
¢ ENTER button
CURSOR ( 2 Left, 3 Right)
/VOL (+/–) buttons
§ DISPLAY button
