6
SENSOR
EXT. SPEAKER
OUT
AC OUT AC IN
LAN
RS-232C
RS-485 IN/OUT
DVI-D
(HDCP)
RGB IN
RGB OUT
VIDEO IN
AUDIO 1 IN
AUDIO 2 IN AUDIO 2 OUT
VIDEO OUT
AUDIO 1 OUT
Attaching the power cord holder
The provided power cord holder prevents accidental disconnection of the
AC power cord from the AC IN terminal.
• The power cord holder consists of two parts, a case and a cover.
1 2
3
CAUTION
• Use only the provided screws.
• Make sure the plug will not be pulled out after the cover is attached to
the case.
To detach the cover
To bind the cables (example):

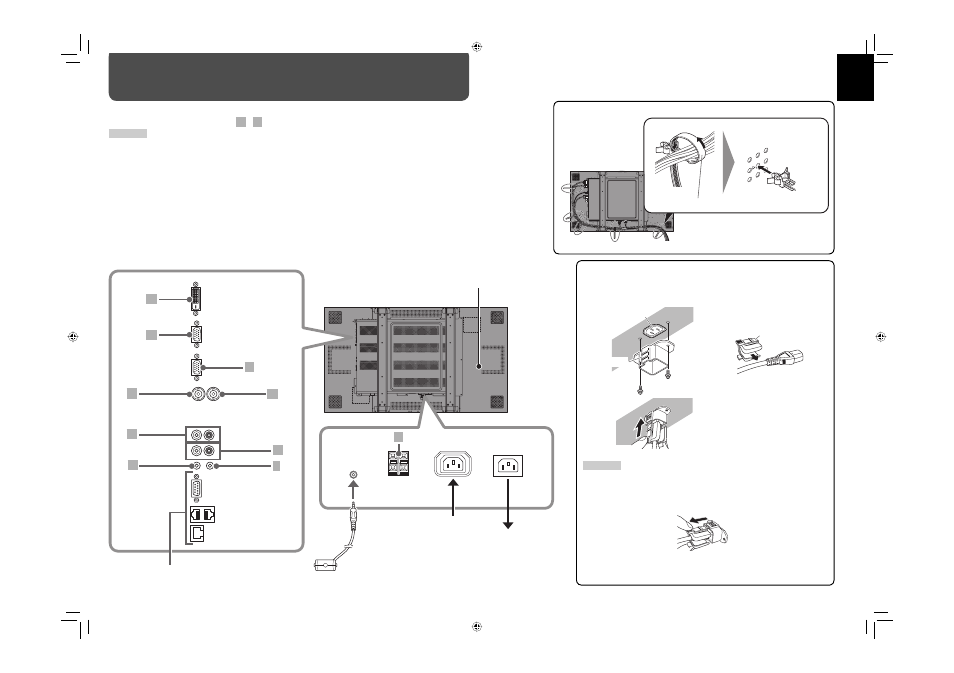

Connections
Select the most appropriate terminal referring to the illustration below and the tables on page 7 when
connecting equipment to the terminals A - J .
CAUTION
• Before making any connections, turn off all the equipment.
• DO NOT connect the power cord until all connections are completed.
• Refer also to the user manual of each piece of equipment.
• Do not short-circuit
9 and ( speaker cords to each other. (Refer also to the instructions supplied with the
speakers.)
External control equipment
For details, see page 20.
To wall outlet
A
B
C
D
G
E
F
I
An external unit can be installed here.
Consult your dealer for more information.
Cover
Power supply for an external unit
(Max. 2A). Consult your dealer
for more information.
H
J
Motion sensor (see page 18)
Push the tab to detach the
cramp.
Cord cramp (supplied)
Insert the end of the cramp
into the hole pointed with
3 .
AC IN terminal
Case
