29

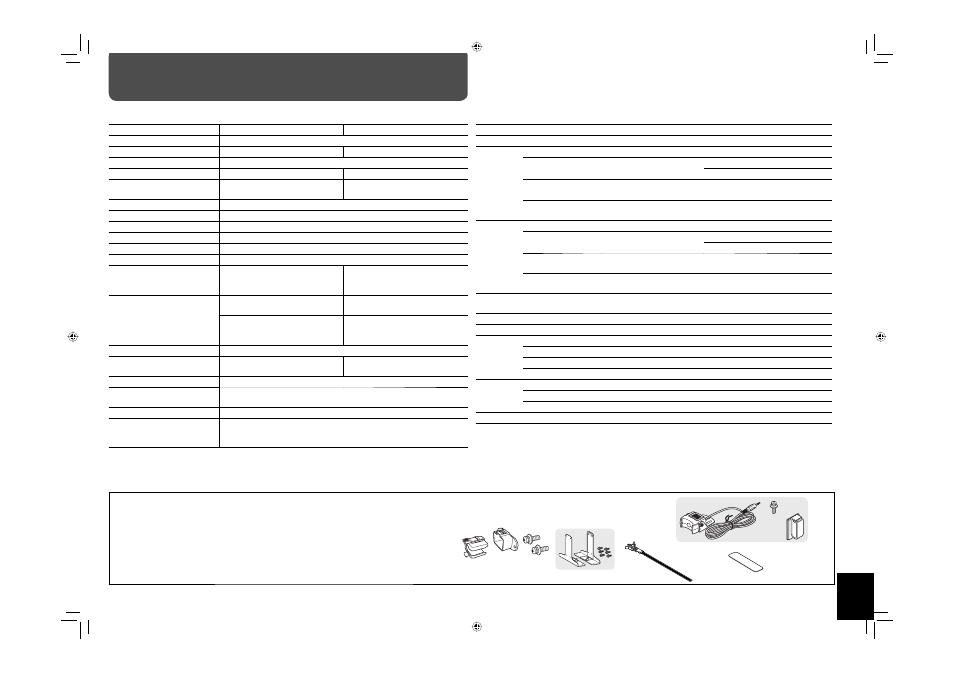

Specifications
General
Model name GM-F470S GM-F420S
Type LCD Monitor
Screen size Type 47 wide format Type 42 wide format
Aspect ratio 16:9 (Wide format)
LCD panel 47 inch wide, active matrix TFT 42 inch wide, active matrix TFT
Effective screen size
(W x H, Diagonally) 1 039 mm x 584 mm (40 7/8” x
22 15/16”), 1 192 mm (46 7/8”) 930 mm x 523 mm (36 9/16” x
20 9/16”), 1 067 mm (42”)
Number of pixels displayed 1 920 (H) x 1 080 (V)
Number of colors displayed 1.07 billion (1 024 colors for each of RGB)
Viewing angle (TYP.) 178° (Horizontally), 178° (Vertically)
Brightness (TYP.) 700 cd/m 2
Contrast ratio (TYP.) 1 000:1
Response time 9 msec
Weight 30 kg (66 lbs)
31.2 kg (68.7 lbs) (including the
stands) 25 kg (55 lbs)
26.2 kg (57.7 lbs) (including the
stands)
External dimensions
(W x H x D) 1 076 mm x 621 mm (42 3/8” x
24 1/2”), 152 mm (6”) 964 mm x 557 mm (38” x 22”),
152 mm (6”)
When the stand is attached:
1 091 mm x 626 mm (43” x
24 3/4”), 326 mm (12 7/8”) When the stand is attached:
979 mm x 562 mm (38 5/8” x
22 1/8”), 326 mm (12 7/8”)
Power requirements AC 120 V/AC 220 – 240 V, 50 Hz/60 Hz
Rated input current 4.9 A (AC 120 V)
3.6 A (AC 220 – 240 V) 4.3 A (AC 120 V)
3.3 A (AC 220 – 240 V)
Compatible signals See page 8.
Audio power output Internal: 1.7 W + 1.7 W (impedance 8 Ω)
External: 6 Ω – 8 Ω, 2.3 W + 2.3 W (at impedance 6 Ω)
Speaker Ellipse (70 mm (2 7/8”) x 40 mm (1 5/8”)) x 2, impedance 8 Ω
Operating conditions Temperature: 0°C – 40°C (32°F – 104°F)
Relative humidity: 20% – 80% (non-condensation)
(Slightly variable depending on ambient conditions for installation.)
Notice on transportation
This monitor is precision equipment and needs dedicated packing material for transportation.
Never use any packing material supplied from sources other than JVC or JVC-authorized dealers.
Input/output terminals
VIDEO IN Video input BNC terminal x 1 1 V (p–p), 75 Ω
VIDEO OUT Video output BNC terminal x 1 1 V (p–p), 75 Ω
RGB IN RGB input D-sub 3-row 15-pin x 1 (RGB is compatible with DDC2B.)
Video signal G: 1 V (p–p), 75 Ω (including sync)
B, R: 0.7 V (p–p), 75 Ω
Horizontal sync (HD) HD: 2.0 V (p–p) to 5 V (p–p),
(positive/negative polarity)
Vertical sync (VD) VD: 2.0 V (p–p) to 5 V (p–p),
(positive/negative polarity)
RGB OUT RGB input D-sub 3-row 15-pin x 1
Video signal G: 1 V (p–p), 75 Ω (including sync)
B, R: 0.7 V (p–p), 75 Ω
Horizontal sync (HD) HD: 5 V (p–p) (positive/negative
polarity)
Vertical sync (VD) VD: 5 V (p–p) (positive/negative
polarity)
DVI-D
(HDCP) DVI input (compatible
with HDCP) DVI-D terminal x 1 (Compatible with DDC2B)
AUDIO 1 IN Audio input Pin jack terminal x 2 (L/R) 500 mV (rms), high impedance
AUDIO 2 IN Audio input Stereo mini jack terminal x 1 500 mV (rms), high impedance
REMOTE RS-232C input D-sub 9-pin terminal x 1 (For RS-232C control)
RS-485 input RJ-45 pin terminal x 1 (For RS485, MAKE, and TRIGGER control)
RS-485 output RJ-45 pin terminal x 1 (For RS485 and IR OUT control)
LAN RJ-45 pin terminal x 1 (For LAN control)
AUDIO OUT AUDIO 1 OUT Pin jack terminal x 2 (L/R) Output impedance 600 Ω
AUDIO 2 OUT Stereo mini jack terminal x 1 Output impedance 600 Ω
EXT. SPEAKER OUT Speaker output terminal (L/R) Impedance 6 Ω to 8 Ω
AC OUTLET AC power output IEC320 type x 1 Rated output current: 2 A
Checking the accessories
The following accessories are included with the monitor. Check for them. If any item is missing, please contact the dealer where you have purchased the monitor.
• Remote control (RM-C1730)
• Batteries (AA/R6) x 2
• Power cord/Power cord holder
• Screws for power cord holder
• Motion sensor unit
Motion sensor x 1, Screw (M4 x 12 mm) x 1, cord cramp x 5 • Stand unit
Stand x 2, Screws (M4 x 12 mm) x 6
• Snapping ties x 5
• Covering sticker x 1
Screws for power
cord holder
Stand unit
Motion
sensor unit
Snapping ties Covering sticker
