Names of parts and controls
The illustrations of the center unit and the subwoofer used in this manual are of TH-A85 unless otherwise noted.

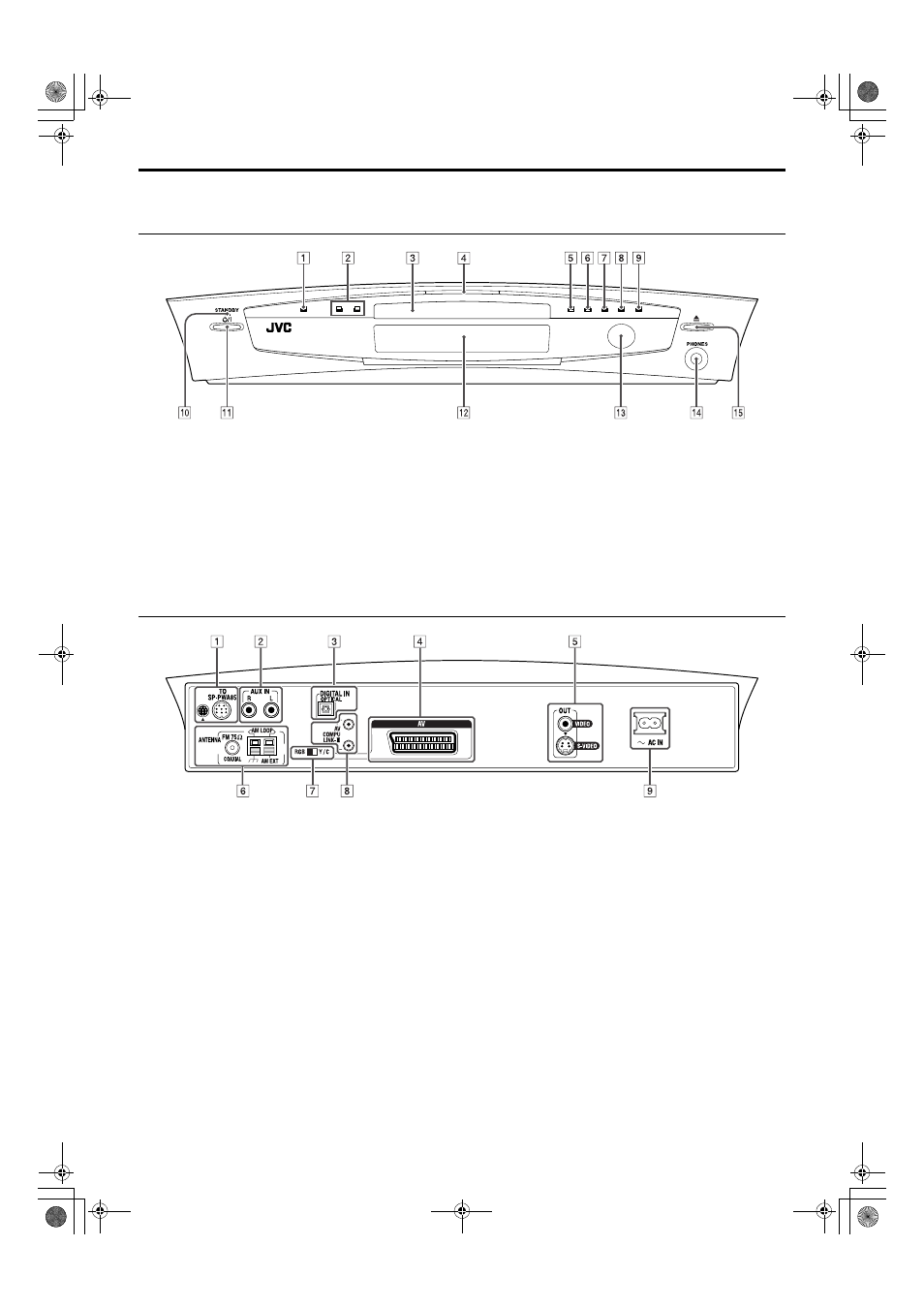

Front panel (center unit)
A Source button (SOURCE) A pg. 20
B Volume buttons (VOLUME +/–) A pg. 20
C Disc tray A pg. 23
D Illumination lamp A pg. 21
E Stop button ( 7) A pg. 23
F Play button ( 3) A pg. 23
G Pause button ( 8) A pg. 23
H Reverse skip button ( 4) A pg. 26
I Forward skip button ( ¢) A pg. 26
J Standby lamp (STANDBY) A pg. 19
K Standby-on button ( F) A pg. 19
L Display window A pg. 6, 24
M Remote sensor A pg. 16
N Headphones jack (PHONES) A pg. 20
O Open/close button ( 0) A pg. 23
Rear panel (center unit)
A System cord connector A pg. 10
B Audio input jacks (AUX IN) A pg. 14
C Digital input jack (DIGITAL IN) A pg. 14
D AV (SCART) connector (AV) A pg. 8
E Video output jacks (OUT VIDEO/S-VIDEO) A pg. 8
F Antenna terminals (ANTENNA) A pg. 9
G Video output signal selector (RGB-Y/C) A pg. 8
H AV COMPU LINK-III jacks (for future use)
I
Ó AC IN socket A pg. 15
