9
ENGLISH
SLOT
REMOTE
MAKE/ TRIGGER
Preparation

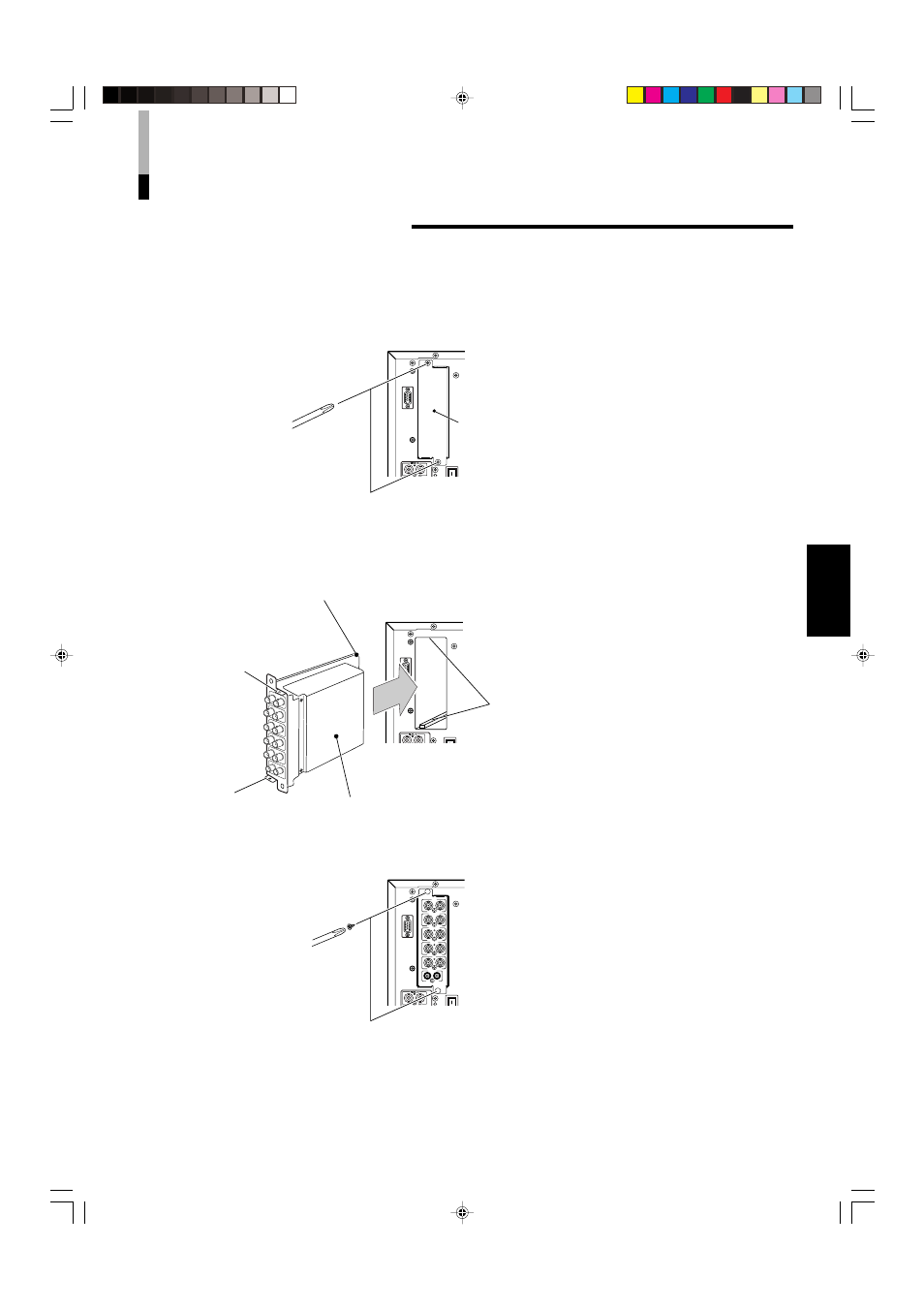

Installing the Input Card
1
Turn off the main power switch on the rear panel of the monitor and unplug the AC power
cord from the AC outlet.
2
Unscrew the screws and remove the slot cover from the input card slot on the rear panel of
the monitor.
3
Insert the input card’s circuit board (green-colored) into the slot, fitting the board to the
guide rails on the top and bottom of the slot.
Hold the tabs on the input card when inserting the input card.
4
Push in the input card so that its front panel touches the rear panel of the monitor.
5
Secure the Input Card by using the screws removed in step 2 .
NOTES:
• The input card or the monitor may be damaged if you do not turn off the main power of the monitor before installing the input card.
• Do not touch the terminals or the patterns on the circuit board of the input card.
• Attach the slot cover when the input card slot is not in use.
Slot cover
Fit the board to the guide rails.
Tab
Guide rails
Tab
Input card (This illustration is IF-C01COMG.)
SLOT
REMOTE
MAKE/ TRIGGER
SLOT
REMOTE
MAKE/ TRIGGER
NOTE:
When installing IF-C21SDG/IF-C51SDG, you need to set the
DIP switches on the input card correctly to use the functions
of the input card. Refer to the instruction manual supplied with
the input card and set the DIP switches beforehand.
