J4300 and J6300 Services Router PIM Installation Instructions
4.
Tighten the captive screws on each side of the PIM faceplate.
5.
Insert the appropriate cables into the cable connectors on the PIM.
6.
If necessary, arrange the cables to prevent them from dislodging or developing
stress points:
Secure the cable so that it is not supporting its own weight as it hangs
to the floor.
Place excess cable out of the way in a neatly coiled loop.
Use fasteners to maintain the shape of cable loops.
7.
Press and release the power button to power on the router. Verify that the
POWER ON
LED lights steadily after you press the power button.
8.
Verify that the PIM status LED lights steadily green to confirm that the PIM
is online.
You can also verify correct PIM functioning by issuing the
show chassis fpc
pic-status
command described in the JUNOS Protocols, Class of Service, and
System Basics Command Reference.

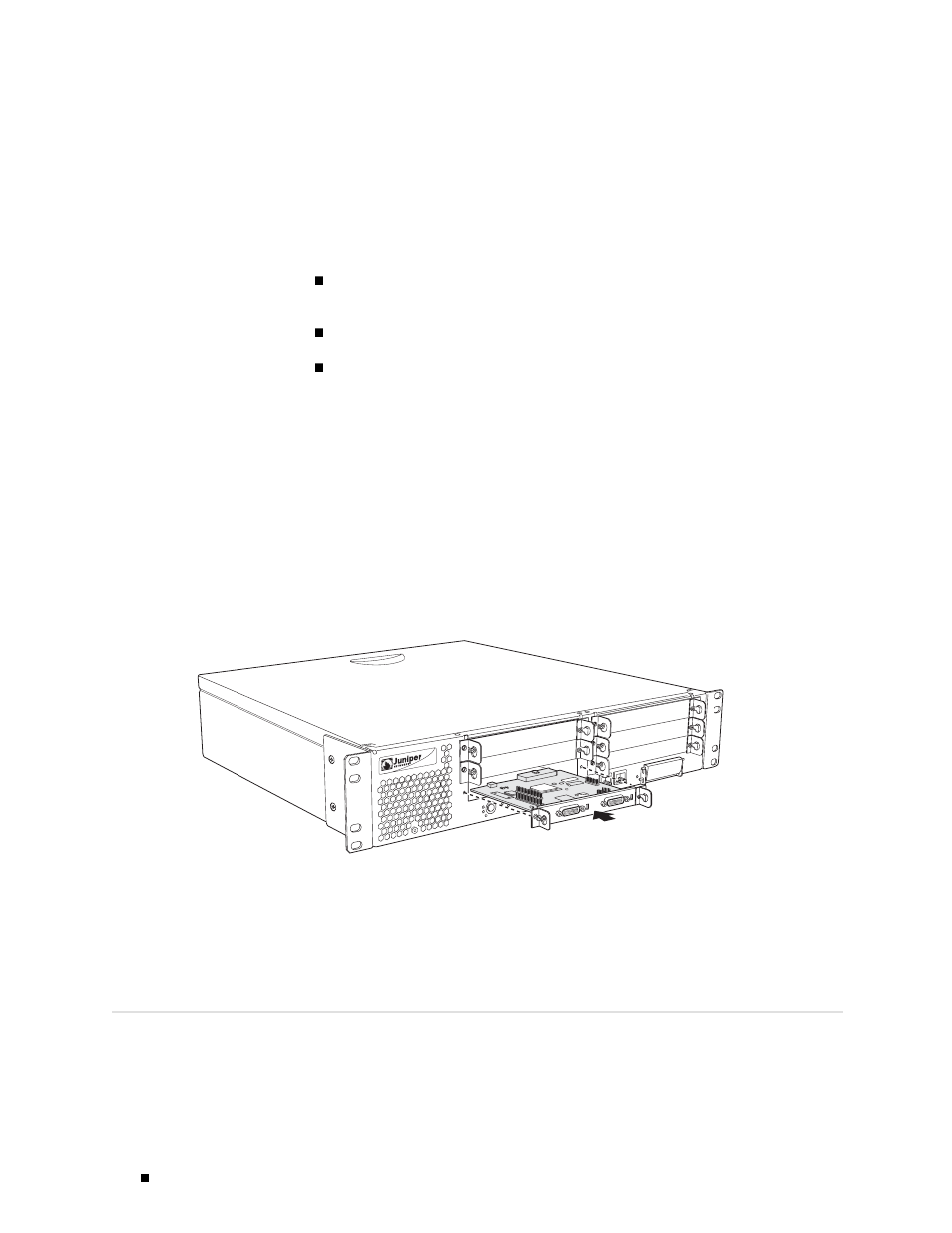

Figure 2: Installing a PIM
ALAR
M
S
LO
T
10
/1
00
E
T
H
E
R
N
E
T
POWE
R ON
CONF
IG
PORT
0
COMP
ACT F
LASH
USB
CONS
OLE
PORT
1
IN
USE
SLOT
1/0
SLOT
3/0
SLOT
5/0
J4300
g003540
EJECT
S
E
R
IA
L
PORT
0
STATU
S
PORT
1
STATU
S
