CV-M77
5 Pin Assignment
3
4
5
6
7
8
9
10
11 12
1
2

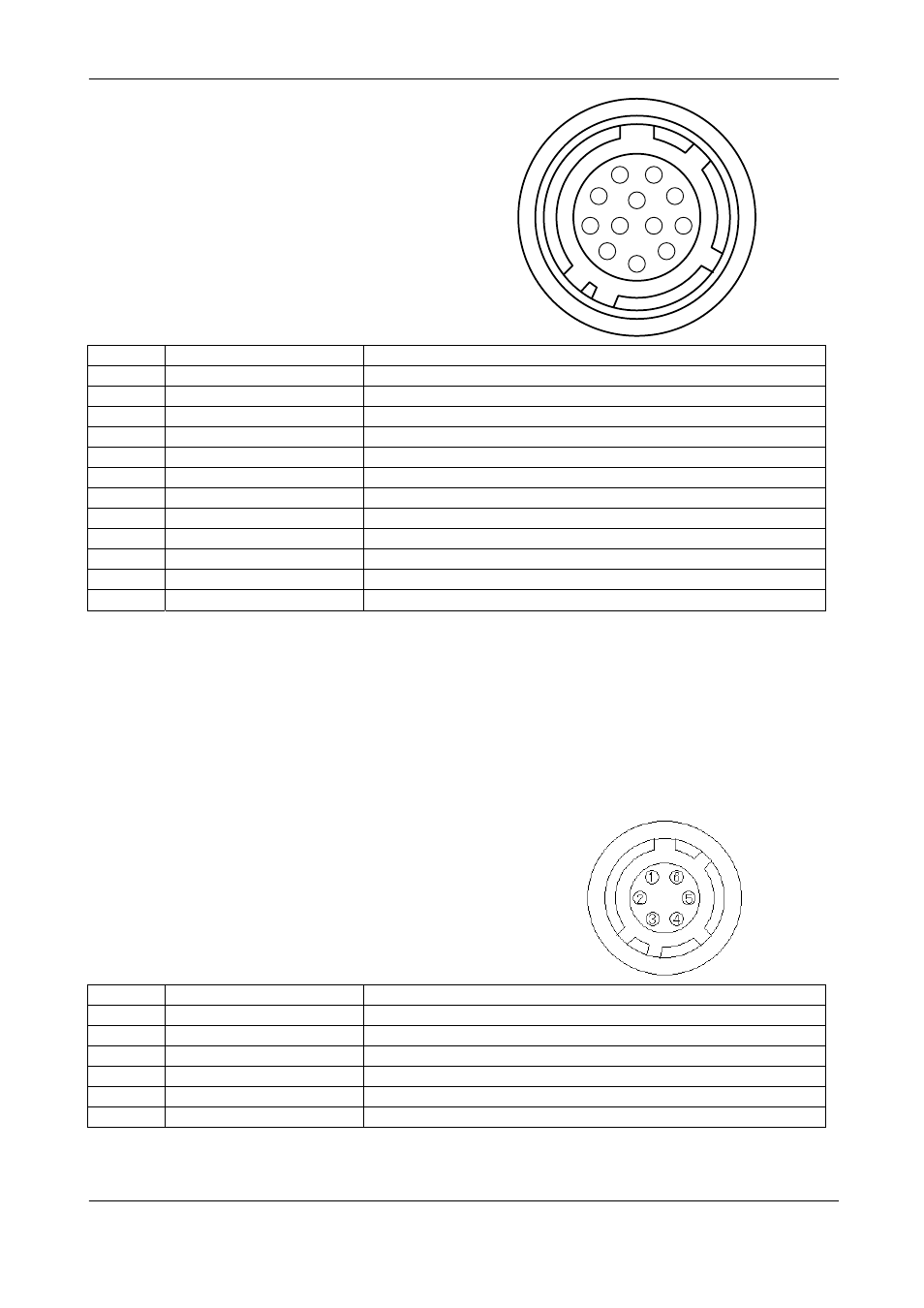

5.1 12-pin
Multi-connector (DC-IN/SYNC.)
Type: HR10A-10R-12PB-01 (Hirose male)
Seen from rear.
Pin No. 5.1.1.1 Signal 5.1.1.2 Remarks
1 5.1.1.3 GND
2 +12V DC input
3 GND
4 NC
5 GND
6* Ext.HD input SW-S301.1 “ON” for 75 Ω termination, SW-S303.1 “OFF” for HD output
7* Ext.VD input SW-S301.2 “ON” for 75 Ω termination, SW-S303.2 “OFF” for VD output
8 GND
9* NC PCLK out: JP305 “short”, JP306 “open”
10* WEN NC: JP309 and JP310 “open”. GND: JP308 “open” JP309 and JP310 “short”
11* Ext. trigger NC: JP401 and JP301* “open”. +12V DC JP401 “short” and JP301* “open”
12 GND
Notes:
*)
Signals on pin no. 6, 7,9,10 and 11 can be changed by jumper setting.
See section 8 “Switch Settings” and section 9 “Jumper Settings ” for more information.
*) In Edge Pre-select and Pulse Width Control mode do not input ext. VD signal.
*) When using the HD/VD, PCLK and WEN signals (input or output) from the 12-pin
connector do not use the same signals (input or output) from the 9 pin D-SUB connector.
*) JP301 is “short” by a capacitor (factory setting – see section 9 “Jumper Settings”.
*) Signals shown in bold italics are factory settings.
5.2 6-pin Multi-connector (RS 232C/TRIGGER)
Type: HR10A-7R-6PB (Hirose male)
Seen from rear.
Pin No. 5.2.1.1 Signal 5.2.1.2 Remarks
1 TXD (RS-232C)
2 RXD (RS-232C)
3 GND
4* NC GND: JP402 “short”
5 Ext.TRIG input
6* EEN output WEN out: JP312 “open” and JP311 “short”
Notes:
*)
Signals on pin no. 4 and 6 can be changed by jumper setting.
- 7 -
