Timing diagram for edge pre-select mode, Timing diagram for pulse width control mode, Timing diagram for frame-delay readout mode – JAI CV-M77 User Manual

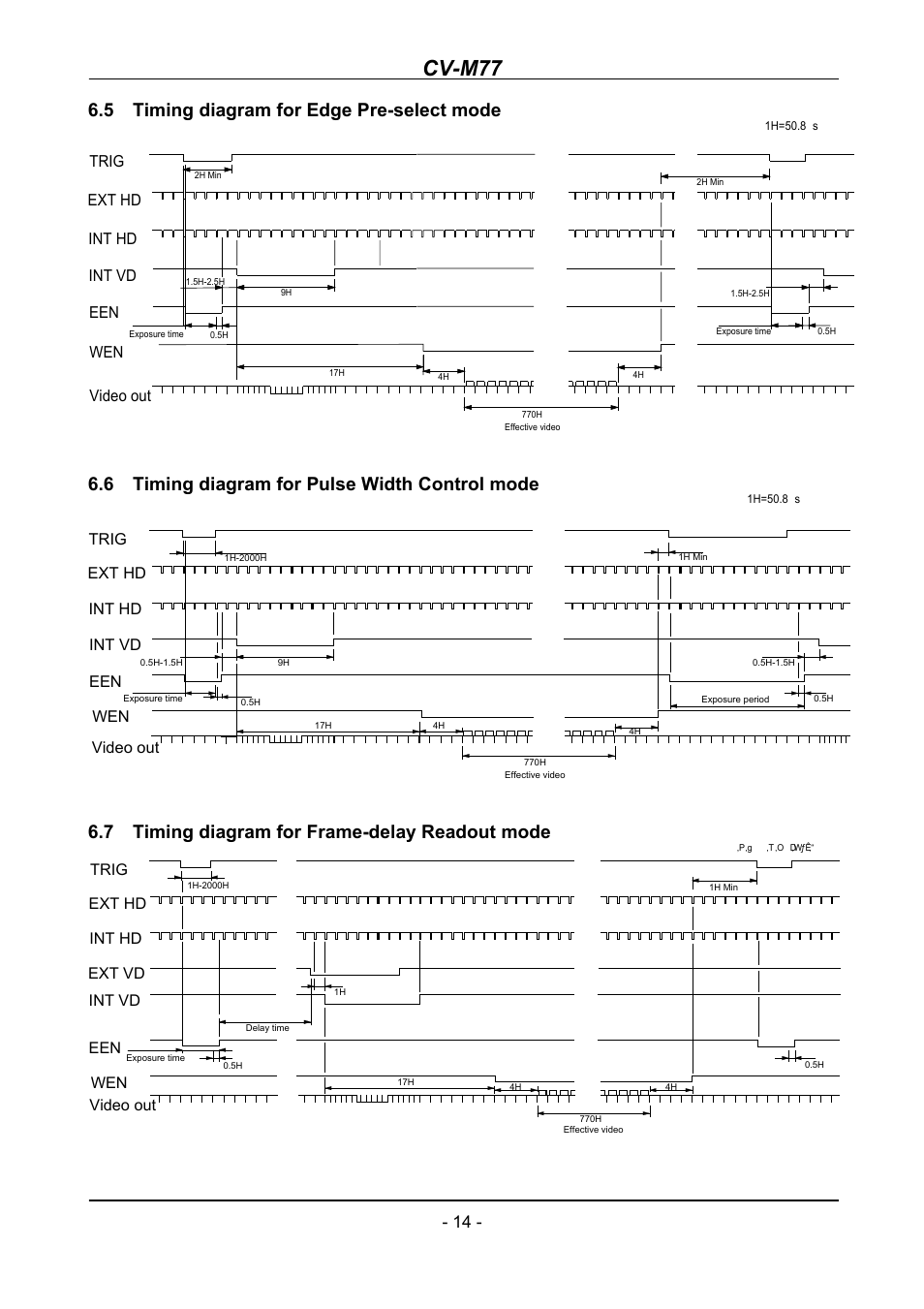

Page 14: Cv-m77, 5 timing diagram for edge pre-select mode, 6 timing diagram for pulse width control mode, 7 timing diagram for frame-delay readout mode

Timing diagram for edge pre-select mode, Timing diagram for pulse width control mode, Timing diagram for frame-delay readout mode | Cv-m77, 5 timing diagram for edge pre-select mode, 6 timing diagram for pulse width control mode, 7 timing diagram for frame-delay readout mode | JAI CV-M77 User Manual | Page 14 / 28 Timing diagram for edge pre-select mode, Timing diagram for pulse width control mode, Timing diagram for frame-delay readout mode | Cv-m77, 5 timing diagram for edge pre-select mode, 6 timing diagram for pulse width control mode, 7 timing diagram for frame-delay readout mode | JAI CV-M77 User Manual | Page 14 / 28
