NOTES:
● Before starting Blank Search, if the current
position is at a blank portion, the camcorder
searches in the reverse direction. If the current
position is at a recorded portion, the camcorder
searches in the forward direction.
● If the beginning or end of the tape is reached
during Blank Search, the camcorder stops
automatically.
● A blank portion which is shorter than 5 seconds of
tape may not be detected.
● The detected blank portion may be located
between recorded scenes. Before you start
recording, make sure there is no recorded scene
after the blank portion.
A Black to S-VIDEO IN (Connect when your TV/
VCR has S-VIDEO IN and A/V input
connectors. In this case, it is not necessary to
connect the yellow video cable.)
B Yellow to VIDEO IN (Connect when your TV/
VCR has only A/V input connectors.)
C Red to AUDIO R IN*
D White to AUDIO L IN*
* Not required for watching still images only.
NOTE:
The S-Video cable is optional. Be sure to use the
YTU94146A S-Video cable. Consult the JVC
Service Center for details on its availability.
Make sure to connect the end with a core filter
to the camcorder. The core filter reduces
interference.
1
Make sure all units are turned off.
2
Connect the camcorder to a TV or VCR as
shown in the illustration.
If using a VCR, go to step 3.
If not, go to step 4.
3
Connect the VCR output to the TV input,
referring to your VCR’s instruction manual.
4
Turn on the camcorder, the VCR and the TV.
5
Set the VCR to its AUX input mode, and set
the TV to its VIDEO mode.
6
Start playback on the camcorder. ( ੬ pg. 22)
To choose whether or not the following
displays appear on the connected TV
● Date/time
Set “DATE/TIME” to “AUTO”, “ON” or “OFF”.
(
੬ pg. 27, 32)
Or, press DISPLAY on the remote control to turn
on/off the date indication.
● Time code
Set “TIME CODE” to “ON” or “OFF”.
(
੬ pg. 27, 32)
● Indications other than date/time and time code
Set “ON SCREEN” to “OFF”, “LCD” or “LCD/TV”.
(
੬ pg. 27, 32)
NOTES:
● It is recommended to use the AC Adapter as
the power supply instead of the battery pack.
(
੬ pg. 15)
● To monitor the picture and sound from the
camcorder without inserting a tape, set the
camcorder’s Power Switch to “A” or “M”, then set
your TV to the appropriate input mode.
● Make sure you adjust the TV sound volume to its
minimum level to avoid a sudden burst of sound
when the camcorder is turned on.

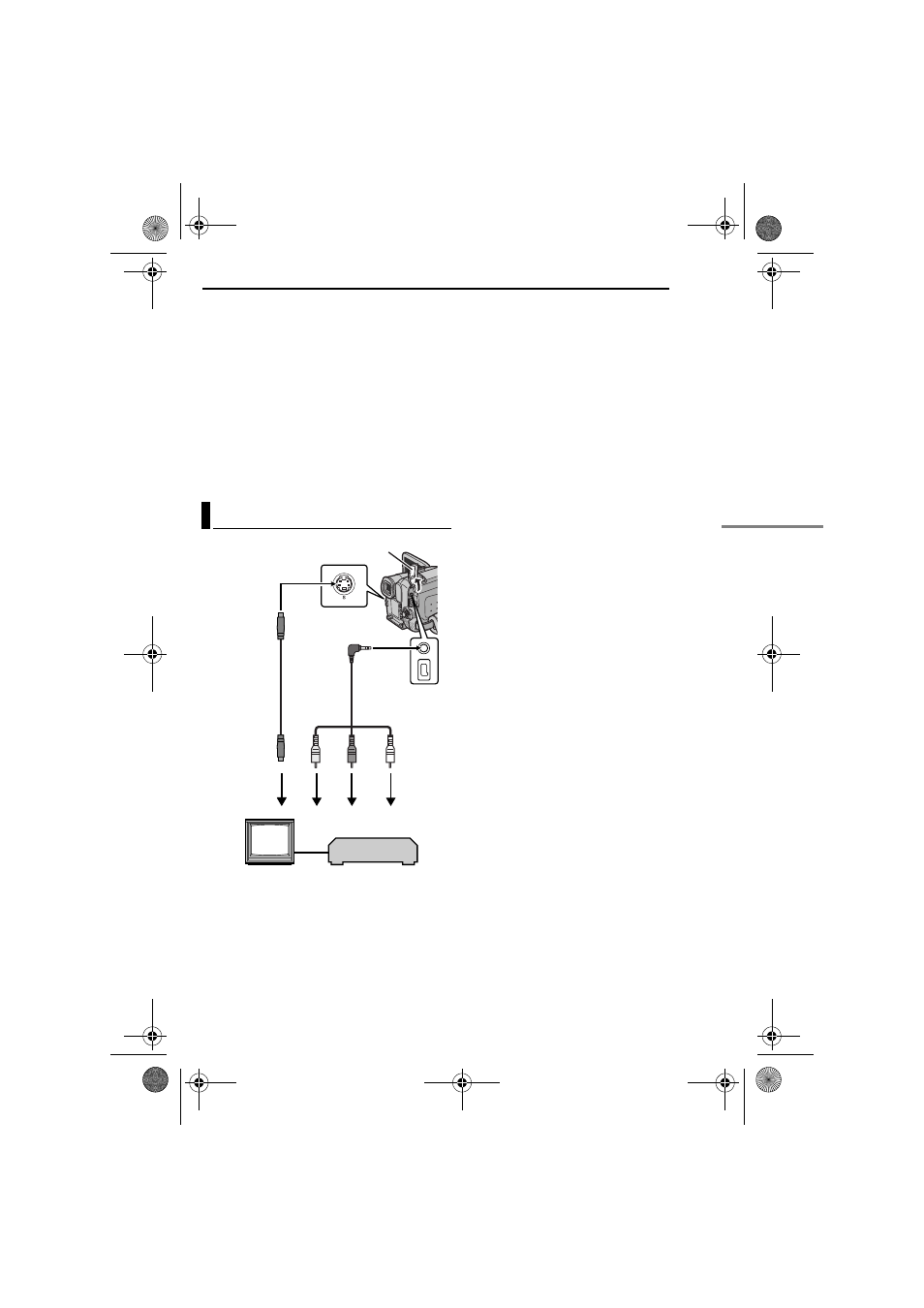

Connections To A TV Or VCR
2 4 1 3
TV
VCR
Open the cover.
To AV connector
AV cable
(provided)
To S connector
S cable
(optional)
