54
INDEX (cont.)

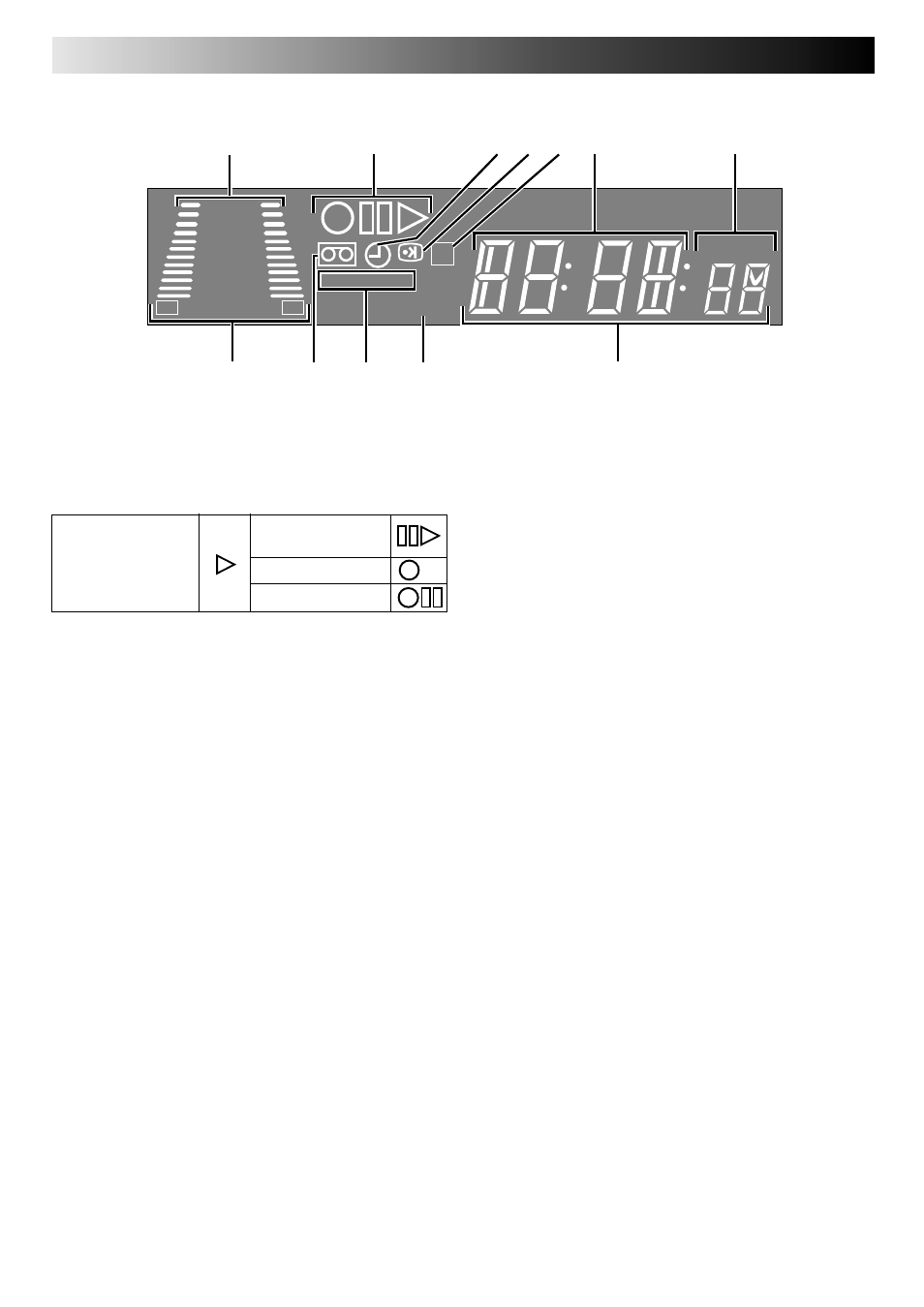

DISPLAY PANEL [J745EK]
1 B.E.S.T. Picture System Display lights from
bottom to top while B.E.S.T. is active.
੬
pg. 20
Audio Level Indicator displays audio input and
output levels.
2 Symbolic Mode Indicators
3 "Timer" Indicator lights when the TIMER button
has been pressed to engage Timer mode.
੬
pg. 23, 25
4 PDC Indicator lights when PDC has been
engaged for timer recording.
੬
pg. 22, 24
5 Counter Memory Indicator lights when the
video recorder is in the Counter Memory mode.
੬
pg. 15
6 Channel Display shows preset position where
the station currently being received is stored.
(Ex.) Preset position 1 will be displayed as "CH 1".
Mode shows external input mode selected.
Clock Display shows current time.
੬
pg. 9, 46
STILL:
SLOW:
RECORD:
RECORD PAUSE:
PLAY:
FF/REW VARIABLE
SHUTTLE SEARCH:
+8
4
0
6
10
–20dB
NORM L R
M
SP LP EP
REMAIN
REVIEW
3 4 5 1
8 @ 9 0 !
6 7 2
7 Instant REVIEW Indicator blinks after timer-
recording and shows how many programmes
have been timer-recorded.
੬
pg. 15
8 Audio Mode Indicator displays audio output
mode currently selected.
੬
pg. 16
9 "Cassette Loaded" Mark lights once a cassette is
inserted; remains lit until cassette ejected or
power turned off.
0 Tape Speed Indicators display mode of record-
ing; light during Record or Play mode.
੬
pg. 18
! Tape Remaining Time Indicator displays time
remaining on tape when certain buttons are
pressed.
੬
pg. 19
@ Counter shows time elapsed since playback or
recording began.
REMAIN displays time remaining from current
tape position to end of tape.
Counter, Preset Position*, Clock and REMAIN
Display appear alternately when DISPLAY is
pressed.
* Preset Position is not displayed during playback.
