30
q
You can use a camcorder as the source player and your video
recorder as the recorder.

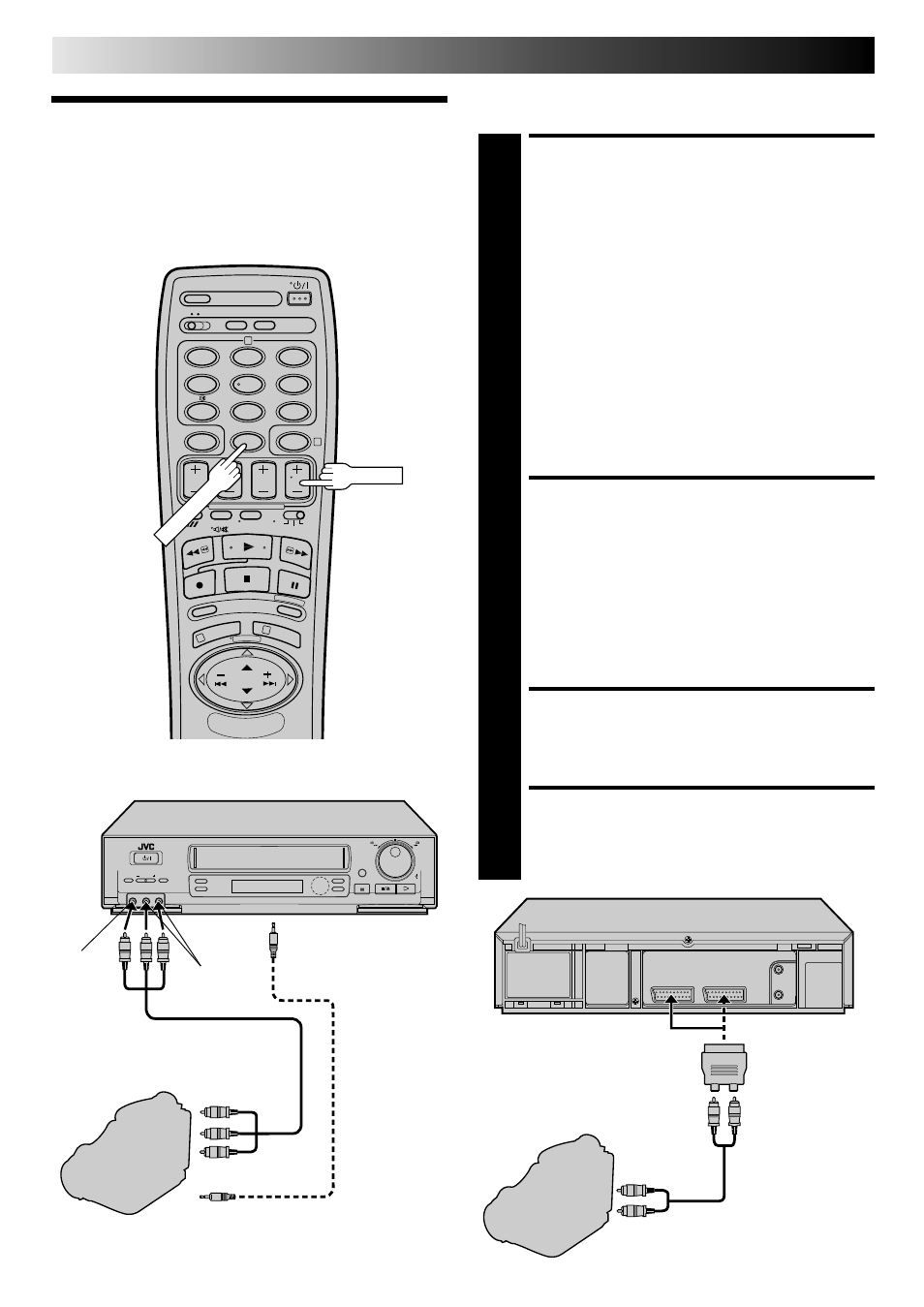

Edit From A
Camcorder
1 2
4 5
3
6
8
0
7 9
2
4
1
3
Mini-Plug Cable
(not provided)
(JVC camcorder
only)
VIDEO OUT
EDIT
Camcorder
VIDEO
input
MAKE CONNECTIONS
1
For HR-J745EK owners...
Connect the camcorder’s AUDIO/VIDEO OUT
connectors to the recorder’s front panel AUDIO/VIDEO
input connectors.
● When using a monaural camcorder, connect its
AUDIO OUT connector to the AUDIO L input
connector on your recorder.
● When a Master Edit Control-equipped JVC camcorder
is used, the camcorder is capable of controlling the
recorder. Refer to the camcorder’s instruction manual
for operating procedure.
For HR-J249EK owners...
Connect the camcorder's AUDIO/VIDEO OUT
connectors to the recorder's rear panel AV2 IN or AV1
IN/OUT connectors via the optional cable adapter.
● When using a Hi-Fi camcorder, connect its AUDIO
OUT L connector to the recorder's rear panel AV2 IN or
AV1 IN/OUT connectors via the optional cable adapter.
SET RECORDER’S INPUT
MODE
2
For HR-J745EK owners...
Press NUMBER key “0” and/or TV PROG. so that “F-
AU” appears in place of a preset position number.
For HR-J249EK owners...
Press the NUMBER key "0" and/or TV PROG. to select
the appropriate input mode depending on the connec-
tor being used; "AU-1" for the AV1 IN/OUT connector,
or "AU-2" for the AV2 IN connector.
START CAMCORDER
3
Engage its Play mode.
START RECORDER
4
Engage its Record mode.
TV PROG.
Recorder HR-J745EK
To rear panel PAUSE
connector
AUDIO OUT
Audio/Video Cable
(not provided)
Player
AUDIO
input
Camcorder
Cable adapter
(not provided)
Recorder
Player
HR-J249EK
NUMBER "0"
Audio/Video
Cable (not
provided)
EDITING (cont.)
