28
EDITING
Edit To Or
From Another
Video
Recorder
You can use your video recorder as the source player or the
recording deck.
MAKE CONNECTIONS
1
Connect the player’s 21-pin SCART connector to the
recorder’s 21-pin SCART connector as illustrated on
page 29.
When Using Your Video Recorder As The Source
Player . . .
. . . connect its AV1 IN/OUT connector to the recording
deck.
When Using Your Video Recorder As The Recording
Deck . . .
. . . . connect its AV2 IN or AV1 IN/OUT connector to the
source player.
SET RECORDING DECK’S
INPUT MODE
2

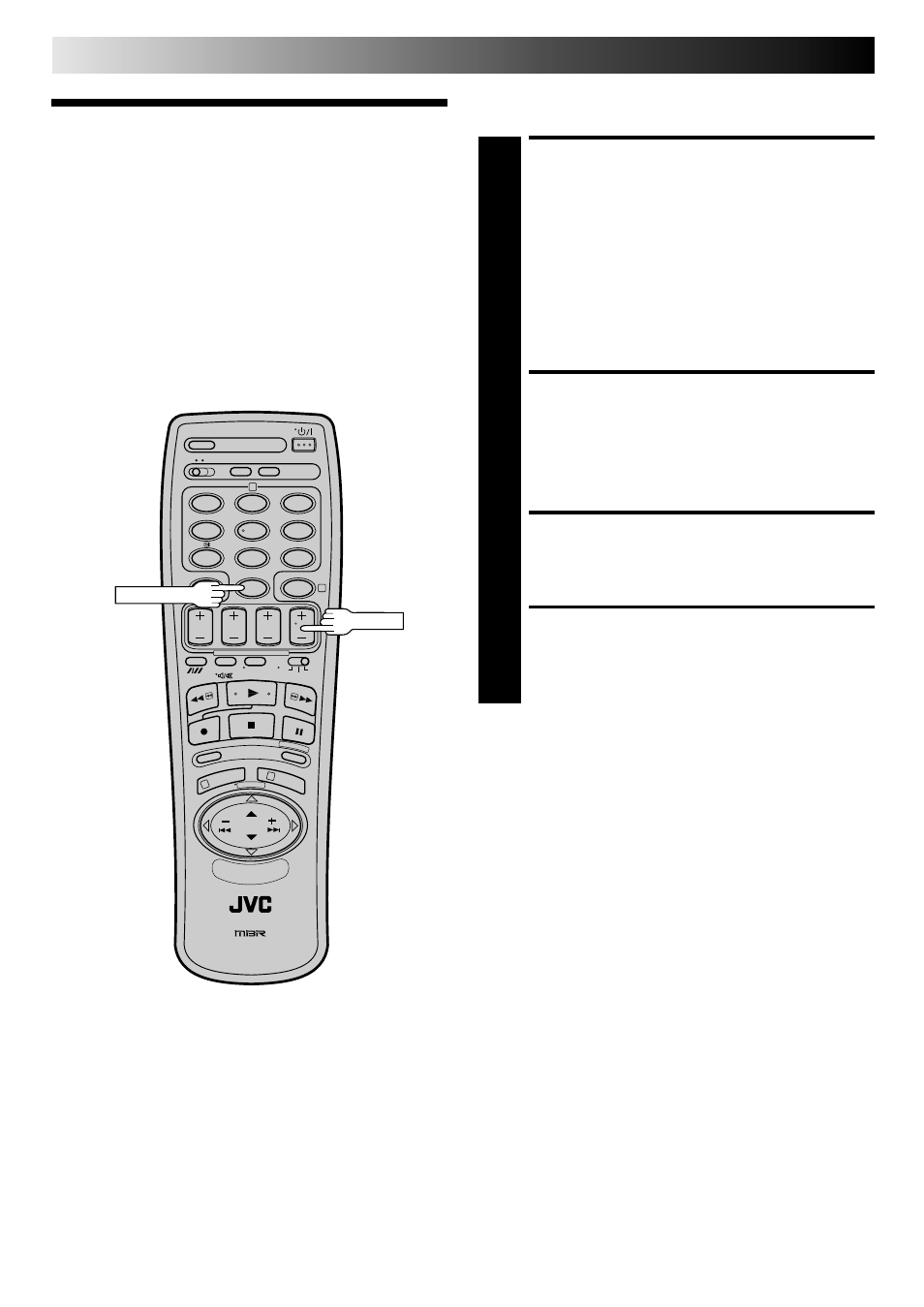

Set to AUX. With this video recorder, press NUMBER
key "0" and/or TV PROG. to select depending on the
connector being used — “AU-1” for the AV1 IN/OUT
connector, or “AU-2” for the AV2 IN connector.
START SOURCE PLAYER
3
Engage its Play mode.
START RECORDING DECK
4
Engage its Record mode.
NOTE:
All necessary cables can be obtained from your dealer.
1 2
4 5
3
6
8
0
7 9
2
4
1
3
NUMBER "0"
TV PROG.
