53

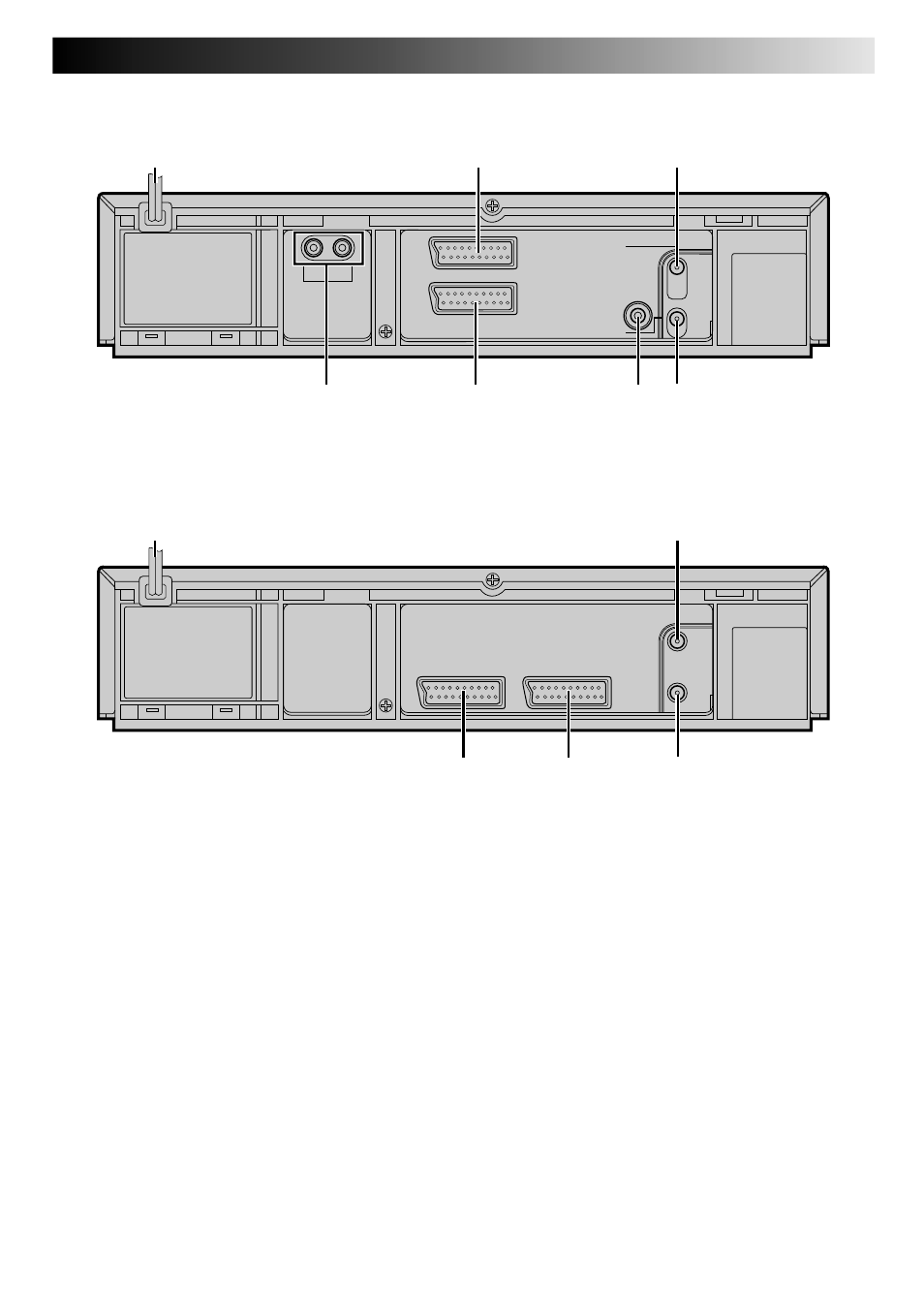

REAR VIEW [J745EK]
5 RF OUT Connector enables connection to
aerial terminal of TV receiver.
੬
pg. 4
6 Remote PAUSE Connector enables connection
to second recorder equipped with R.A. Edit
connector, or to JVC camcorder equipped with
Master Edit Control, for easy editing.
੬
pg. 30
(HR-J745EK only)
7 AUDIO OUT (L/R) Connectors enable
connection of audio cassette recorder, TV or
second video recorder for dubbing.
੬
pg. 31
(HR-J745EK only)
1 Mains Power Cord supplies power to recorder.
੬
pg. 4
2 ANT. IN Connector enables connection of aerial.
੬
pg. 4
3 AV2 IN Connector enables connection of
satellite receiver or second recorder; input
recordable when "AU 2" selected.
੬
pg. 32, 28
4 AV1 IN/OUT Connector enables AV connec-
tion to TV or second recorder; input recordable
when "AU-1" selected.
੬
pg. 4, 28
REAR VIEW [J249EK]
AV2 IN AV1 IN/OUT
ANT. IN
RF OUT
2
3 4 5
1
AV1 IN / OUT
AV2 IN
RF OUT
ANT. IN
R L
AUDIO OUT
PAUSE
2 4
3 7 6 5
1
