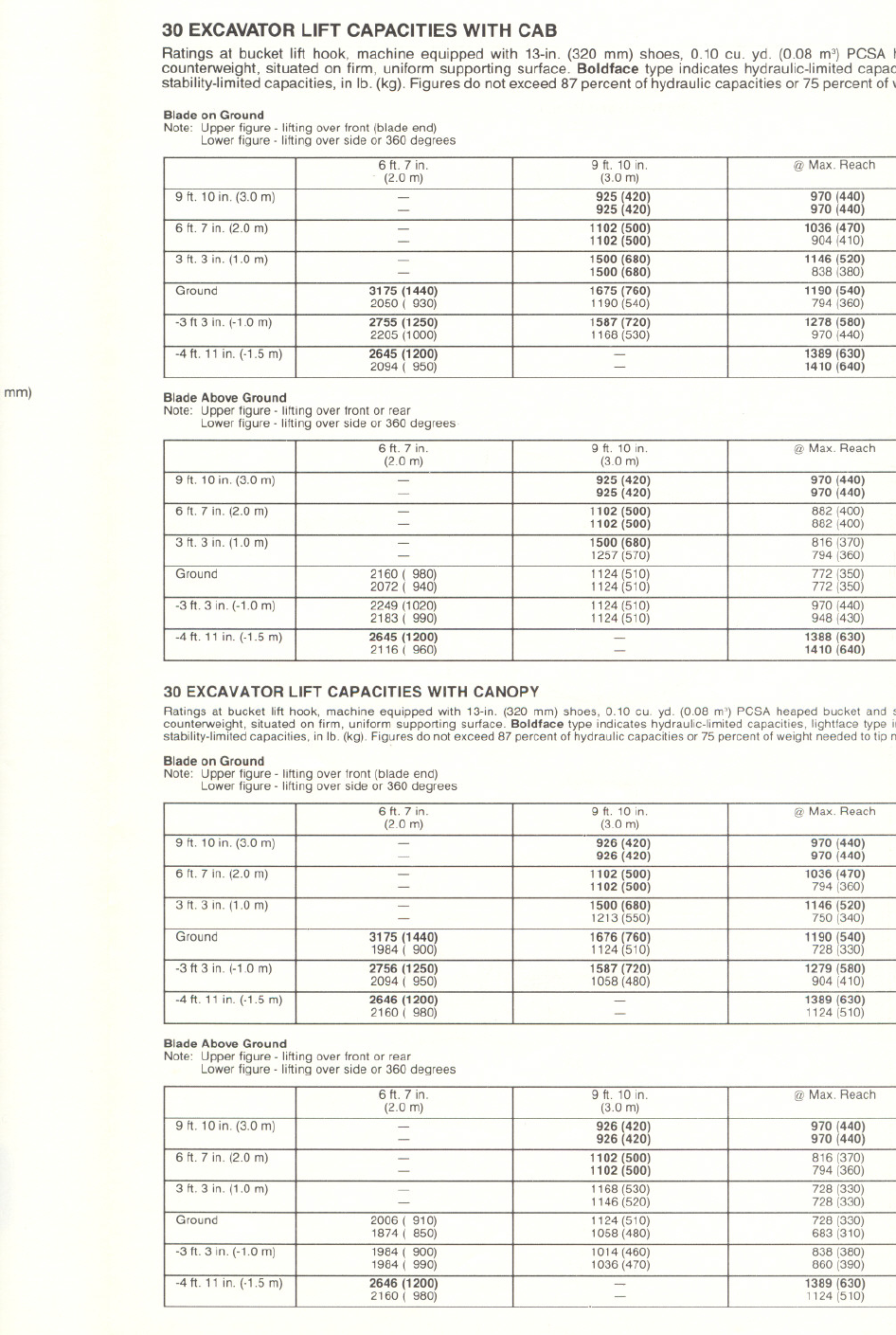

30 EXCAVATORLIFT CAPACITIES WITH CAB
Ratings at bucket lift hook, machine equipped with 13-in. (320 mm) shoes, 0.10 cu. yd. (0.08 m3) PCSA t
counterweight, situated on firm, uniform supporting surface. Boldface type indicates hydraulic-limited capac
stability-limited capacities, in lb. (kg). Figures do not exceed 87 percent of hydraulic capacities or 75 percent of ~
Blade on Ground
Note: Upper figure - lifting over front (blade end)
Lower figure - lifting over side or 360 degrees
mm)
Blade Above Ground
Note: Upper figure - lifting over front or rear
Lower figure - lifting over side or 360 degrees
30 EXCAVATOR LIFT CAPACITIES WITH CANOPY
Ratings at bucket lift hook, machine equipped with 13-in. (320 mm) shoes, 0.10 cu. yd. (0.08 m') PCSA heaped bucket and,
counterweight, situated on firm, uniform supporting surface. Boldface type indicates hydraulic-limited capacities, lightface type il
stability-limited capacities, in lb. (kg). Figures do not exceed 87 percent of hydraulic capacities or 75 percent of weight needed to tip n
Blade on Ground
Note: Upper figure - lifting over front (blade end)
Lower figure - lifting over side or 360 degrees
Blade Above Ground
Note: Upper figure
- lifting over front or rear
Lower figure - lifting over side or 360 degrees
6 ft. 7 in. 9 ft. 10 in. @ Max. Reach
. (2.0 m) (3.0 m)
9 ft. 10 in. (3.0 m)
-
925 (420) 970 (440)
-
925 (420) 970 (440)
6 ft. 7 in. (2.0 m)
-
1102 (500) 1036 (470)
-
1102(500) 904(410)
3 ft. 3 in. (1.0 m)
-
1500 (680) 1146 (520)
-
1500 (680) 838 (380)
Ground 3175 (1440) 1675 (760) 1190 (540)
2050 ( 930) 1190 (540) 794 (360)
-3 ft 3 in. (-1.0 m) 2755 (1250) 1587 (720) 1278 (580)
2205 (1000) 1168 (530) 970 (440)
-4ft. 11 in. (-1.5 m) 2645 (1200)
-
1389 (630)
2094 (950)
-
1410 (640)
6 ft. 7 in. 9 ft. 10 in @ Max. Reach
(2.0 m) (3.0 m)
9ft. 10in. (3.0 m)
-
925 (420) 970 (440)
-
925 (420) 970 (440)
6 ft. 7 in. (2.0 m)
-
1102 (500) 882 (400)
-
1102(500) 882 (400)
3 ft. 3 in. (1.0 m)
-
1500 (680) 816 (370)
-
1257 (570) 794 (360)
Ground 2160 ( 980) 1124 (510) 772 (350)
2072 ( 940) 1124 (510) 772 (350)
-3 ft. 3 in. (-1.0 m) 2249 (1020) 1124 (510) 970 (440)
2183( 990) 1124 (510) 948 (430)
-4ft. 11 in. (-1.5 m) 2645 (1200)
-
1388 (630)
2116 (960)
-
1410 (640)
6 ft. 7 in. 9 ft. 10 in. @ Max. Reach
(2.0 m) (3.0 m)
9ft.10in.(3.0m)
-
926 (420) 970 (440)
-
926 (420) 970 (440)
6 ft. 7 in. (2.0 m)
-
1102(500) 1036 (470)
-
1102(500) 794 (360)
3 ft. 3 in. (1.0 m)
-
1500 (680) 1146(520)
-
1213 (550) 750 (340)
Ground 3175 (1440) 1676 (760) 1190(540)
1984 ( 900) 1124 (510) 728 (330)
-3 ft 3 in. (-1.0 m) 2756 (1250) 1587 (720) 1279 (580)
2094 ( 950) 1058 (480) 904 (410)
-4 ft. 11 in. (-1.5 m) 2646 (1200)
-
1389 (630)
2160 (980)
-
1124 (510)
6 ft. 7 in. 9 ft. 10 in. @ Max. Reach
(2.0 m) (3.0 m)
9ft.10in.(3.0m)
-
926 (420) 970 (440)
-
926 (420) 970 (440)
6 ft. 7 in. (2.0 m)
-
1102(500) 816 (370)
-
1102 (500) 794 (360)
3 ft. 3 in. (1.0 m)
-
1168 (530) 728 (330)
-
1146 (520) 728 (330)
Ground 2006 ( 910) 1124 (510) 728 (330)
1874 ( 850) 1058 (480) 683 (310)
-3 ft. 3 in. (-1.0 m) 1984 ( 900) 1014 (460) 838 (380)
1984 ( 990) 1036 (470) 860 (390)
-4 ft. 11 in. (-1.5 m) 2646 (1200)
-
1389 (630)
2160 (980)
-
1124 (510)
