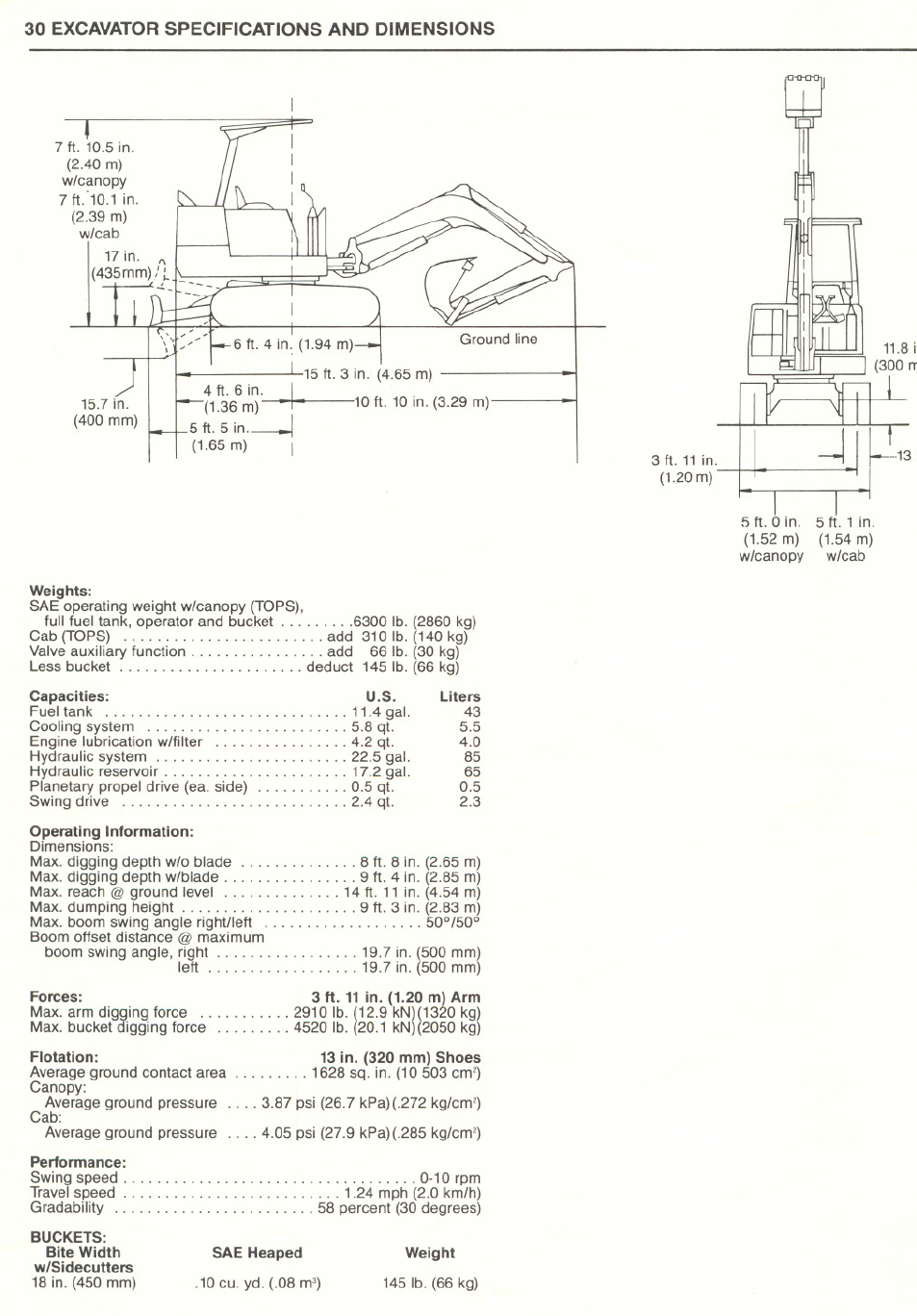

30 EXCAVATORSPECIFICATIONS AND DIMENSIONS
7 ft. 10.5 in.
(2.40 m)
w/canopy
7 ft.'10.1 in.
(2.39 m)
w/cab
I
17in.
"
(435mm)/ ~
-!.X'--:-
15 ft. 3 in. (4.65 m)
4 ft. 6 in~
(1.36m) 10ft.10in.(3.29m)
5 ft. 5 in.~
(1.65 m) I
Weights:
SAE operating weight w/canopy (TOPS),
full fuel tank, operator and bucket. . . . . . . . .6300 lb. (2860 kg)
Cab (TOPS) add 3101b. (140 kg)
Valve auxiliary function. . . . . . . . . . . . . . . . add 66 lb. (30 kg)
Less bucket deduct 145 lb. (66 kg)
Capacities: U.S.
Fueltank 11.4gal.
Cooling system 5.8qt.
Engine lubrication w/filter 4.2 qt.
Hydraulicsystem 22.5gal.
Hydraulicreservoir 17.2gal.
Planetary propel drive (ea. side) 0.5 qt.
Swing drive 2.4qt.
Liters
43
5.5
4.0
85
65
0.5
2.3
Operating Information:
Dimensions:
Max. digging depth w/o blade.
. . . . . . . . . . . . . 8 ft. 8 in. (2.65 m)
Max. digging depth w/blade . . . . . . . . . . . . . . . . 9 ft. 4 in. (2.85 m)
Max. reach @ ground level.
. . . . . . . . . . . . . 14 ft. 11 in. (4.54 m)
Max. dumping height 9ft.3in.(2.83m)
Max. boom swing angle right/left. . . . . . . . . . . . . . . . . . . 50°/50°
Boom offset distance @ maximum
boom swing angle, right 19.7in.(500mm)
left 19.7in.(500mm)
Forces: 3 ft. 11 in. (1.20 m) Arm
Max. arm digging force. . . . . . . . . . . 2910 lb. (12.9 kN)(1320 kg)
Max. bucket digging force.. . . . .. . . 4520 lb. (20.1 kN)(2050 kg)
Flotation: 13 in. (320 mm) Shoes
Average ground contact area. . . . . . . . . 1628 sq. in. (10 503 cm2)
Canopy:
Average ground pressure. . . . 3.87 psi (26.7 kPa)(.272 kg/cm2)
Cab:
Average ground pressure. . . . 4.05 psi (27.9 kPa)(.285 kg/cm2)
Performance:
Swingspeed
0-10rpm
Travel speed 1.24mph(2.0km/h)
Gradability 58percent(30degrees)
BUCKETS:
Bite Width
w/Sidecutters
18 in. (450 mm)
SAE Heaped
.10 cu. yd. (.08 m')
Weight
145 lb. (66 kg)
3ft. 11 in.
(1.20 m) .
5 ft. 0 in. 5 fl. 1 in.
(1.52 m) (1.54 m)
w/canopy w/cab
