Introduction (continued)
Camera
A Mounting hole (elliptical) x 4
Use these when mounting the camera to the
electrical box. (
A pg. 22)
NOTE:
When installing the camera onto the electric
box, install it using the supplied adaptor ring.
B Mounting hole (round) x 4
Use these when mounting the camera to the
ceiling or wall. (
A pg. 18, 20)
C Outer Case
Use this in the following cases:
● When mounting the camera directly to the
ceiling or on the wall. ( A pg. 20)
● When mounting the camera to the
electrical box. ( A pg. 22)
D Dome Cover
The dome cover is fragile. Take care when
handling it.
E Wiring Hole
Break and use this when drawing the cable
from the camera unit without drilling a hole in
the ceiling. (
A pg. 22)
F Input Power cable
DC 12 V Input: Red (+12 V), Black (GND)
AC 24 V Input: Non-polar. (
A pg. 15)
G Alarm signal cable (TK-C215V12 only)
Yellow (ALARM IN), Gray (ALARM GND).
(
A pg. 15)
H Protection Cover
Upon connecting the coaxial cable, protect it
by insulating the metal part of the BNC
connector from the ceiling structure.
I Video signal output connector (BNC)
(
A pg. 14)

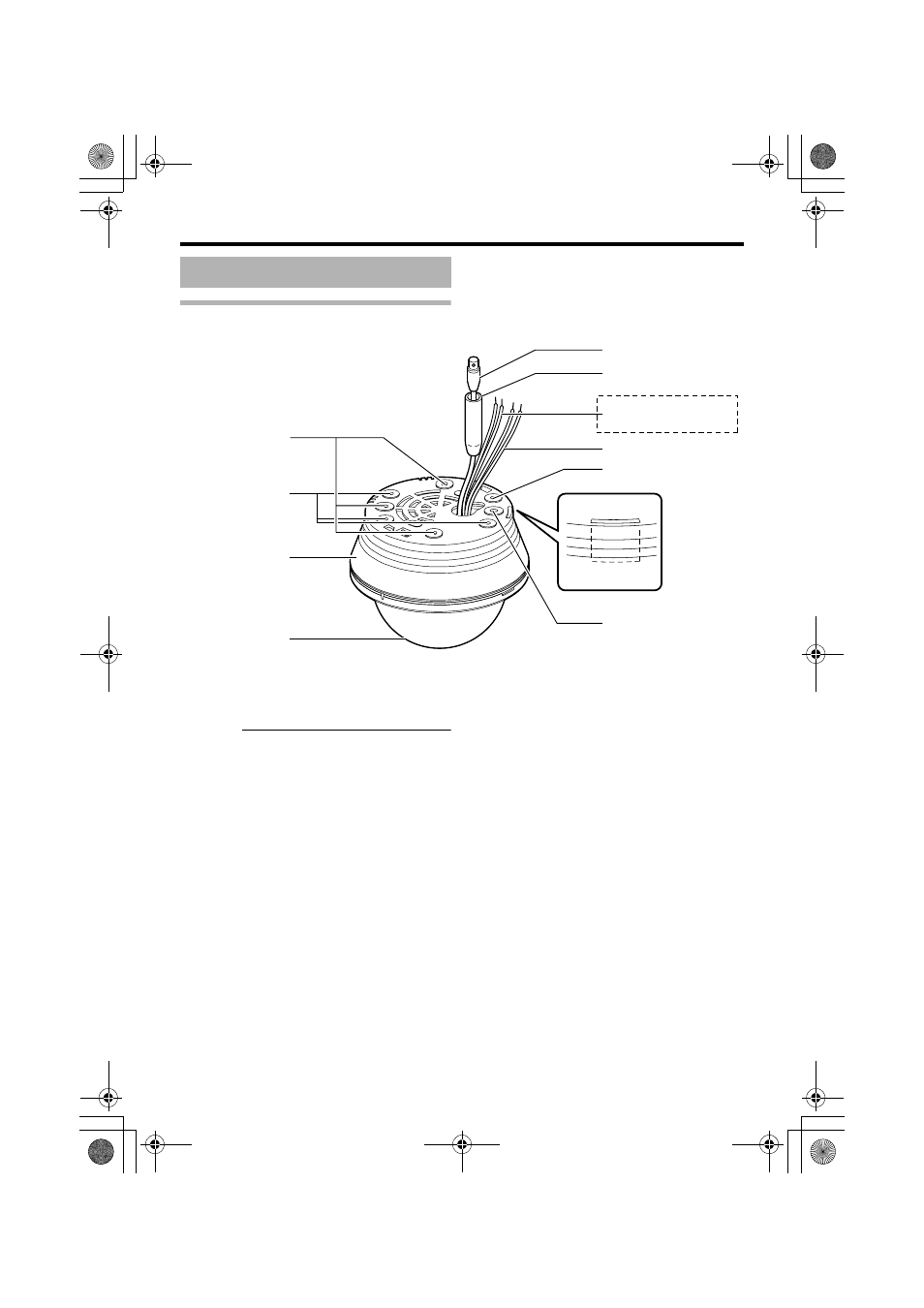

Name of Parts
B
D
C
A
I
H
G
F
A
E
B
TK-C215V12 only
