21

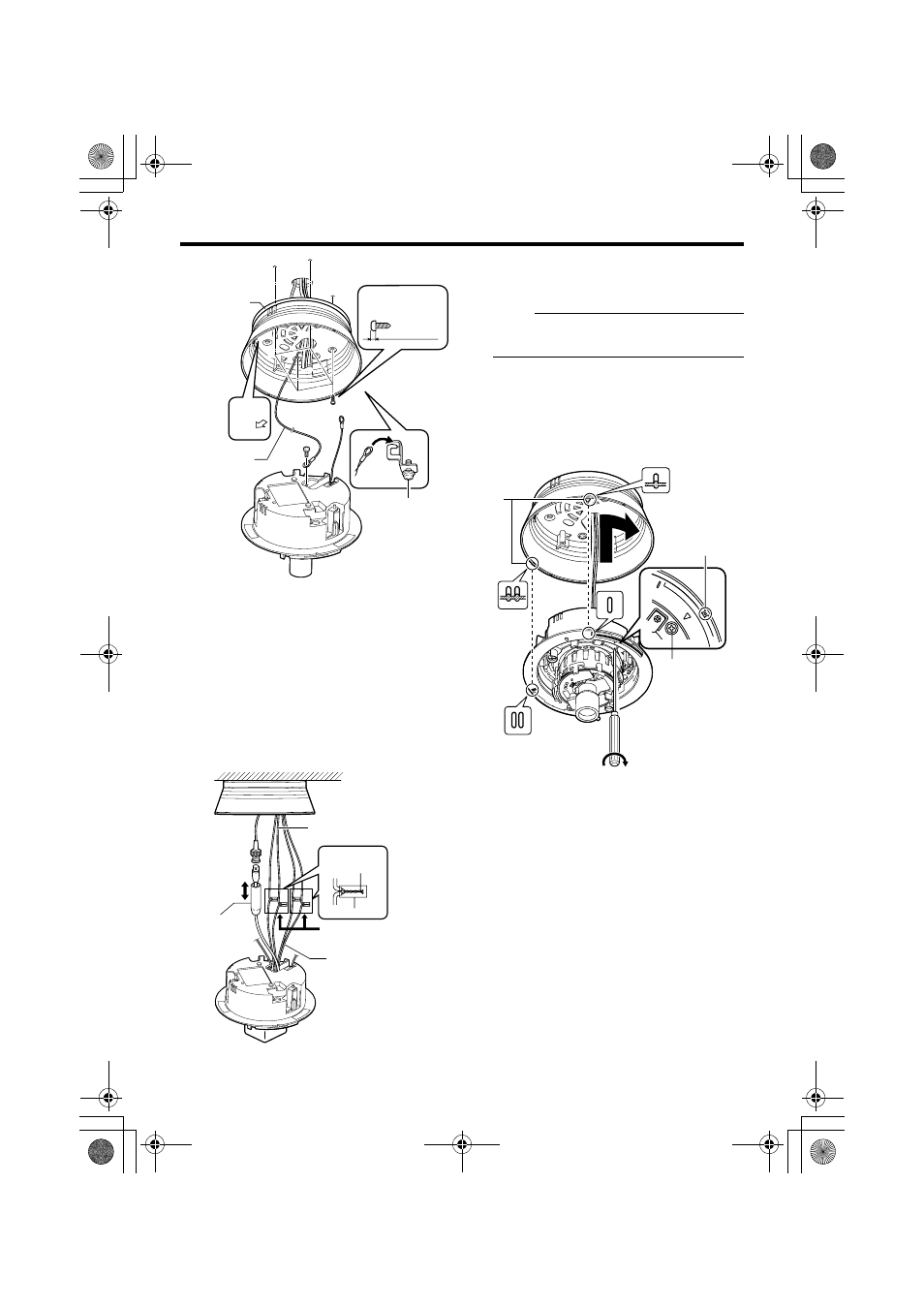

4.
Connect the video signal cable. (
Lower the protection cover and connect the
connectors. Upon connecting, restore the
protection cover to cover the connectors.
5.
Connect the input power supply cable.
(
6.
Install the Ferrite core (TK-C210FW only)
(
7.
Connect the alarm cable.
(TK-C215V12 only) (
8.
Wrap insulation tape around cables.
Ⅵ Mounting
1.
Align the position mark of the fastened
outer case with that of the camera unit.
NOTE:
When doing so, be careful not to catch the
cables in the outer case.
2.
Turn the camera unit in the clockwise
direction.
T When doing so, ensure that the
X mark is
visible. (See illustration below)
3.
Fasten the camera by tightening the camera
fastening screw.
Ⅵ Adjusting Images
After mounting is completed, adjust the
images while checking the actual image.
(
FRONT
UP
3.
2.
1.
Be sure to loosen
the screw.
*TK-C215V4 is used in the above illustration
Attach from
the ceiling
slab
Adaptor ring
Fall preven-
tion wire
(not supplied)
Outer case
mounting screws
Less than 3mm
4.
8.
5.7.
Protection
cover
*TK-C215V12 is used in the above illustration
Alarm signal cable
(TK-C215V12 only)
Solder or crimp
Insulation tape
Wrap with tape
Input power
supply cable
3.
2.
1.
Position
mark
Camera
fastening screw
*TK-C215V4 is used in the above illustration
T Check
